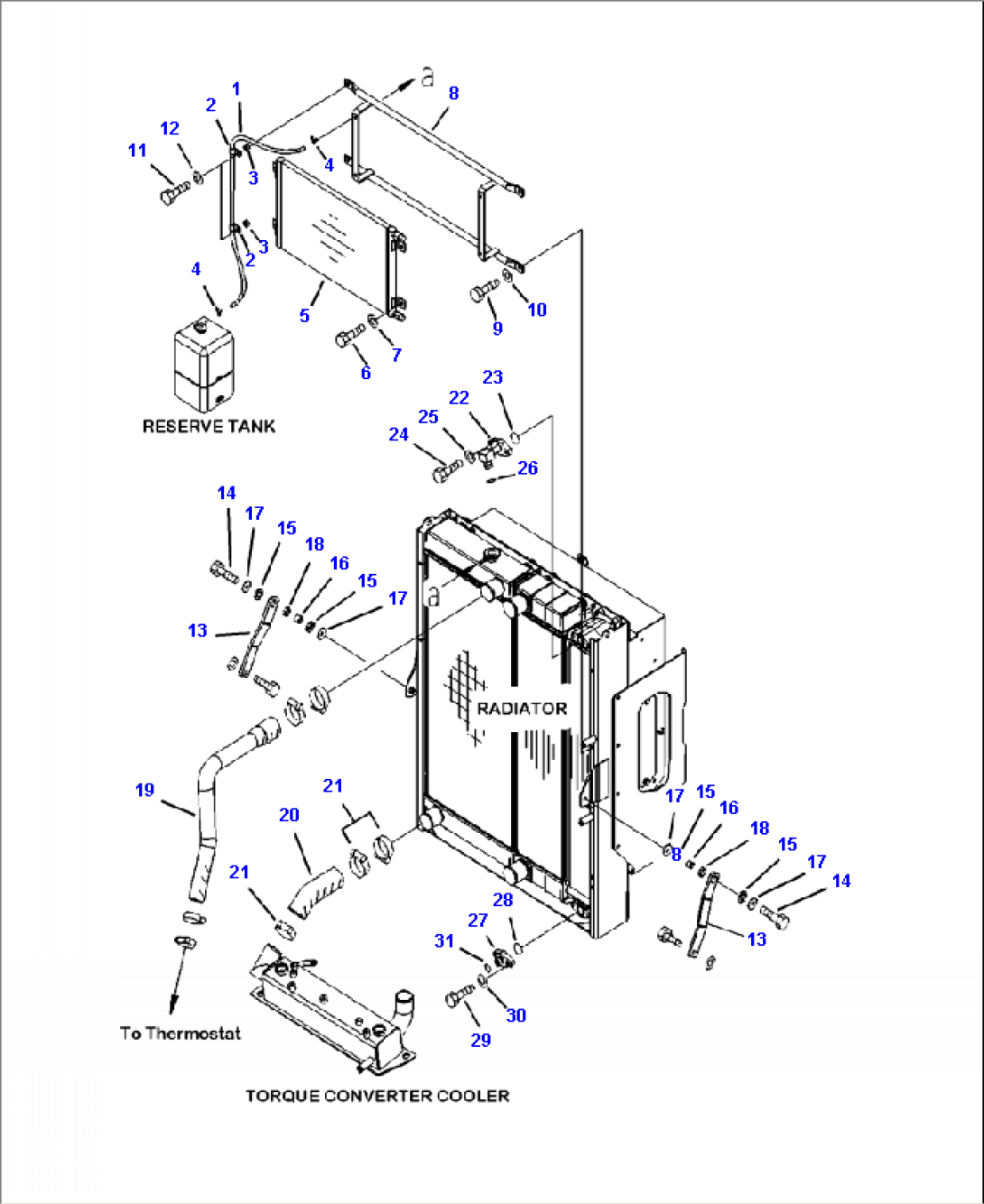

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-03-41461 | HOSE | ||
| 2 | 04434-51212 | CLIP | ||
| 3 | 362-60-12210 | SPACER | ||
| 4 | 206-03-43340 | CLIP | ||
| 5 | 56E-07-21132 | CONDENSER ASSEMBLY | ||
| 6 | 01010-80820 | BOLT | ||
| 7 | 01643-30823 | WASHER | ||
| 8 | 423-S62-4260 | BRACKET | ||
| 9 | 01010-81025 | BOLT | ||
| 10 | 01643-31032 | WASHER | ||
| 11 | 01010-81040 | BOLT | ||
| 12 | 01643-31032 | WASHER | ||
| 13 | 423-03-41490 | PLATE | ||
| 14 | 01010-D1245 | BOLT | ||
| 15 | 416-03-11260 | CUSHION | ||
| 16 | 416-03-11270 | SPACER | ||
| 17 | 421-03-31590 | WASHER | ||
| 18 | 416-03-11250 | CUSHION | ||
| 19 | 423-03-41770 | HOSE | ||
| 20 | 423-03-41580 | HOSE | ||
| 21 | 07289-00070 | CLAMP | ||
| 22 | 423-62-44730 | TUBE | ||
| 23 | 07000-13035 | O-RING | ||
| 24 | 01010-81040 | BOLT | ||
| 25 | 01643-31032 | WASHER | ||
| 26 | 02896-11015 | O-RING | ||
| 27 | 423-62-44740 | FLANGE | ||
| 28 | 07000-13035 | O-RING | ||
| 29 | 01010-81035 | BOLT | ||
| 30 | 01643-31032 | WASHER | ||
| 31 | 02896-11015 | O-RING |
