| Item | Part No. | Part Name | Qty | Serial No. |

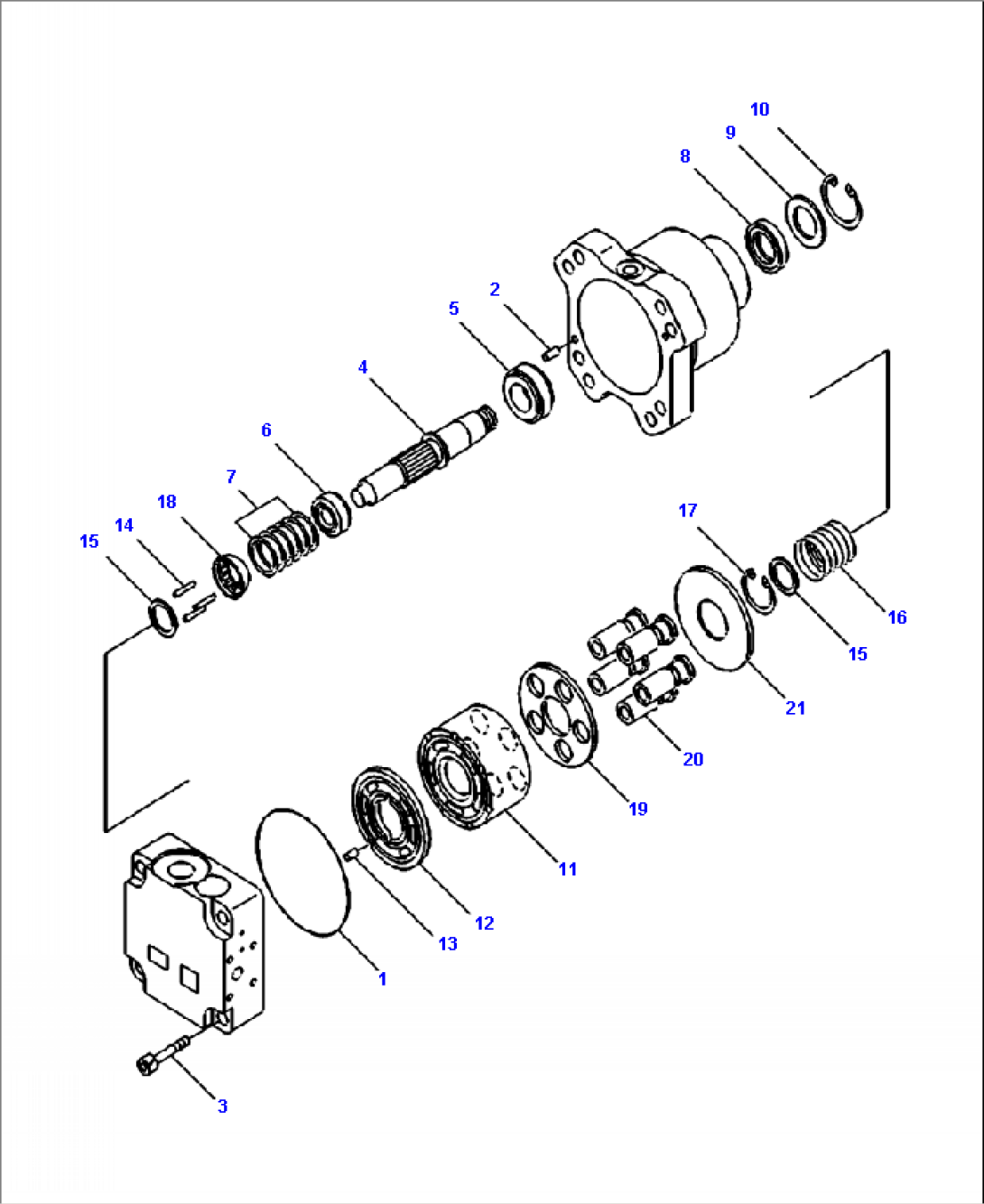

| MOTOR ASSEMBLY (SEE FIG. C0110-03A0) | A48001-- | |||
| 1 | 07000-E2110 | O-RING | A48001-- | |
| 2 | 04020-00616 | PIN, DOWEL | A48001-- | |
| 3 | 01252-61255 | BOLT | A48001-- | |
| 4 | 708-7S-12330 | SHAFT | A48001-- | |
| 5 | 708-7S-12140 | BEARING | A48001-- | |
| 6 | 708-7S-12220 | BEARING | A48001-- | |
| 7 | 708-7S-05110 | SHIM KIT | A48001-- | |
| (NSS) | SHIM, 0.85 MM | A48001-- | ||
| (NSS) | SHIM, 1.05 MM | A48001-- | ||
| (NSS) | SHIM, 1.25 MM | A48001-- | ||
| (NSS) | SHIM, 0.75 MM | A48001-- | ||
| (NSS) | SHIM, 0.95 MM | A48001-- | ||
| (NSS) | SHIM, 1.15 MM | A48001-- | ||
| 8 | 708-7T-12330 | SEAL, OIL | A48001-- | |
| 9 | 708-1S-11890 | SPACER | A48001-- | |
| 10 | 04065-04518 | RING, SNAP | A48001-- | |
| 11 | 708-7S-13120 | BLOCK, CYLINDER | A48001-- | |
| 12 | 708-7S-13250 | PLATE, VALVE | A48001-- | |
| 13 | 720-68-19610 | PIN | A48001-- | |
| 14 | 708-2L-23360 | PIN | A48001-- | |
| 15 | 708-7S-13530 | SPACER | A48001-- | |
| 16 | 708-7S-13560 | SPRING | A48001-- | |
| 17 | 04065-03212 | RING, SNAP | A48001-- | |
| 18 | 708-7S-13550 | GUIDE, RETAINER | A48001-- | |
| 19 | 708-7S-13360 | RETAINER, SHOE | A48001-- | |
| 20 | 708-7S-13350 | PISTON ASSEMBLY | A48001-- | |
| 21 | 708-7S-13420 | PLATE, THRUST | A48001-- | |
| F1 - THIS PART IS SUPPLIED AS PART OF THE ASSEMBLY. HOWEVER, IT IS AVAILABLE AS AN INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS ONLY. |
