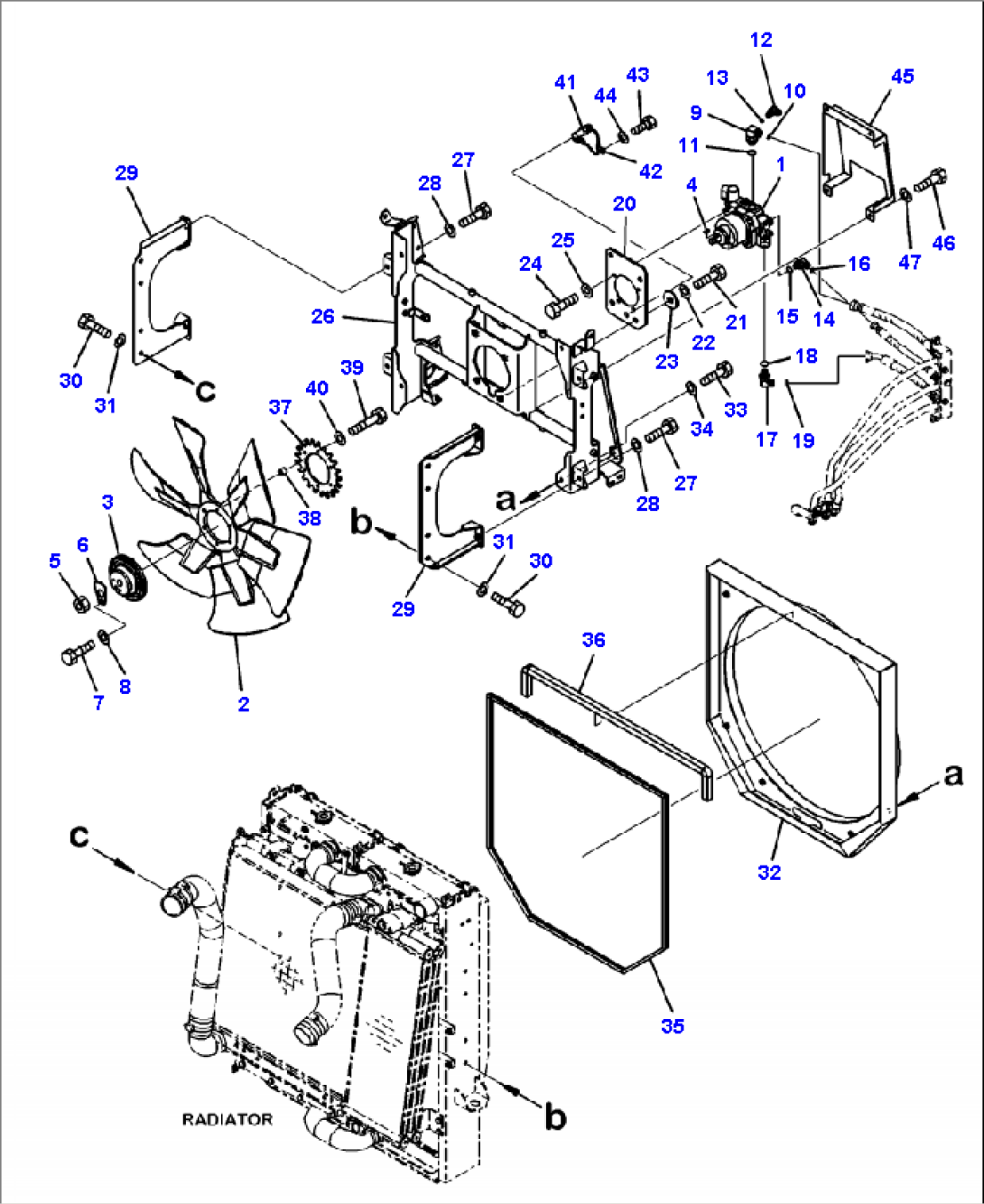

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | MOTOR ASSEMBLY (SEE FIG. C0110-03A0) | A47001-- | ||
| 2 | 600-645-7850 | FAN, ENGINE | A47001-- | |
| 3 | 423-03-31710 | BOSS | A47001-- | |
| 4 | 04010-00722 | KEY | A47001-- | |
| 5 | 01583-12012 | NUT | A47001-- | |
| 6 | 154-03-72270 | LOCK | A47001-- | |
| 7 | 01010-81020 | BOLT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 421-62-41510 | ELBOW | A47001-- | |
| 10 | 02896-11015 | O-RING | A47001-- | |
| 11 | 07002-12434 | O-RING | A47001-- | |
| 12 | 799-101-5220 | NIPPLE | A47001-- | |
| 13 | 07002-11023 | O-RING | A47001-- | |
| 14 | 02782-10420 | ELBOW | A47001-- | |
| 15 | 07002-11823 | O-RING | A47001-- | |
| 16 | 02896-11012 | O-RING | A47001-- | |
| 17 | 02782-10522 | ELBOW | A47001-- | |
| 18 | 07002-12434 | O-RING | A47001-- | |
| 19 | 02896-11015 | O-RING | A47001-- | |
| 20 | 423-62-41860 | PLATE | A47001-- | |
| 21 | 01010-81230 | BOLT | A47001-- | |
| 22 | 01643-31232 | WASHER | A47001-- | |
| 23 | 419-43-17920 | WASHER | A47001-- | |
| 24 | 01010-81230 | BOLT | A47001-- | |
| 25 | 01643-31232 | WASHER | A47001-- | |
| 26 | 421-62-41810 | BRACKET | A47001-- | |
| 27 | 01010-D1230 | BOLT | A47001-- | |
| 28 | 01643-71232 | WASHER | A47001-- | |
| 29 | 421-03-41240 | BRACKET | A47001-- | |
| 30 | 01010-81230 | BOLT | A47001-- | |
| 31 | 01643-31232 | WASHER | A47001-- | |
| 32 | 421-03-41840 | SHROUD | A47001-- | |
| 33 | 01010-D1245 | BOLT | A47001-- | |
| 34 | 01643-71232 | WASHER | A47001-- | |
| 35 | 421-03-41720 | SEAL | A47001-- | |
| 36 | 421-03-41510 | SEAL, BONDED | A47001-- | |
| 37 | 421-62-41870 | PLATE | A47001-- | |
| 38 | 175-79-83760 | SPACER | A47001-- | |
| 39 | 01010-81060 | BOLT | A47001-- | |
| 40 | 01643-31032 | WASHER | A47001-- | |
| 41 | 7861-93-2330 | SENSOR | A47001-- | |
| 42 | 04434-50510 | CLIP | A47001-- | |
| 43 | 01010-81016 | BOLT | A47001-- | |
| 44 | 01643-31032 | WASHER | A47001-- | |
| 45 | 421-62-42510 | COVER | A47001-- | |
| 46 | 01010-D1020 | BOLT | A47001-- | |
| 47 | 01643-71032 | WASHER | A47001-- |
