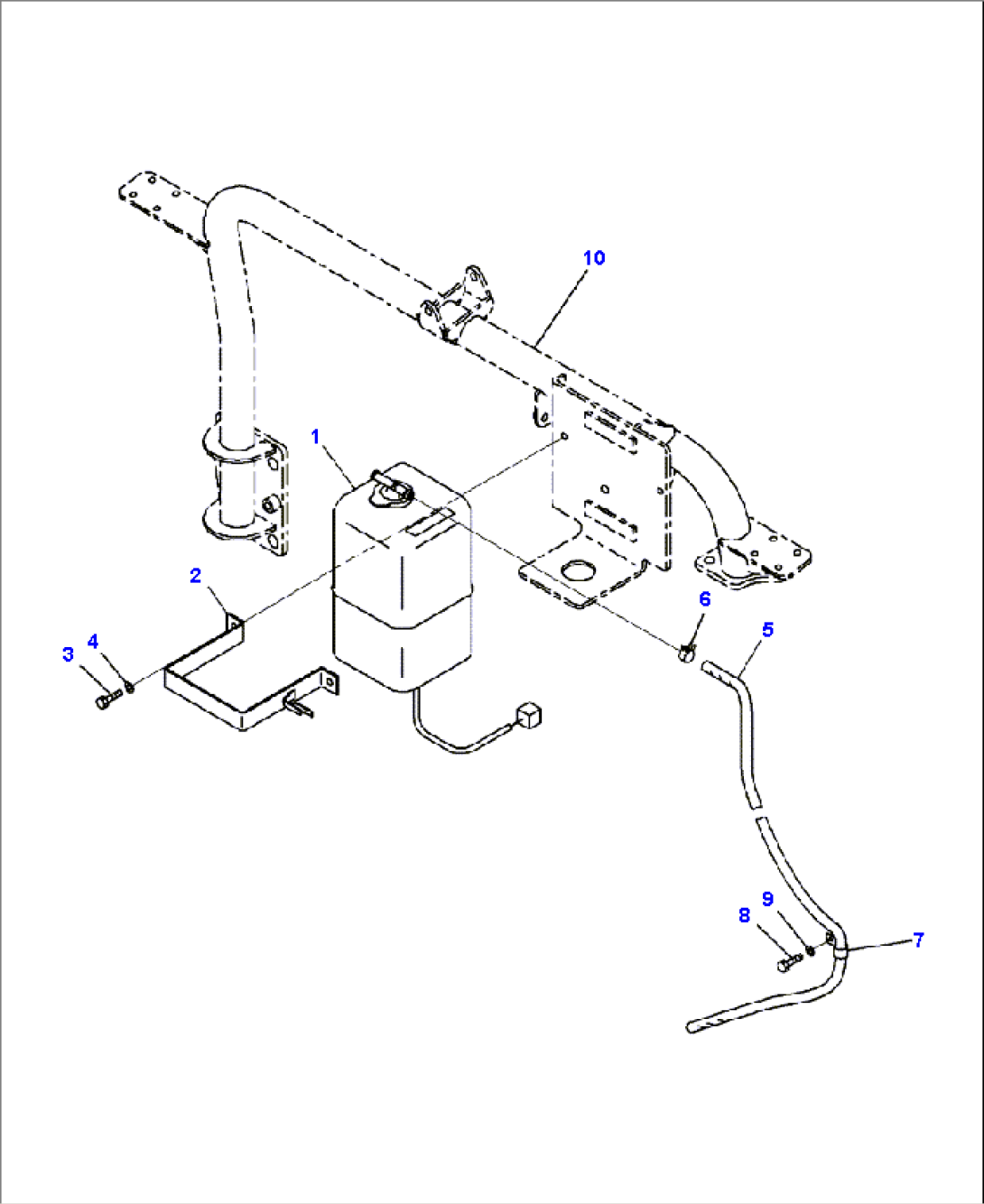

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 419-03-21320 | TANK, RESERVOIR | A11001-- | |
| 421-03-22170 | CAP | A11001-- | ||
| 2 | 423-03-11340 | BRACKET | A11001-- | |
| 3 | 01010-80825 | BOLT | A11001-- | |
| 4 | 01643-30823 | WASHER | A11001-- | |
| 5 | 418-03-21230 | HOSE | A11001-- | |
| 6 | 11Y-09-11120 | CLIP | A11001-- | |
| 7 | 04434-51210 | CLIP | A11001-- | |
| 8 | 01010-81020 | BOLT | A11001-- | |
| 9 | 01643-31032 | WASHER | A11001-- | |
| 10 | BRACKET (SEE FIG. M3141-02A0A ) | A11001-- |
