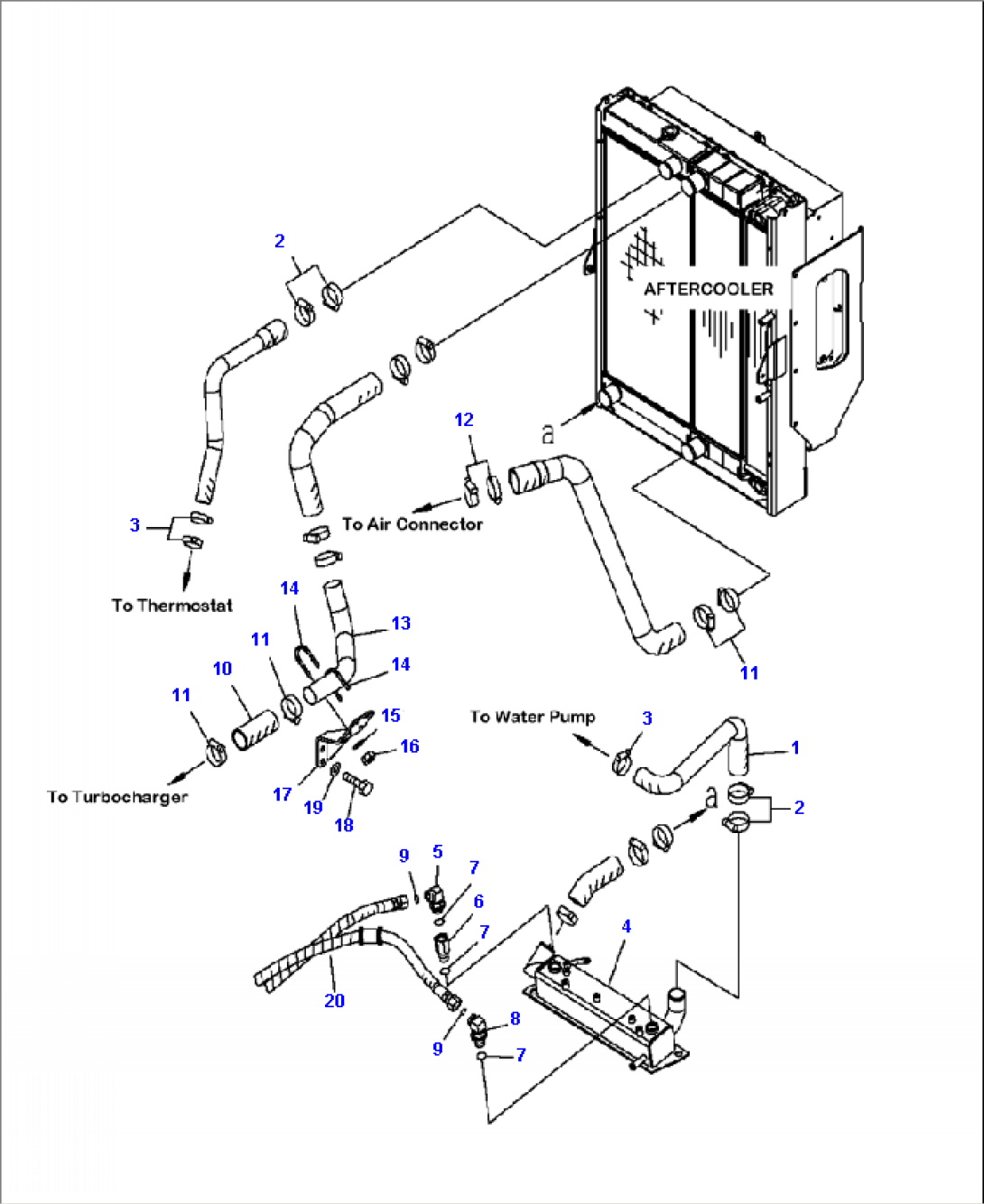

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-03-41760 | HOSE | ||
| 2 | 07289-00070 | CLAMP | ||
| 3 | 07289-00055 | CLAMP | ||
| 4 | 423-03-41610 | COOLER, HYDRAULIC OIL | ||
| 5 | 207-62-71410 | ELBOW | ||
| 6 | 21W-62-43110 | JOINT | ||
| 7 | 07002-23334 | O-RING | ||
| 8 | 207-62-71410 | ELBOW | ||
| 9 | 421-09-31140 | O-RING | ||
| 10 | 423-03-41850 | HOSE | ||
| 11 | 07299-00070 | CLAMP | ||
| 12 | 07299-00080 | CLAMP | ||
| 13 | 423-03-41740 | TUBE | ||
| 14 | 203-01-67580 | CLIP | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 01597-01009 | NUT | ||
| 17 | 423-03-41870 | PLATE | ||
| 18 | 01010-81035 | BOLT | ||
| 19 | 01643-31032 | WASHER | ||
| 20 | HOSE ( SEE FIG. F4300-02A0 ) |
