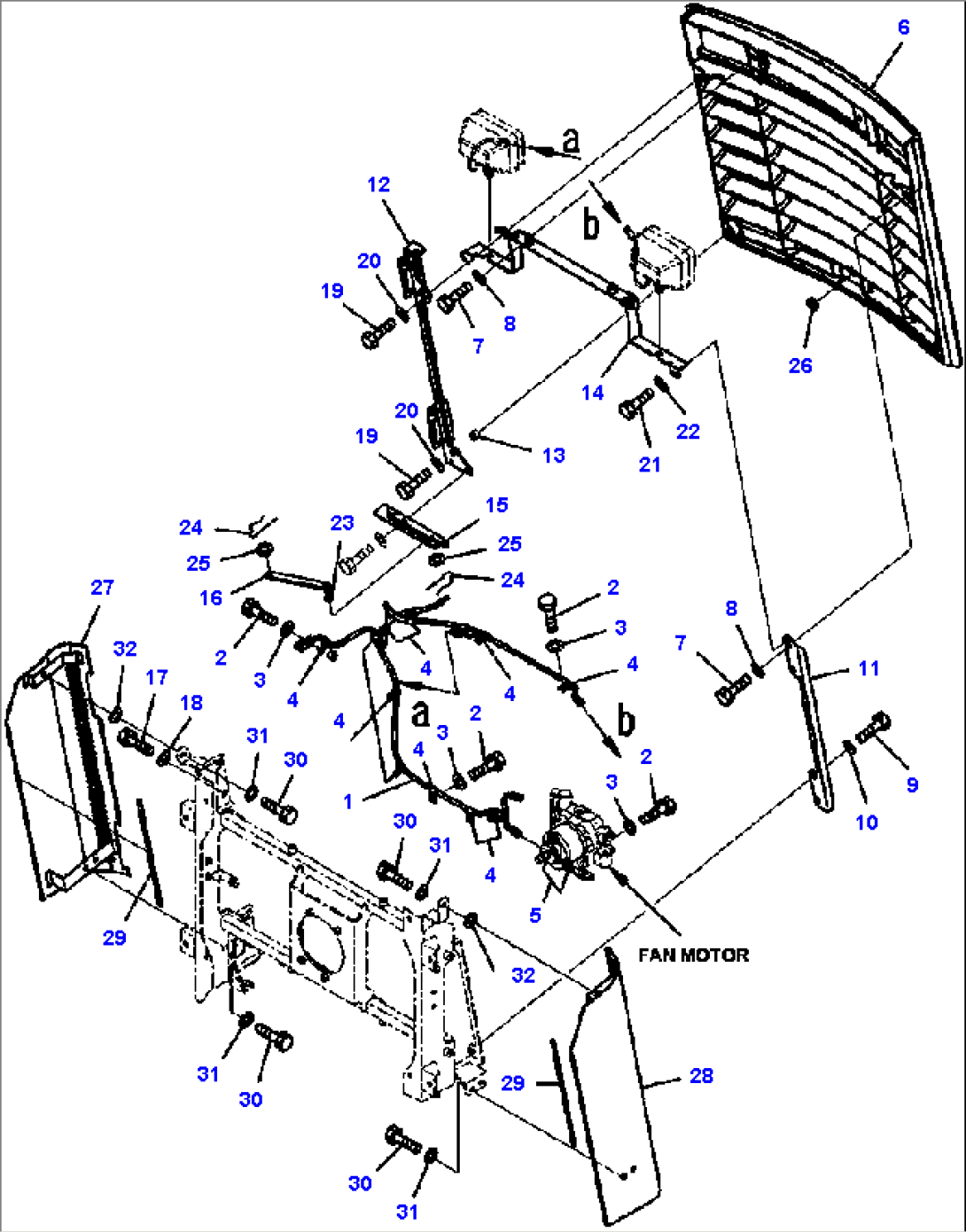

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-43210 | WIRING HARNESS, GRILLE | A45001-- | |
| 2 | 01010-D1016 | BOLT | A45001-- | |
| 3 | 01643-71032 | WASHER | A45001-- | |
| 4 | 04434-51012 | CLIP | A45001-- | |
| 5 | 04434-50510 | CLIP | A45001-- | |
| 6 | 424-54-31823 | GRILLE | A45001-- | |
| 7 | 01010-81020 | BOLT | A45001-- | |
| 8 | 01643-31032 | WASHER | A45001-- | |
| 9 | 01010-D1020 | BOLT | A45001-- | |
| 10 | 01643-71032 | WASHER | A45001-- | |
| 11 | 421-54-42220 | BRACKET | A45001-- | |
| 12 | 421-54-42230 | BRACKET | A45001-- | |
| 13 | 195-01-14540 | COLLAR | A45001-- | |
| 14 | 421-06-41130 | BRACKET | A45001-- | |
| 15 | 421-54-42721 | PLATE | A45001-- | |
| 16 | 421-54-42711 | STOPPER | A45001-- | |
| 17 | 01010-81225 | BOLT | A45001-- | |
| 18 | 01643-31232 | WASHER | A45001-- | |
| 19 | 01010-81035 | BOLT | A45001-- | |
| 20 | 01643-31032 | WASHER | A45001-- | |
| 21 | 01010-80820 | BOLT | A45001-- | |
| 22 | 01643-30823 | WASHER | A45001-- | |
| 23 | 08037-01008 | GROMMET | A45001-- | |
| 24 | 04052-21038 | PIN | A45001-- | |
| 25 | 01640-21016 | WASHER | A45001-- | |
| 26 | 09415-02110 | CAP | A45001-- | |
| 27 | 421-54-42241 | COVER, R.H. | A45001-- | |
| 28 | 421-54-42251 | COVER, L.H. | A45001-- | |
| 29 | 21W-46-47121 | SEAL | A45001-- | |
| 30 | 01010-D1020 | BOLT | A45001-- | |
| 31 | 01643-71032 | WASHER | A45001-- | |
| 32 | 01643-31032 | WASHER | A45001-- |
