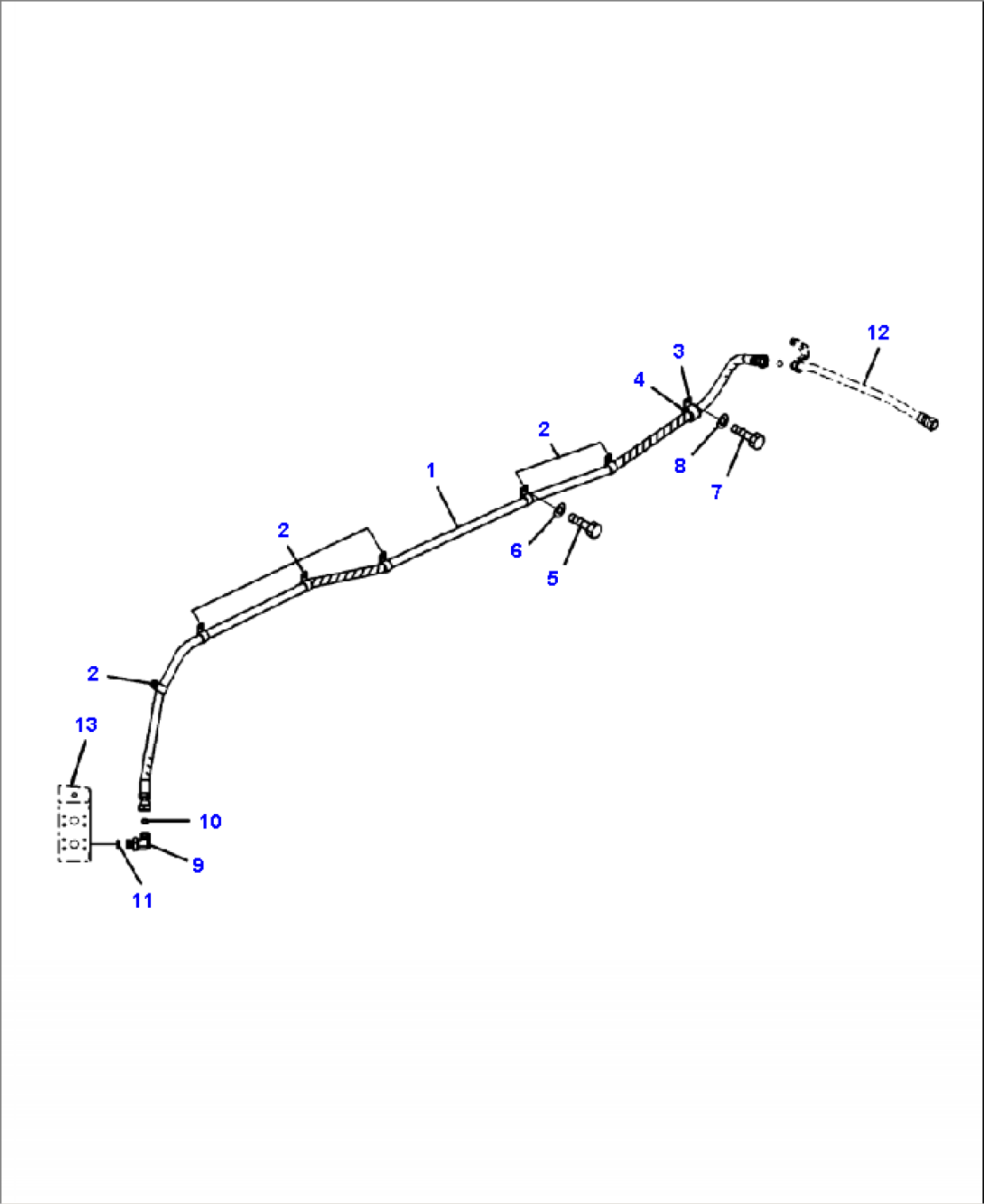

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-45820 | HOSE, 2920 MM - TO HYDRAULIC TANK | A47001-- | |
| 2 | 04434-52212 | CLIP | A47001-- | |
| 3 | 04434-53212 | CLIP | A47001-- | |
| 4 | 07095-20625 | CUSHION | A47001-- | |
| 5 | 01010-81020 | BOLT | A47001-- | |
| 6 | 01643-31032 | WASHER | A47001-- | |
| 7 | 01010-D1030 | BOLT | A47001-- | |
| 8 | 01643-71032 | WASHER | A47001-- | |
| 9 | 02782-10522 | ELBOW | A47001-- | |
| 10 | 02896-11015 | O-RING | A47001-- | |
| 11 | 07002-12434 | O-RING | A47001-- | |
| 12 | TUBE (SEE FIG. C0110-11A0) | A47001-- | ||
| 13 | BLOCK (SEE FIG. H4200-09A0) | A47001-- |
