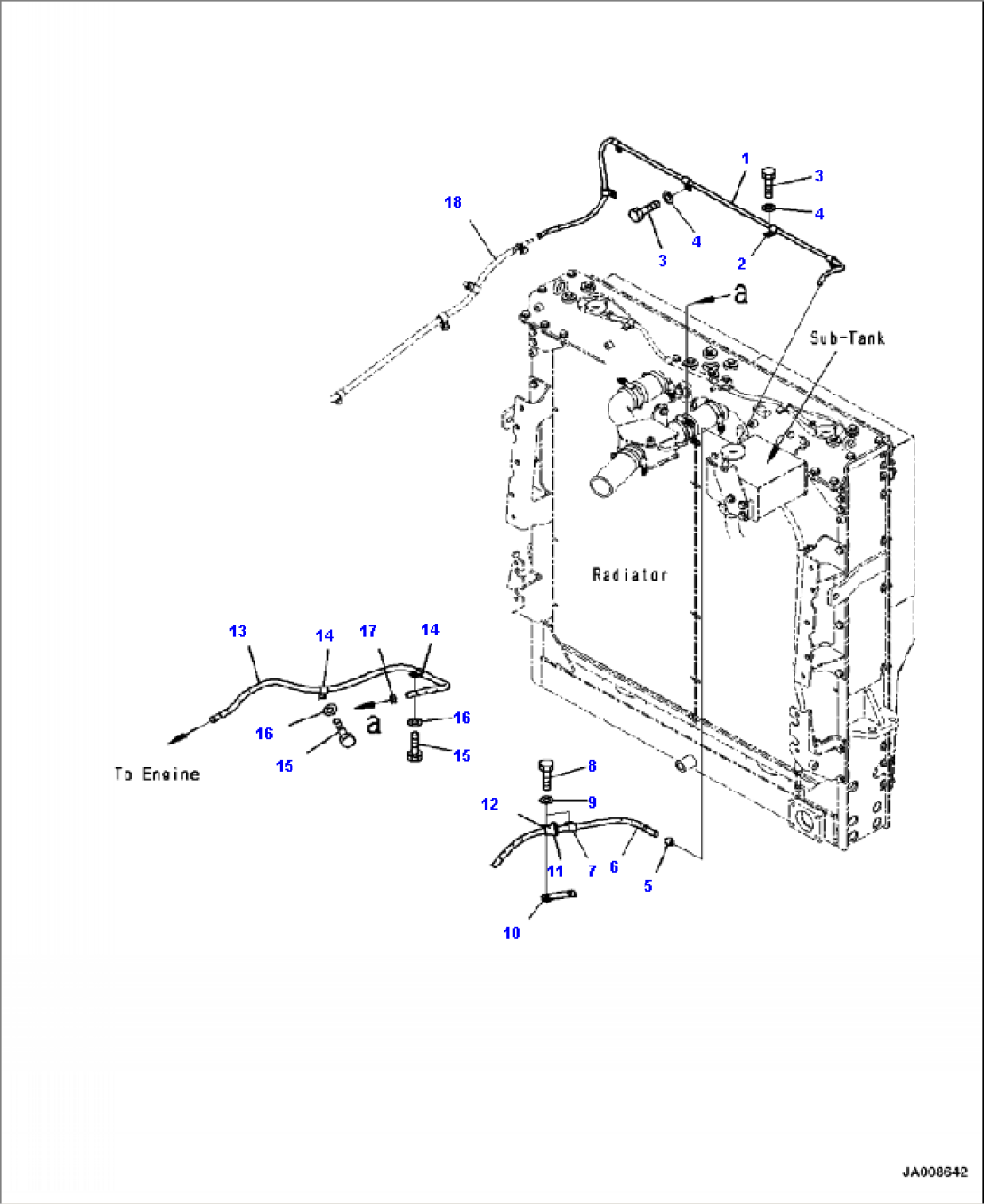

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-41650 | HOSE | ||
| 2 | 04434-51210 | CLIP | ||
| 3 | 01010-81020 | BOLT | ||
| 4 | 01643-31032 | WASHER | ||
| 5 | 423-03-11531 | TUBE | ||
| 6 | 425-03-41680 | HOSE | ||
| 7 | 04434-51612 | CLIP | ||
| 8 | 01010-81020 | BOLT | ||
| 9 | 01643-31032 | WASHER | ||
| 10 | 425-03-41880 | PLATE | ||
| 11 | 08037-11825 | GROMMET | ||
| 12 | 04434-52112 | CLIP | ||
| 13 | 425-03-41640 | HOSE | ||
| 14 | 04434-51612 | CLIP | ||
| 15 | 01010-81020 | BOLT | ||
| 16 | 01643-31032 | WASHER | ||
| 17 | 11Y-09-11140 | CLIP | ||
| 18 | HOSE |
