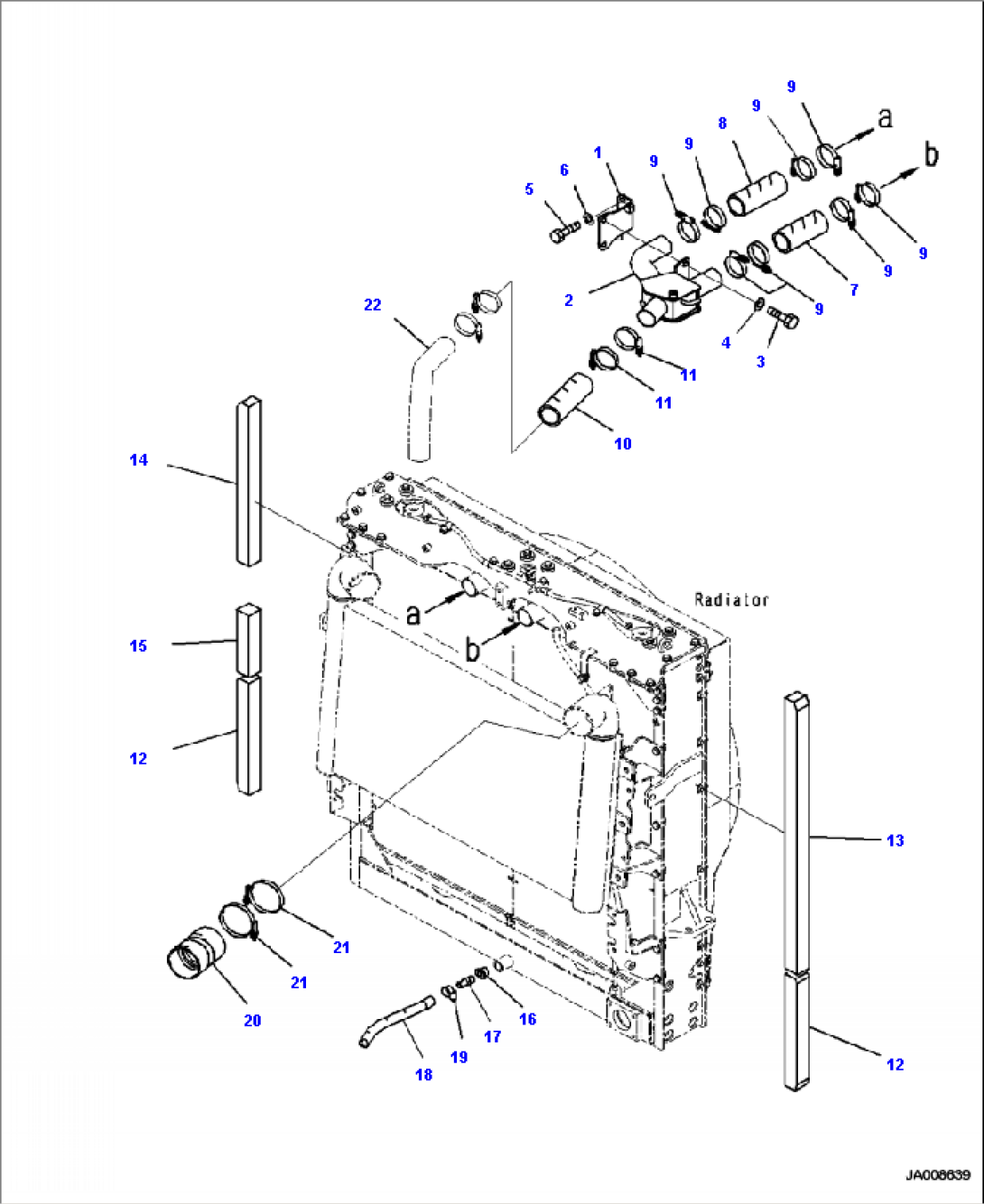

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-41450 | BRACKET | ||
| 2 | 425-03-31432 | TUBE | ||
| 3 | 01010-81230 | BOLT | ||
| 4 | 01643-31232 | WASHER | ||
| 5 | 01010-81225 | BOLT | ||
| 6 | 01643-31232 | WASHER | ||
| 7 | 07260-25818 | HOSE | ||
| 8 | 07260-25816 | HOSE | ||
| 9 | 07299-00080 | CLAMP | ||
| 10 | 07260-25820 | HOSE | ||
| 11 | 07299-00080 | CLAMP | ||
| 12 | 425-54-46120 | SHEET | ||
| 13 | 425-54-46190 | SHEET, LEFT | ||
| 14 | 425-54-46180 | SHEET, RIGHT | ||
| 15 | 425-54-46170 | SHEET | ||
| 16 | 07326-10604 | ADAPTER | ||
| 17 | 425-03-31940 | NIPPLE | ||
| 18 | 425-03-41370 | HOSE | ||
| 19 | 07289-00035 | CLAMP | ||
| 20 | 6212-11-4410 | HOSE | ||
| 21 | 07299-00105 | CLAMP, HOSE | ||
| 22 | TUBE (SEE FIG. C0110-14A0 ) |
