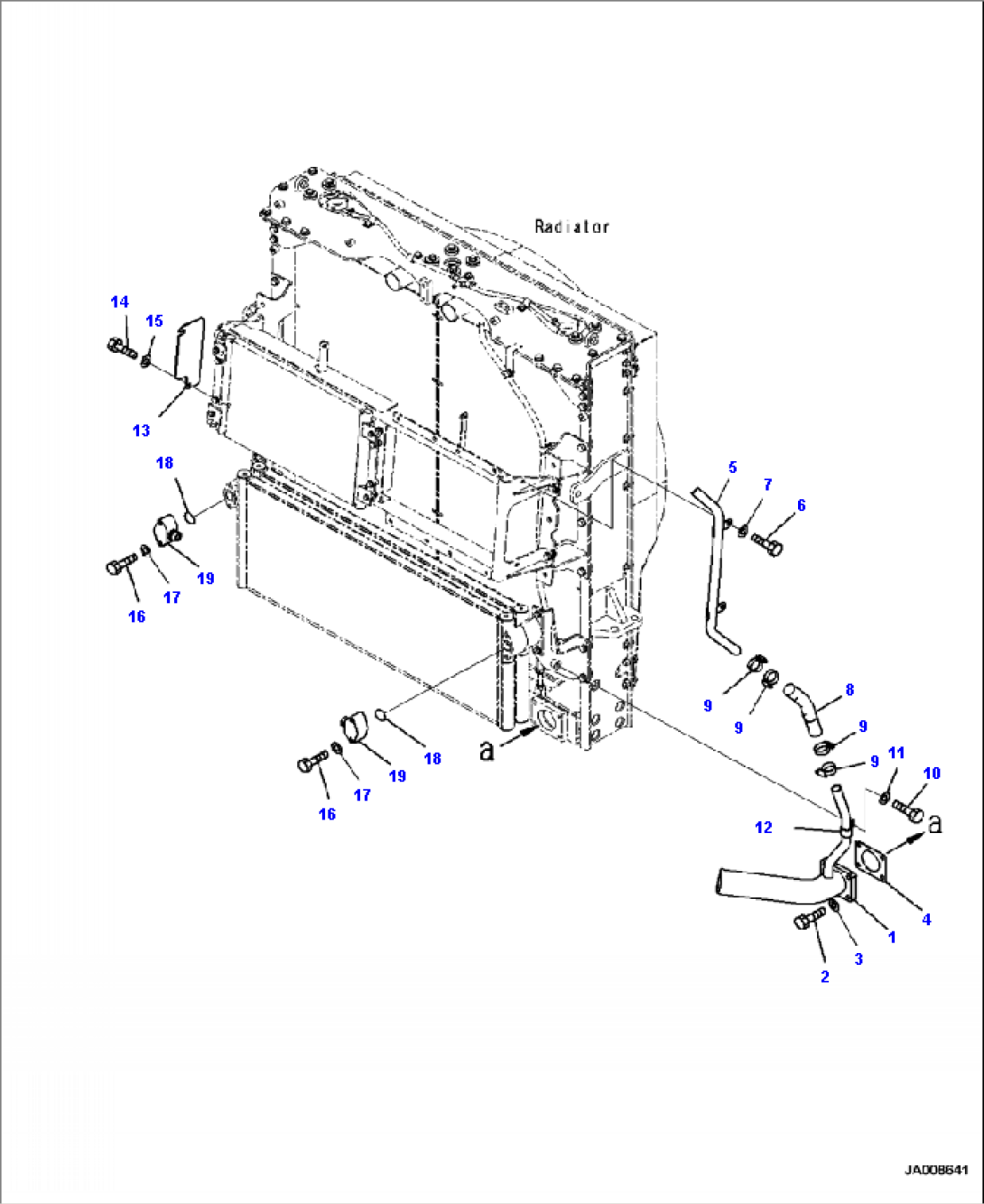

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-03-43640 | TUBE | ||
| 2 | 01010-81235 | BOLT | ||
| 3 | 01643-31232 | WASHER | ||
| 4 | 425-03-33630 | GASKET | ||
| 5 | 425-03-41980 | TUBE | ||
| 6 | 01010-81025 | BOLT | ||
| 7 | 01643-31032 | WASHER | ||
| 8 | 425-03-41840 | HOSE | ||
| 9 | 07289-00035 | CLAMP | ||
| 10 | 01010-81220 | BOLT | ||
| 11 | 01643-31232 | WASHER | ||
| 12 | 04434-52712 | CLIP | ||
| 13 | 425-03-41970 | PLATE | ||
| 14 | 01010-81025 | BOLT | ||
| 15 | 01643-31032 | WASHER | ||
| 16 | 01010-81060 | BOLT | ||
| 17 | 01643-31032 | WASHER | ||
| 18 | 07000-13035 | O-RING | ||
| 19 | 425-03-47360 | ELBOW |
