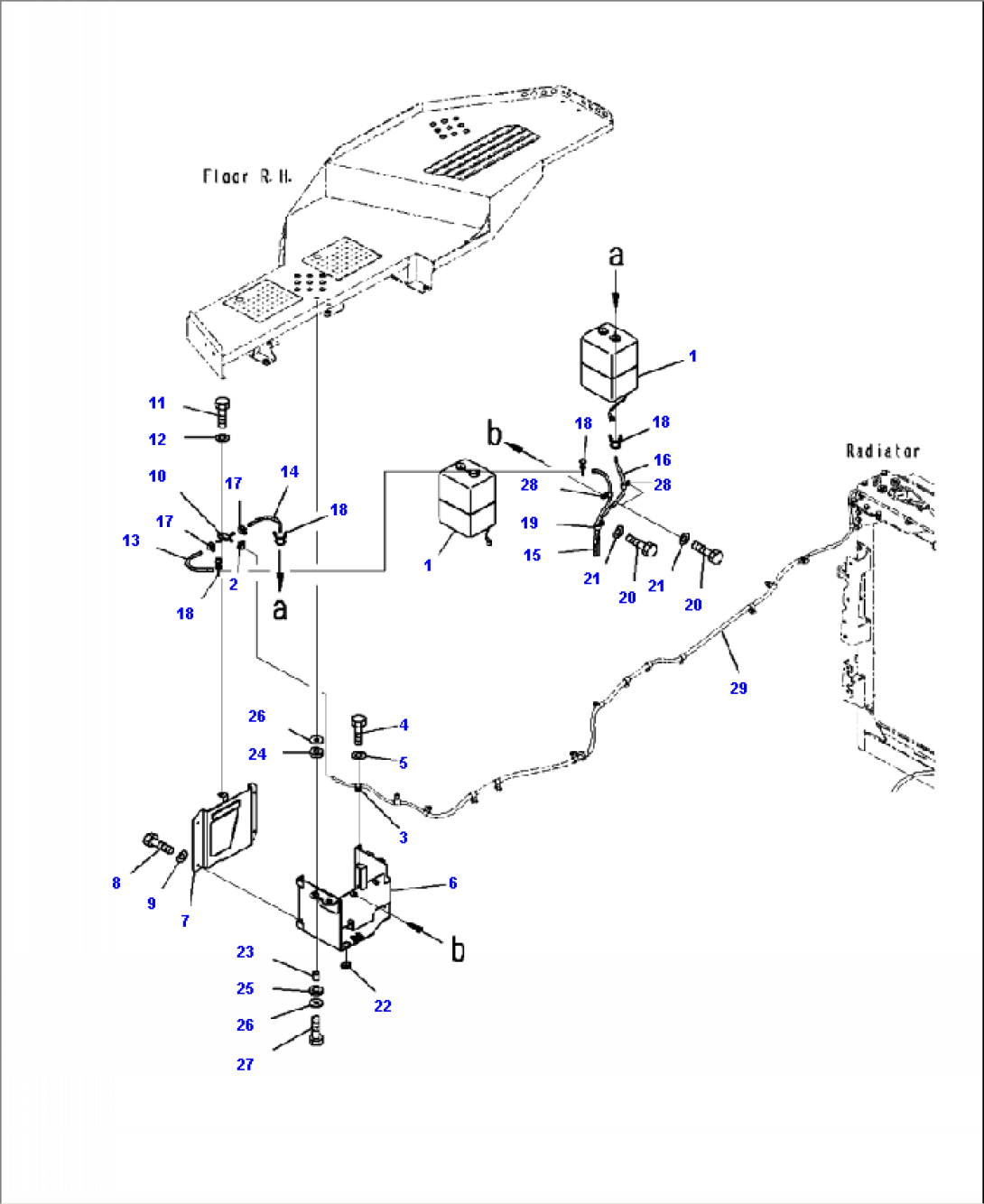

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-03-51340 | TANK | ||
| 2 | 07285-00115 | CLIP | ||
| 3 | 04434-51210 | CLIP | ||
| 4 | 01010-81020 | BOLT | ||
| 5 | 01643-31032 | WASHER | ||
| 6 | 425-03-43540 | BRACKET | ||
| 7 | 425-03-43550 | BRACKET | ||
| 8 | 01010-D1020 | BOLT | ||
| 9 | 01643-71032 | WASHER | ||
| 10 | 423-03-51351 | JOINT | ||
| 11 | 01010-D1035 | BOLT | ||
| 12 | 01643-71032 | WASHER | ||
| 13 | 421-03-41810 | HOSE | ||
| 14 | 421-03-41810 | HOSE | ||
| 15 | 208-03-58290 | HOSE | ||
| 16 | 425-03-43580 | HOSE | ||
| 17 | 07285-00115 | CLIP | ||
| 18 | 206-03-43340 | CLIP | ||
| 19 | 04435-51212 | CLIP | ||
| 20 | 01010-D1020 | BOLT | ||
| 21 | 01643-71032 | WASHER | ||
| 22 | 144-06-12150 | GROMMET | ||
| 23 | 417-54-13470 | SPACER | ||
| 24 | 419-06-43150 | CUSHION | ||
| 25 | 419-06-43160 | CUSHION | ||
| 26 | 419-43-17920 | WASHER | ||
| 27 | 01010-D1250 | BOLT | ||
| 28 | 04434-51212 | CLIP | ||
| 29 | HOSE (SEE FIG. C0110-12A1 ) |
