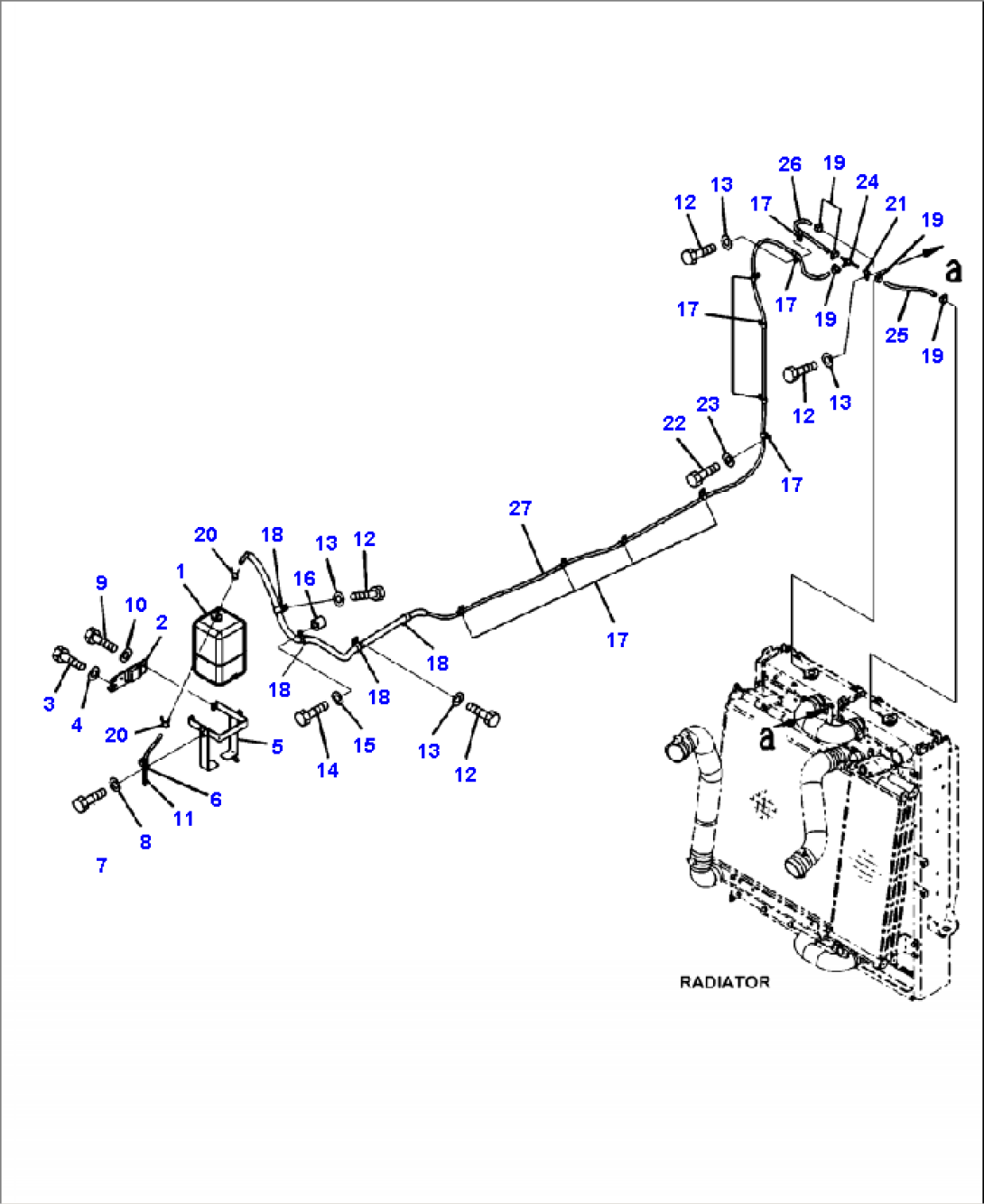

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-03-31181 | TANK | A47001-- | |
| 2 | 421-03-41610 | BRACKET | A47001-- | |
| 3 | 01010-81025 | BOLT | A47001-- | |
| 4 | 01643-31032 | WASHER | A47001-- | |
| 5 | 424-03-41440 | BRACKET | A47001-- | |
| 6 | 04434-51212 | CLIP | A47001-- | |
| 7 | 01010-81020 | BOLT | A47001-- | |
| 8 | 01643-31032 | WASHER | A47001-- | |
| 9 | 01010-80820 | BOLT | A47001-- | |
| 10 | 01643-30823 | WASHER | A47001-- | |
| 11 | 417-03-21150 | HOSE, 650 MM | A47001-- | |
| 12 | 01010-81020 | BOLT | A47001-- | |
| 13 | 01643-31032 | WASHER | A47001-- | |
| 14 | 01010-81040 | BOLT | A47001-- | |
| 15 | 01643-31032 | WASHER | A47001-- | |
| 16 | 175-79-83760 | SPACER | A47001-- | |
| 17 | 04434-51212 | CLIP | A47001-- | |
| 18 | 04434-52312 | CLIP | A47001-- | |
| 19 | 07285-00115 | CLIP | A47001-- | |
| 20 | 206-03-43340 | CLIP | A47001-- | |
| 21 | 04434-50812 | CLIP | A47001-- | |
| 22 | 01010-D1030 | BOLT | A47001-- | |
| 23 | 01643-71032 | WASHER | A47001-- | |
| 24 | 421-03-41340 | JOINT | A47001-- | |
| 25 | 421-03-41810 | HOSE, 250 MM | A47001-- | |
| 26 | 421-03-41820 | HOSE, 400 MM | A47001-- | |
| 27 | 421-03-41831 | HOSE | A47001-- |
