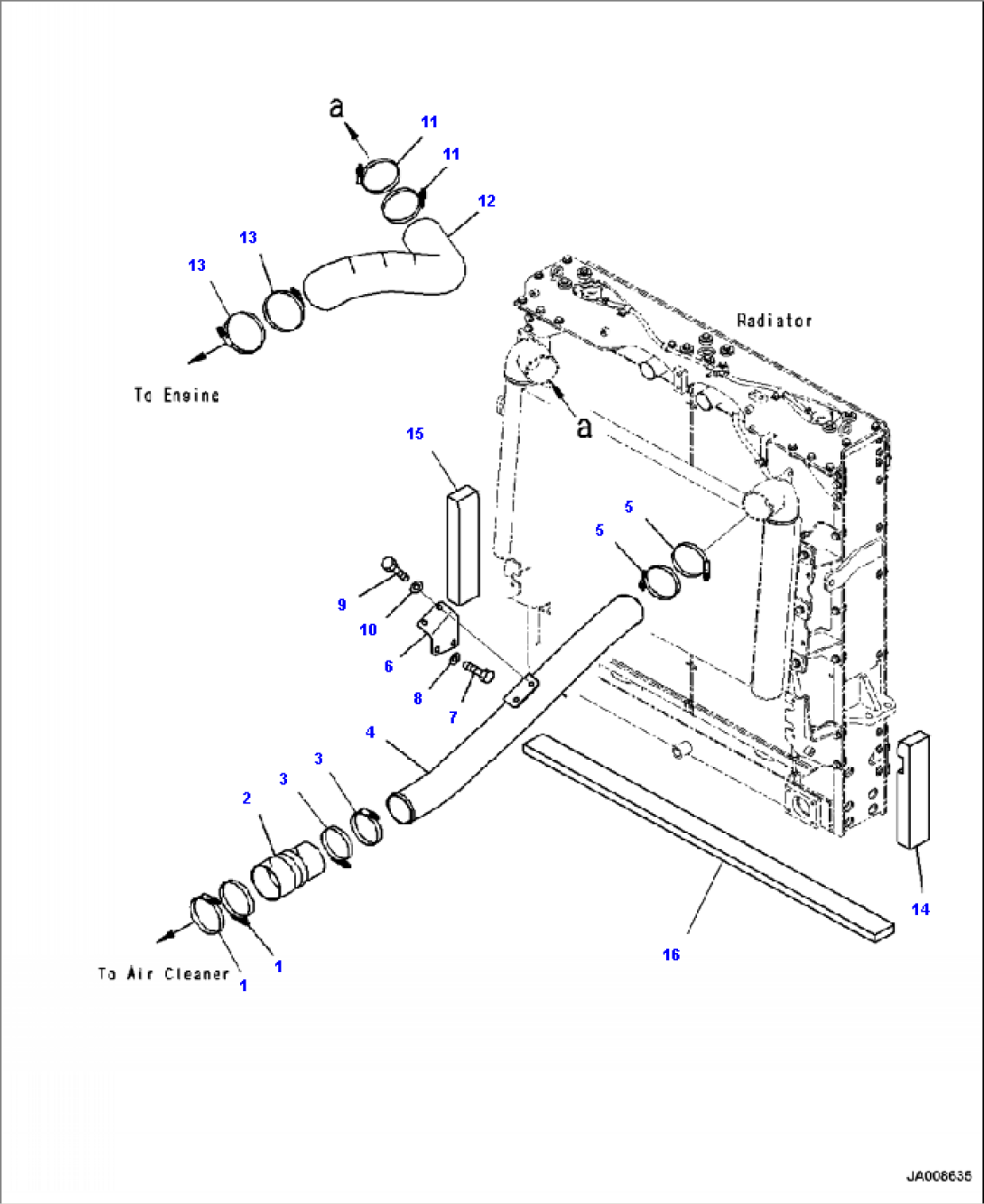

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07299-00120 | CLAMP | ||
| 2 | 425-03-43790 | HOSE | ||
| 3 | 07299-00105 | CLAMP, HOSE | ||
| 4 | 425-03-43520 | TUBE | ||
| 5 | 07299-00105 | CLAMP, HOSE | ||
| 6 | 425-03-41670 | BRACKET | ||
| 7 | 01010-81230 | BOLT | ||
| 8 | 01643-31232 | WASHER | ||
| 9 | 01010-81230 | BOLT | ||
| 10 | 01643-31232 | WASHER | ||
| 11 | 07299-00105 | CLAMP, HOSE | ||
| 12 | 425-03-43530 | HOSE | ||
| 13 | 07299-00120 | CLAMP | ||
| 14 | 425-54-46130 | SHEET | ||
| 15 | 425-54-46140 | SHEET | ||
| 16 | 425-54-46150 | SHEET |
