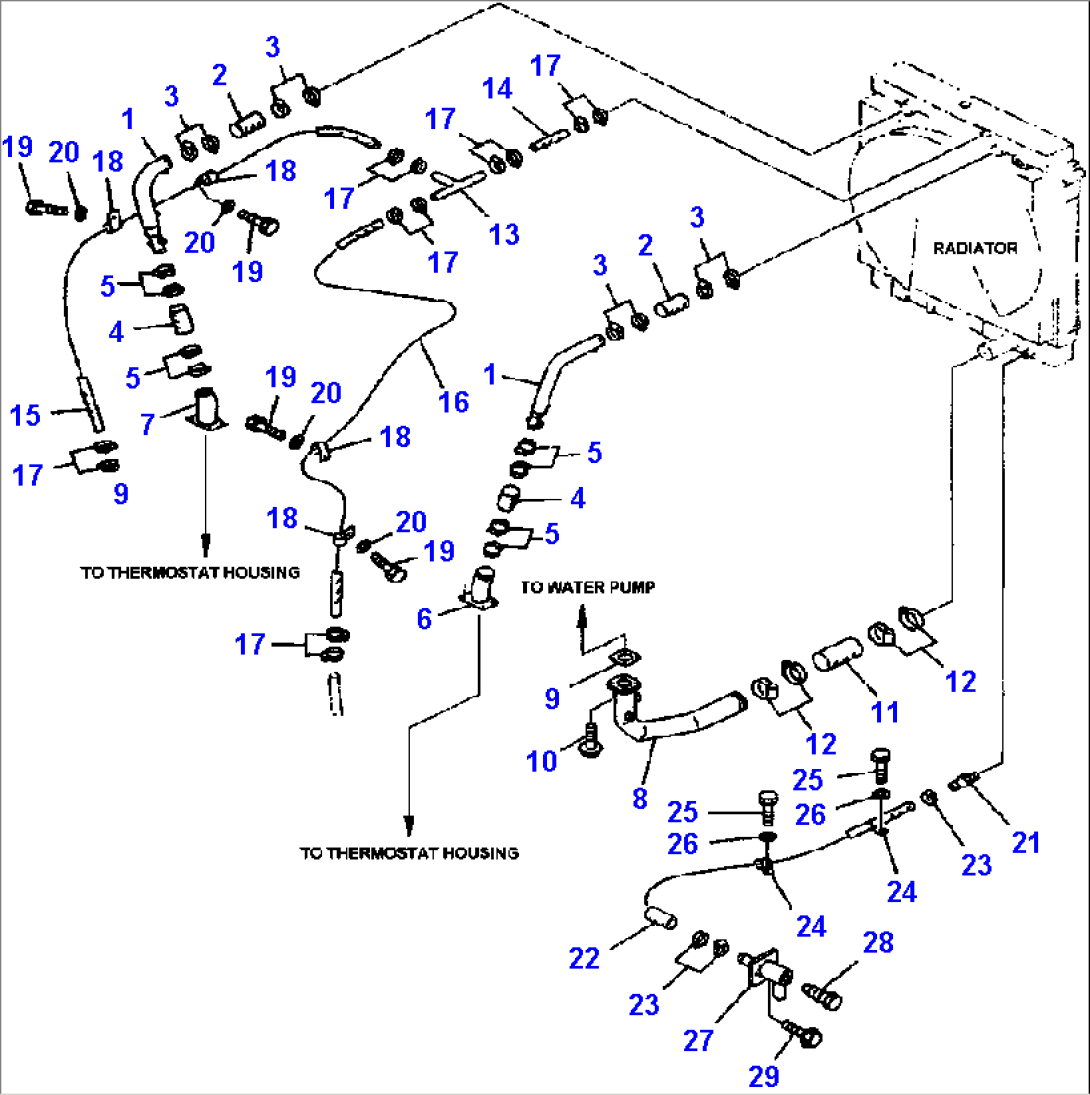

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-03-22310 | TUBE | A50001-- | |
| 2 | 427-03-11430 | HOSE | A50001-- | |
| 3 | 07289-00095 | CLAMP | A50001-- | |
| 4 | 07260-25820 | HOSE | A50001-- | |
| 5 | 07289-00070 | CLAMP | A50001-- | |
| 6 | WATER OUTLET CONNECTION, LEFT (SEE FIG. A5109-A7A5 ) | A50001-- | ||
| 7 | ||||
| 7 | WATER OUTLET CONNECTION, RIGHT (SEE FIG. A5109-A7A5 ) | A50001-- | ||
| 8 | ||||
| 8 | 427-03-22340 | TUBE | A50001-- | |
| 9 | 6215-61-7360 | GASKET | A50001-- | |
| 10 | 01435-01230 | BOLT | A50001-- | |
| 11 | 07260-29928 | HOSE | A50001-- | |
| 12 | 07289-00120 | CLAMP | A50001-- | |
| 13 | 427-03-12460 | TUBE | A50001-- | |
| 14 | 07260-20906 | HOSE | A50001-- | |
| 15 | 07261-20918 | HOSE | A50001-- | |
| 16 | 07261-20914 | HOSE | A50001-- | |
| 17 | 07281-00197 | CLAMP | A50001-- | |
| 18 | 08036-01814 | CLIP | A50001-- | |
| 19 | 01010-81020 | BOLT | A50001-- | |
| 20 | 01643-31032 | WASHER | A50001-- | |
| 21 | 6137-81-3231 | NIPPLE | A50001-- | |
| 22 | 427-03-22290 | HOSE | A50001-- | |
| 23 | CD 8 419 | CLAMP | A50001-- | |
| 24 | 08036-23014 | CLIP | A50001-- | |
| 25 | 01010-81020 | BOLT | A50001-- | |
| 26 | 01643-51032 | WASHER | A50001-- | |
| 27 | 426-01-11231 | TUBE | A50001-- | |
| 28 | 424-01-11110 | PLUG | A50001-- | |
| 29 | 01435-01030 | BOLT | A50001-- |
