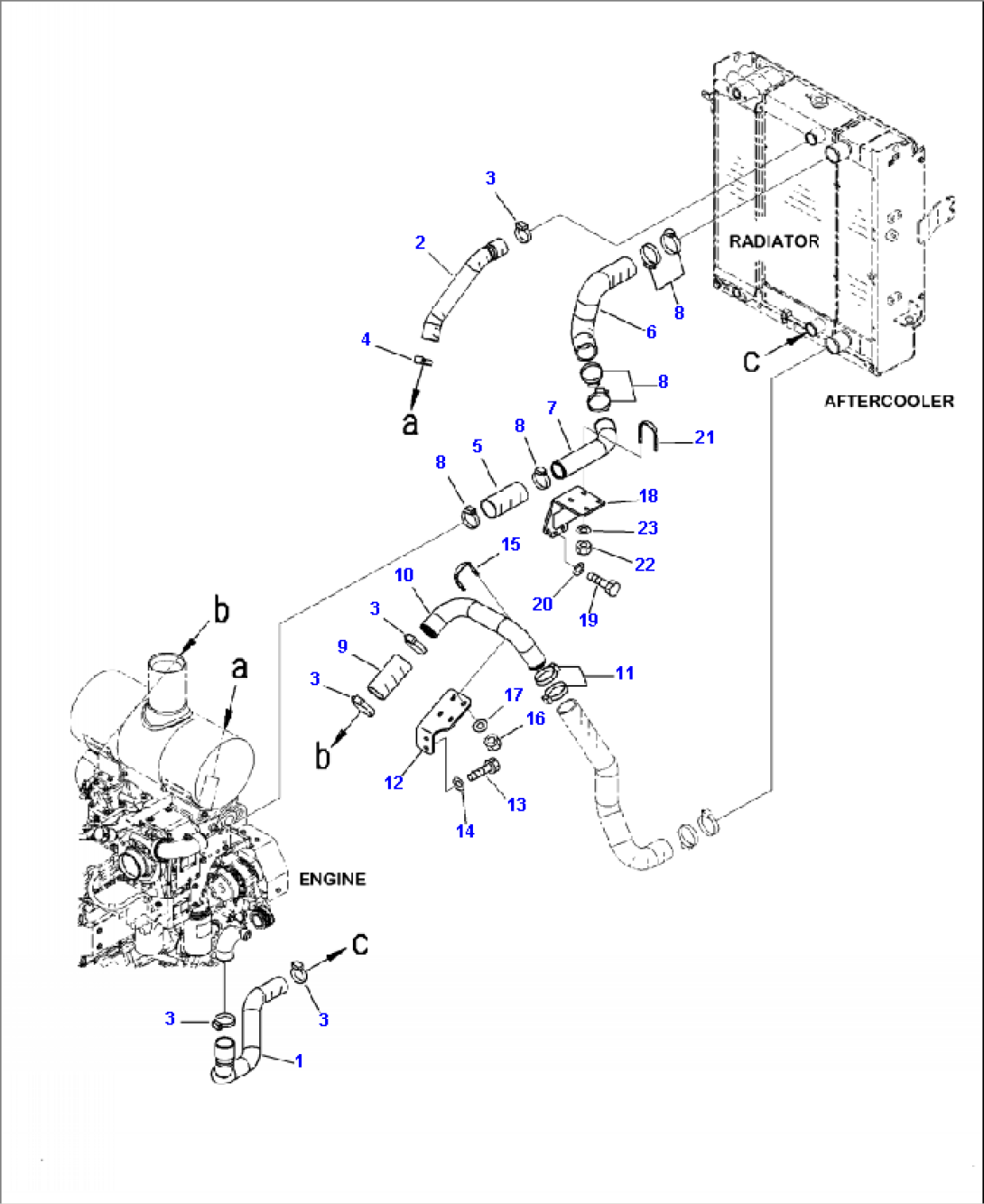

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-03-48221 | HOSE | A76001-- | |
| 2 | 418-03-48211 | HOSE | A76001-- | |
| 3 | 07289-00070 | CLAMP | A76001-- | |
| 4 | 07289-00055 | CLAMP | A76001-- | |
| 5 | 418-03-32180 | HOSE, 150 MM | A76001-- | |
| 6 | 418-03-48231 | HOSE | A76001-- | |
| 7 | 418-03-42170 | TUBE | A76001-- | |
| 8 | 07299-00070 | CLAMP | A76001-- | |
| 9 | 418-03-42160 | HOSE, 150 MM | A76001-- | |
| 10 | 418-03-42150 | TUBE | A76001-- | |
| 11 | 690 106 C1 | CLAMP | A76001-- | |
| 12 | 418-03-42180 | BRACKET | A76001-- | |
| 13 | 01010-81035 | BOLT | A76001-- | |
| 14 | 01643-31032 | WASHER | A76001-- | |
| 15 | 203-01-67580 | CLIP | A76001-- | |
| 16 | 01597-01009 | NUT | A76001-- | |
| 17 | 01643-31032 | WASHER | A76001-- | |
| 18 | 418-03-42190 | BRACKET | A76001-- | |
| 19 | 01010-81040 | BOLT | A76001-- | |
| 20 | 01643-31032 | WASHER | A76001-- | |
| 21 | 203-01-67580 | CLIP | A76001-- | |
| 22 | 01597-01009 | NUT | A76001-- | |
| 23 | 01643-31032 | WASHER | A76001-- |
