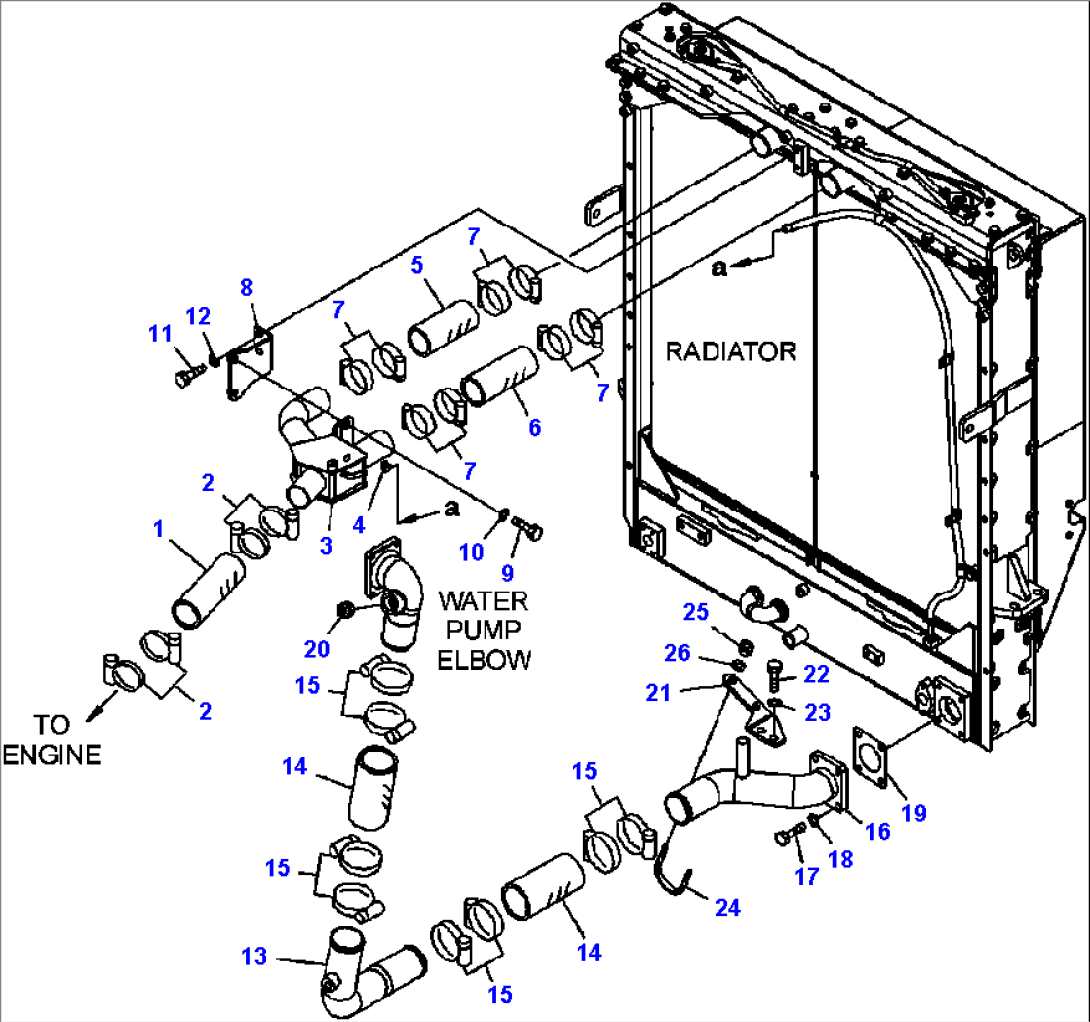

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07260-25822 | HOSE | A92001-- | |
| 2 | 07299-00070 | CLAMP | A92001-- | |
| 3 | 425-03-31432 | TUBE | A92001-- | |
| 4 | 11Y-09-11140 | CLIP | A92001-- | |
| 5 | 07260-25816 | HOSE | A92001-- | |
| 6 | 07260-25818 | HOSE | A92001-- | |
| 7 | 07299-00070 | CLAMP | A92001-- | |
| 8 | 425-03-31451 | BRACKET | A92001-- | |
| 9 | 01010-81230 | BOLT | A92001-- | |
| 10 | 01643-31232 | WASHER | A92001-- | |
| 11 | 01010-81225 | BOLT | A92001-- | |
| 12 | 01643-31232 | WASHER | A92001-- | |
| 13 | 425-03-33621 | TUBE | A92001-- | |
| 14 | 07260-27418 | HOSE | A92001-- | |
| 15 | 07299-00095 | CLAMP | A92001-- | |
| 16 | 425-03-33641 | TUBE | A92001-- | |
| 17 | 01010-81235 | BOLT | A92001-- | |
| 18 | 01643-31232 | WASHER | A92001-- | |
| 19 | 425-03-33630 | GASKET | A92001-- | |
| 20 | 02720-41616 | PLUG | A92001-- | |
| 21 | 425-03-33651 | BRACKET | A92001-- | |
| 22 | 01010-81025 | BOLT | A92001-- | |
| 23 | 01643-31032 | WASHER | A92001-- | |
| 24 | 07283-37663 | CLIP | A92001-- | |
| 25 | 01597-01009 | NUT | A92001-- | |
| 26 | 01643-31032 | WASHER | A92001-- |
