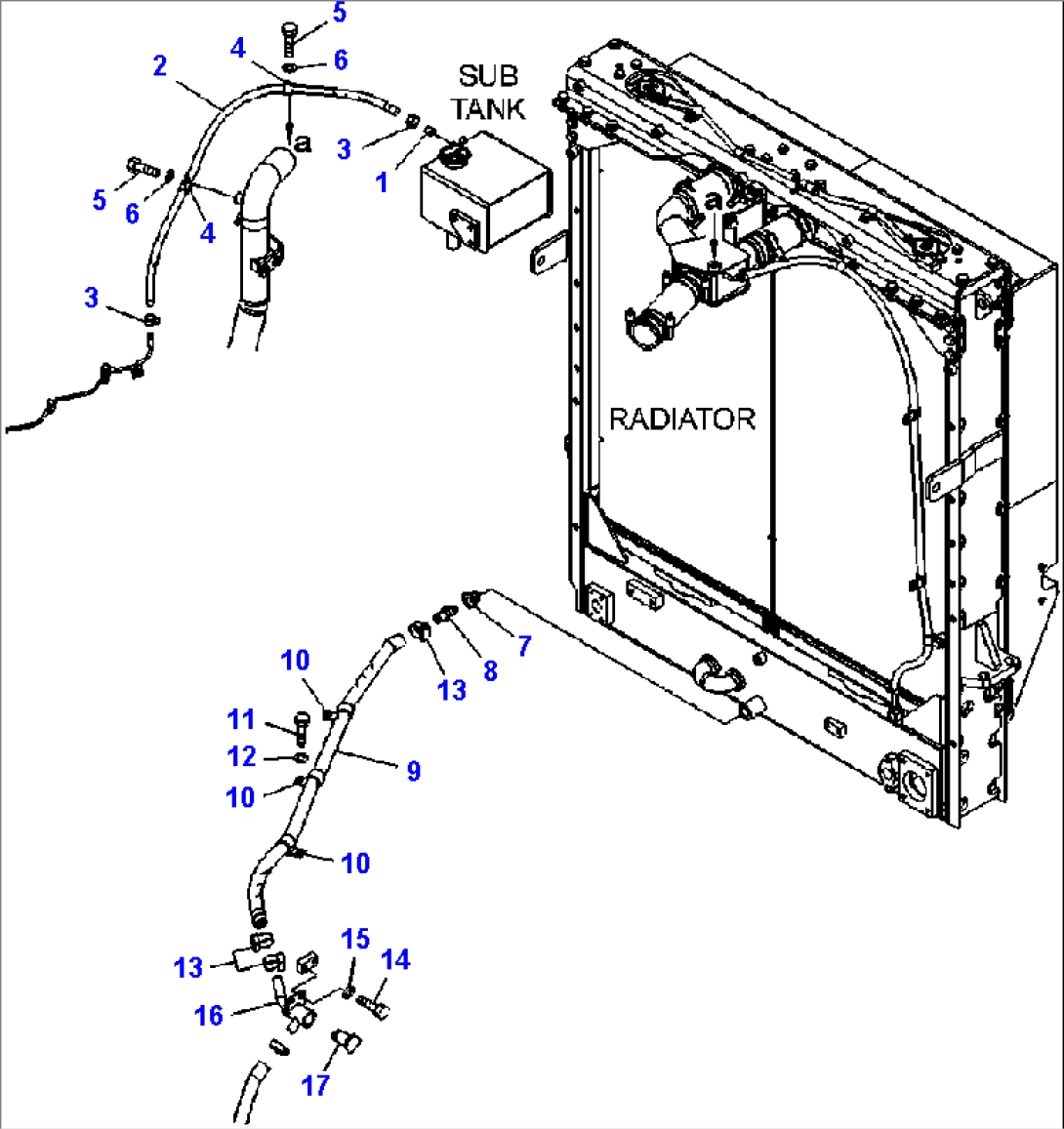

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 423-03-11531 | PIPE | A92001-- | |
| 2 | 425-03-31681 | HOSE | A92001-- | |
| 3 | 11Y-09-11140 | CLIP | A92001-- | |
| 4 | 04434-51612 | CLIP | A92001-- | |
| 5 | 01010-81020 | BOLT | A92001-- | |
| 6 | 01643-31032 | WASHER | A92001-- | |
| 7 | 07326-10604 | ADAPTER | A92001-- | |
| 8 | 425-03-31940 | NIPPLE | A92001-- | |
| 9 | 425-03-31371 | HOSE | A92001-- | |
| 10 | 04434-52712 | CLIP | A92001-- | |
| 11 | 01010-81020 | BOLT | A92001-- | |
| 12 | 01643-31032 | WASHER | A92001-- | |
| 13 | 07289-00035 | CLAMP | A92001-- | |
| 14 | 01010-81025 | BOLT | A92001-- | |
| 15 | 01643-31032 | WASHER | A92001-- | |
| 16 | 425-03-31550 | TUBE | A92001-- | |
| 17 | 424-01-11110 | PLUG | A92001-- |
