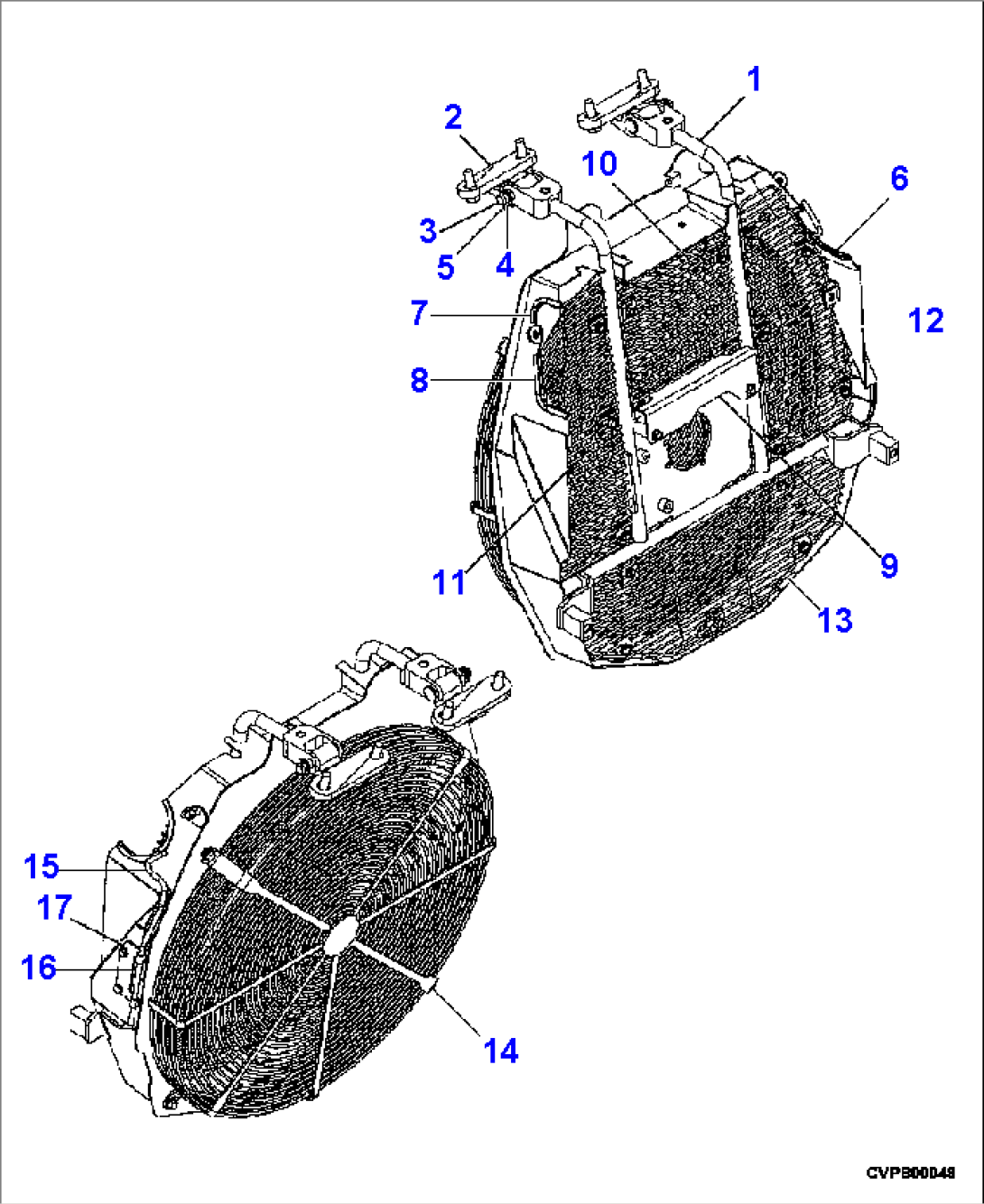

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-03-12862 | GUARD, FAN | B10001- | |
| 01010-81650 | BOLT, MOUNT FAN GUARD | B10001- | ||
| 01643-31645 | WASHER | B10001- | ||
| 2 | 12Y-03-14111 | BRACKET, GUARD HINGE | B10001- | |
| 12Y-03-14A10 | BLOCK | B10001- | ||
| 12Y-03-14A20 | PLATE | B10001- | ||
| 3 | 12Y-03-12110 | PIN, GUARD HINGE | B10001- | |
| 4 | 21W-914-3390 | WASHER | B10001- | |
| 5 | 04050-14030 | PIN, COTTER | B10001- | |
| 6 | 12Y-03-13640 | SEAL, RH | B10001- | |
| 7 | 12Y-03-13650 | SEAL, LH - UPPER | B10001- | |
| 8 | 12Y-03-13660 | SEAL, LH - LOWER | B10001- | |
| 9 | 12Y-03-11532 | COVER, FAN SENSOR | B10001- | |
| 01435-01020 | BOLT, MOUNT COVER | B10001- | ||
| 10 | 12Y-03-12971 | GUARD, FINGER - UPPER CENTER | B10001- | |
| 01435-01020 | BOLT, MOUNT FINGER GUARD | B10001- | ||
| 11 | 12Y-03-13112 | GUARD, FINGER - UPPER LH | B10599- | |
| \0\12Y-03-13111 | GUARD, FINGER - UPPER LH | B10001-B10598 | ||
| 01435-01020 | BOLT, MOUNT FINGER GUARD | B10001- | ||
| 12 | 12Y-03-12982 | GUARD, FINGER - UPPER RH | B10599- | |
| \0\12Y-03-12981 | GUARD, FINGER - UPPER RH | B10001-B10598 | ||
| 01435-01020 | BOLT, MOUNT FINGER GUARD | B10001- | ||
| 13 | 12Y-03-12992 | GUARD, FINGER - LOWER | B10001- | |
| 01435-01020 | BOLT, MOUNT FINGER GUARD | B10001- | ||
| 14 | 12Y-03-11972 | GUARD, FINGER | B10001- | |
| 01010-81020 | BOLT | B10001- | ||
| 01643-31032 | WASHER | B10001- | ||
| 15 | 12Y-03-13341 | BAR | B10001- | |
| 16 | 12Y-03-13361 | PLATE | B10001- | |
| 17 | 12Y-03-13351 | COVER | B10001- | |
| 01010-80816 | BOLT, MOUNT COVER | B10001- | ||
| 01643-30823 | WASHER | B10001- |
