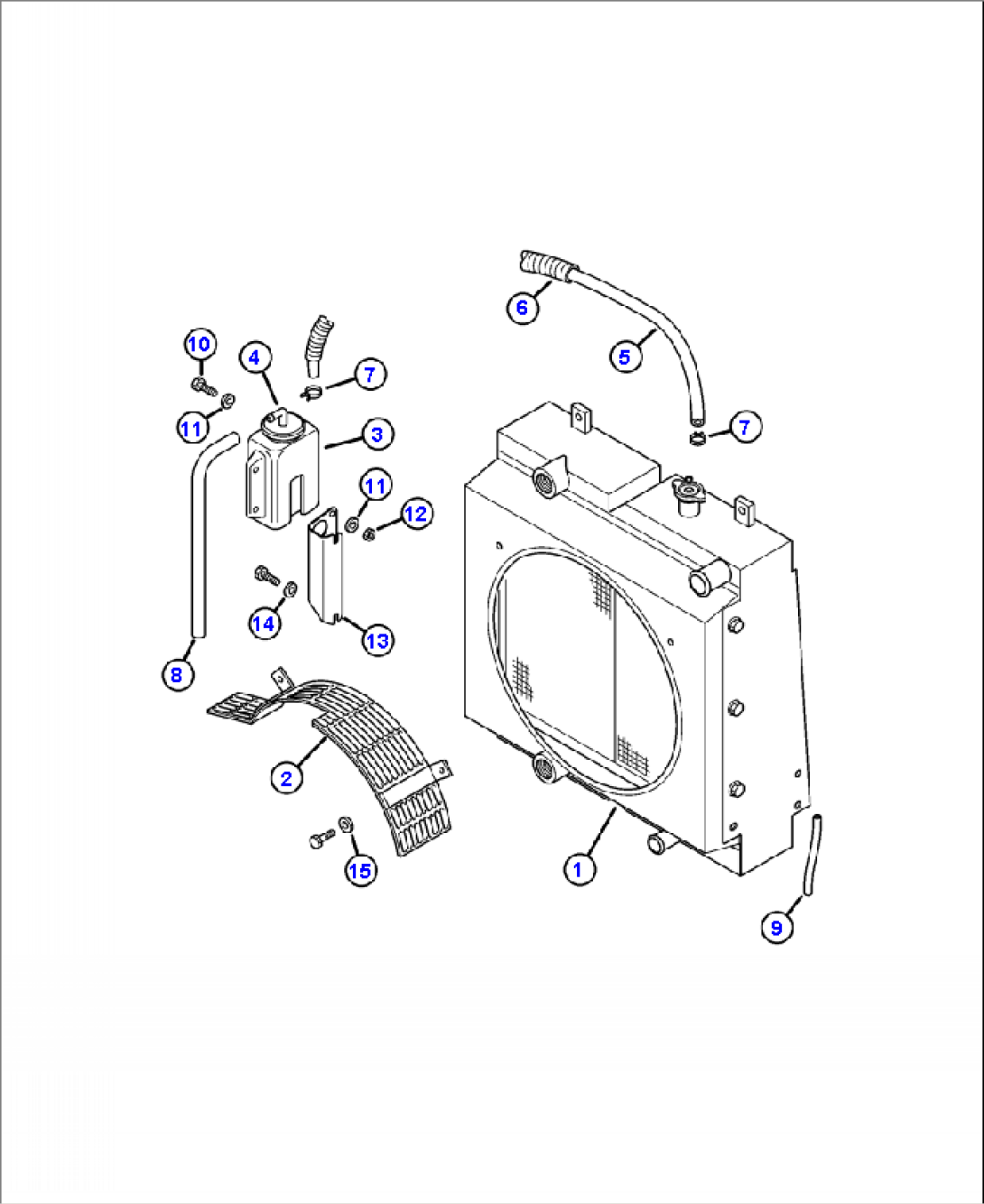

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | RADIATOR (SEE FIG. C1500-01A0) | A80001-A80531- | ||
| 2 | 37C-01-11612 | SCREEN, FAN | A80001-A80531- | |
| 01643-31032 | WASHER | A80001-A80531- | ||
| 3 | 21D-09-R3810 | TANK, OVER FLOW | A80001-A80531- | |
| 4 | 21D-09-R3820 | CAP, TANK | A80001-A80531- | |
| 5 | 37A-03-11321 | HOSE, TO TANK | A80001-A80531- | |
| 6 | 37A-04-11220 | PROTECTOR, HOSE | A80001-A80531- | |
| 7 | 07285-00115 | CLIP, HOSE | A80001-A80531- | |
| 8 | 37A-03-11240 | HOSE, TANK DRAIN | A80001-A80531- | |
| 9 | 37C-03-11330 | HOSE, RADIATOR DRAIN | A80001-A80531- | |
| 10 | 01016-50825 | BOLT | A80001-A80531- | |
| 11 | 01643-30823 | WASHER | A80001-A80531- | |
| 12 | 21D-09-24180 | NUT | A80001-A80531- | |
| 13 | 37C-03-11220 | SUPPORT, TANK | A80001-A80531- | |
| 14 | 01643-30823 | WASHER | A80001-A80531- | |
| 15 | 37A-09-4A013 | SPACER, MOUNTING | A80001-A80531- |
