| Item | Part No. | Part Name | Qty | Serial No. |
| 566-54-43002 | CABIN ASS'Y | 1113- | ||
| 566-54-43001 | CABIN ASS'Y | 1102-1112 | ||

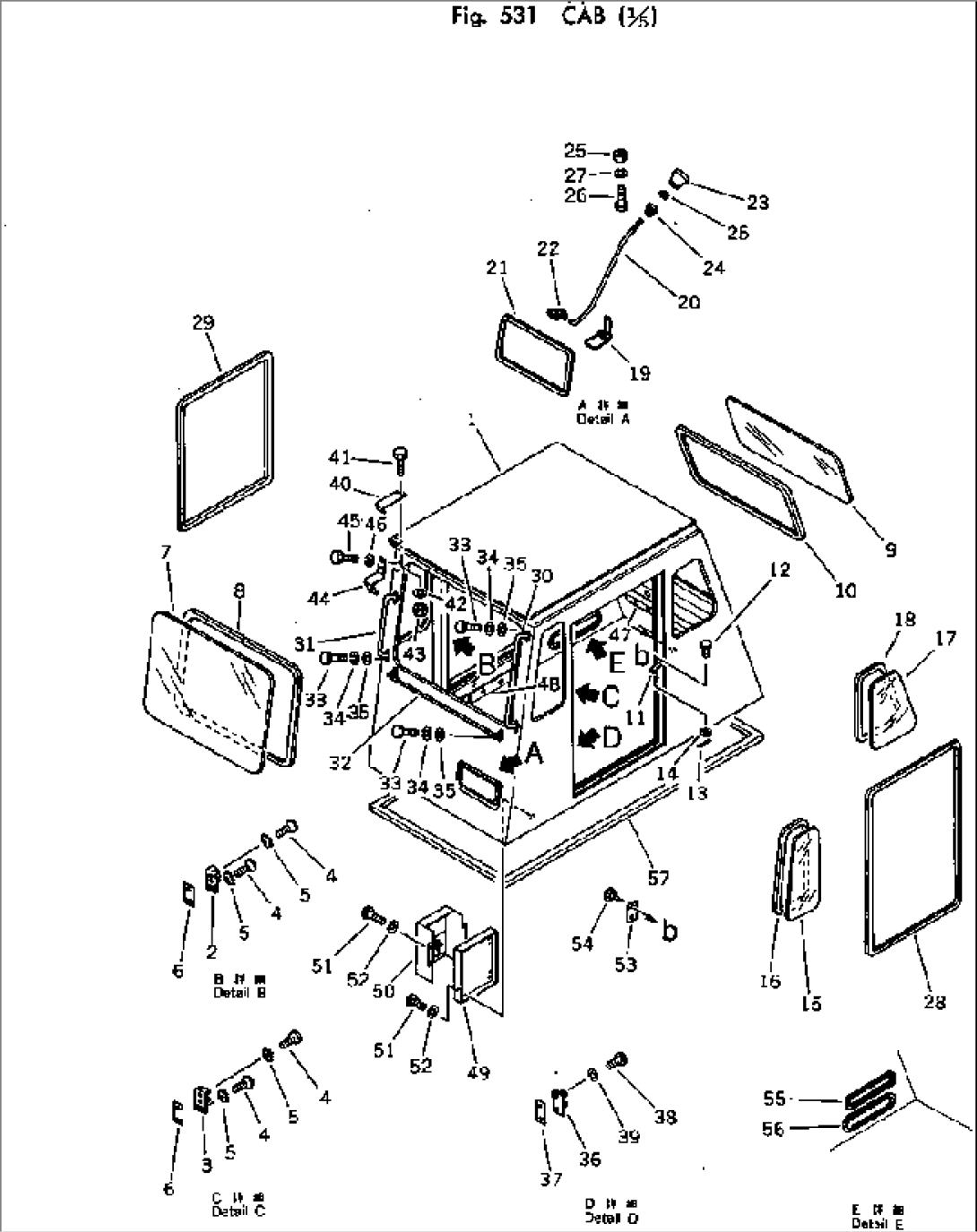

| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.531 TO 535. | ||||
| 1 | 566-54-43111 | CABIN | 1113- | |
| 1 | 566-54-43110 | CABIN | 1102-1112 | |
| 2 | 566-54-24511 | STRIKER,L.H. | 1102- | |
| 3 | 566-54-25511 | STRIKER,R.H. | 1102- | |
| 4 | 01225-30625 | SCREW | 1102- | |
| 5 | 566-54-13580 | WASHER | 1102- | |
| 6 | 566-54-24521 | SHIM, 0.8MM | 1102- | |
| 7 | 566-54-43120 | GLASS,FRONT | 1102- | |
| 8 | 566-54-43750 | STRIP,FRONT | 1102- | |
| 9 | 566-54-43130 | GLASS,REAR | 1102- | |
| 10 | 566-54-43760 | STRIP,REAR | 1102- | |
| 11 | 566-54-24311 | CHECK ARM ASS'Y | 1102- | |
| 12 | 04205-10618 | PIN | 1102- | |
| 13 | 04205-11610 | PIN | 1102- | |
| 14 | 01641-20608 | WASHER | 1102- | |
| 15 | 566-54-43140 | GLASS,SIDE, FRONT | 1102- | |
| 16 | 566-54-43770 | STRIP,SIDE, FRONT | 1102- | |
| 17 | 566-54-43150 | GLASS,SIDE, REAR | 1102- | |
| 18 | 566-54-43780 | STRIP,SIDE, REAR | 1102- | |
| 19 | 566-54-23510 | SPRING | 1102- | |
| 20 | 566-54-43660 | ROD | 1102- | |
| 21 | 566-54-43670 | SEAL | 1102- | |
| 22 | 566-54-23540 | CONNECTOR | 1102- | |
| 23 | 566-54-23550 | KNOB | 1102- | |
| 24 | 566-54-23560 | BUSHING | 1102- | |
| 25 | 01580-10605 | NUT | 1102- | |
| 26 | 01010-50620 | BOLT | 1102- | |
| 27 | 01602-20619 | WASHER | 1102- | |
| 28 | 566-54-24150 | SEAL | 1102- | |
| 29 | 566-54-25150 | SEAL | 1102- | |
| 30 | 566-54-43160 | HANDLE | 1102- | |
| 31 | 566-54-43170 | HANDLE | 1102- | |
| 32 | 566-54-43180 | HANDLE | 1102- | |
| 33 | 01010-50820 | BOLT | 1102- | |
| 34 | 01602-20825 | WASHER | 1102- | |
| 35 | 01642-20810 | WASHER | 1102- | |
| 36 | 566-54-23460 | DOVE TAIL | 1102- | |
| 37 | 566-54-23480 | PLATE | 1102- | |
| 38 | 01220-30625 | SCREW | 1102- | |
| 39 | 01602-20619 | WASHER | 1102- | |
| 40 | 566-54-43520 | BRACKET | 1102- | |
| 41 | 01010-50816 | BOLT | 1102- | |
| 42 | 01602-20825 | WASHER | 1102- | |
| 43 | 01580-10806 | NUT | 1102- | |
| 44 | 566-54-43530 | BRACKET | 1102- | |
| 45 | 01010-50616 | BOLT | 1102- | |
| 46 | 01602-20619 | WASHER | 1102- | |
| 47 | 566-54-43570 | FINISHER | 1102- | |
| 48 | 566-54-43580 | FINISHER | 1102- | |
| 49 | 566-54-43550 | PLATE | 1102- | |
| 50 | 566-54-43560 | COVER | 1102- | |
| 51 | 01225-20616 | SCREW | 1102- | |
| 52 | 01602-20619 | WASHER | 1102- | |
| 53 | 566-54-43540 | PLATE | 1102- | |
| 54 | 01370-00408 | SCREW | 1102- | |
| 55 | 566-54-43720 | PROTECTOR | 1102- | |
| 56 | 566-54-43730 | PROTECTOR | 1102- | |
| 57 | 566-09-15110 | SEAL | 1102- |
