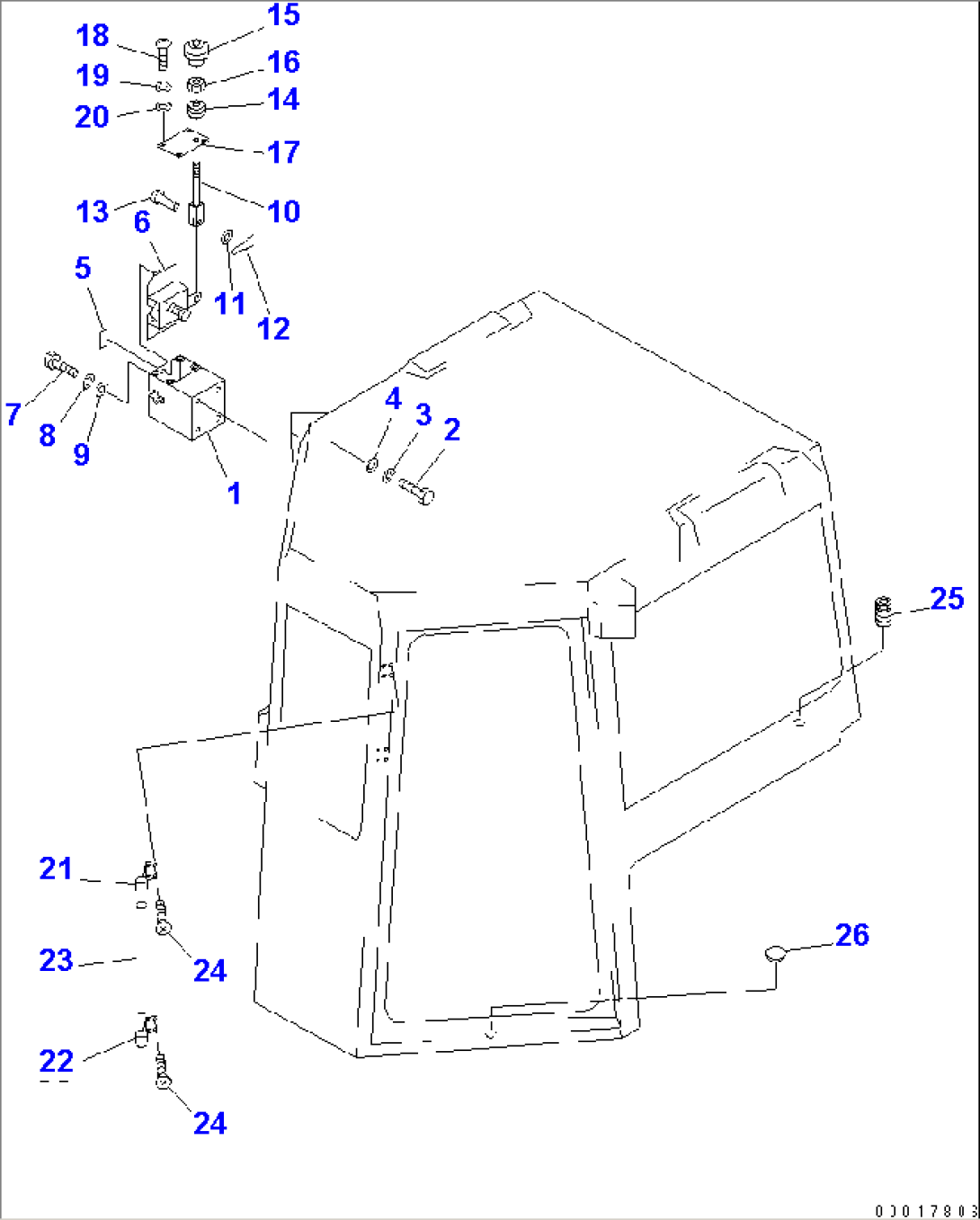

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-Z11-1420 | BRACKET,R.H. | 10471- | |
| 2 | 01010-81025 | BOLT | 10471- | |
| 3 | 01602-21030 | WASHER | 10471- | |
| 4 | 01643-31032 | WASHER | 10471- | |
| 5 | 09685-00001 | PLATE, OPERATING | 10471- | |
| 6 | 195-Z11-1440 | LOCK | 10471- | |
| 7 | 01010-81030 | BOLT | 10471- | |
| 8 | 01602-21030 | WASHER | 10471- | |
| 9 | 01643-31032 | WASHER | 10471- | |
| 10 | 195-Z11-1460 | ROD | 10471- | |
| 11 | 01641-20812 | WASHER | 10471- | |
| 12 | 04050-12012 | PIN | 10471- | |
| 13 | 04205-10825 | PIN | 10471- | |
| 14 | 08037-01008 | GROMMET | 10471- | |
| 15 | 170-43-17110 | BUTTON | 10471- | |
| 16 | 01580-30605 | NUT | 10471- | |
| 17 | 195-Z11-1450 | PLATE | 10471- | |
| 18 | 01220-40616 | SCREW | 10471- | |
| 19 | 01602-20619 | WASHER | 10471- | |
| 20 | 01643-30623 | WASHER | 10471- | |
| 21 | 195-Z11-1510 | BRACKET | 10471- | |
| 22 | 195-Z11-1520 | BRACKET | 10471- | |
| 23 | 195-Z11-1530 | PIPE | 10471- | |
| 24 | 01225-30512 | SCREW | 10471- | |
| 25 | 195-Z11-2831 | JOINT | 10471- | |
| 26 | 195-Z11-1970 | CAP | 10471- |
