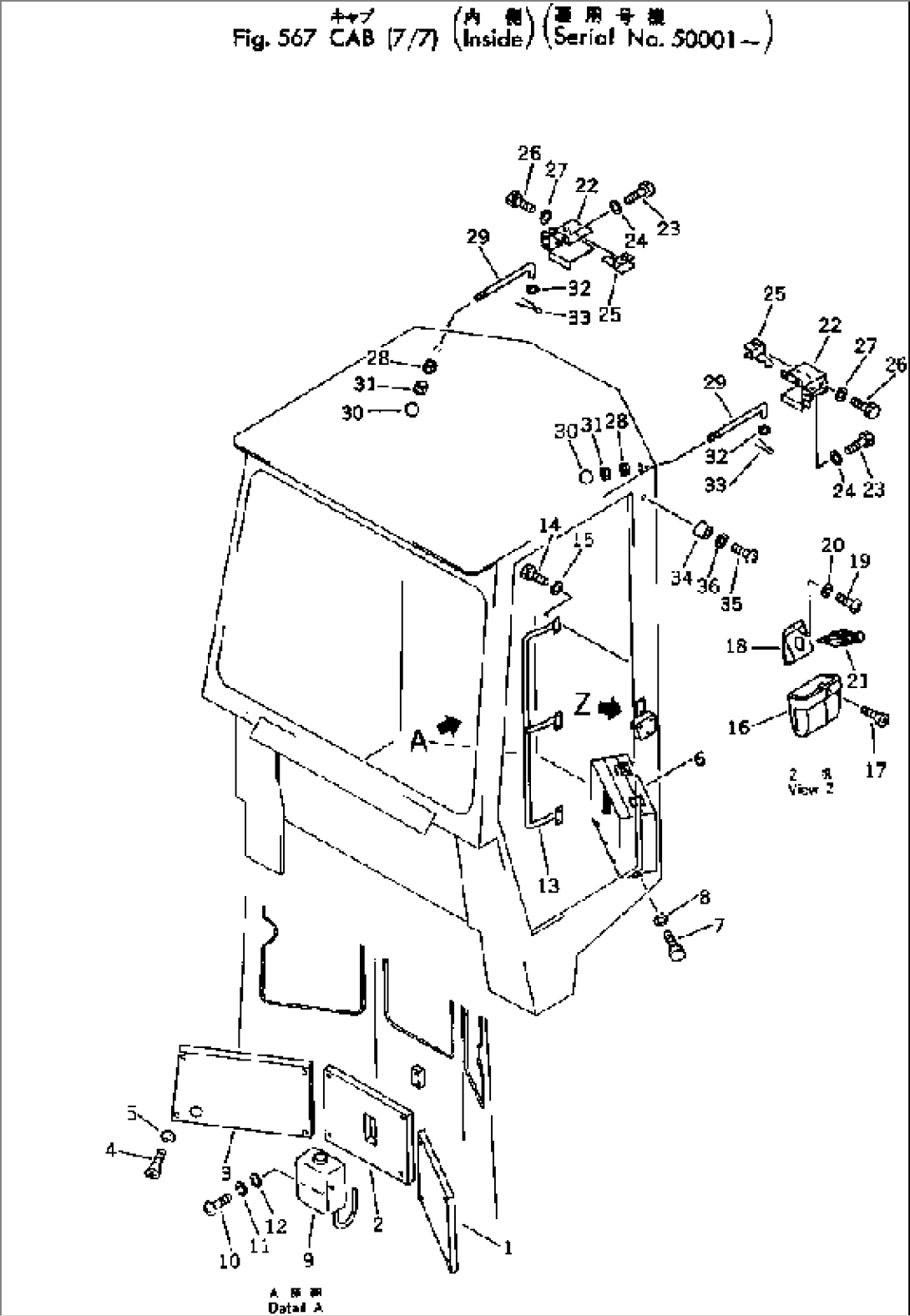

Item | Part No. | Part Name | Qty | Serial No. |
(385-10437342) | CAB KIT | 50001- | ||
(385-10437352) | CAB ASS'Y | 50001- | ||
1 | 385-10414541 | INSULATOR,R.H. | 50001- | |
2 | 385-10414531 | INSULATOR,CENTER | 50001- | |
3 | 385-10414561 | INSULATOR,R.H. | 50001- | |
4 | 385-10447482 | SCREW | 50001- | |
5 | 385-10446952 | WASHER | 50001- | |
6 | 385-10415511 | BOX | 50001- | |
7 | 01010-50616 | BOLT | 50001- | |
8 | 01643-30623 | WASHER | 50001- | |
9 | 385-10393951 | TANK,TANK | 50001- | |
10 | 01220-40616 | SCREW | 50001- | |
11 | 01602-20619 | WASHER | 50001- | |
12 | 01643-30623 | WASHER | 50001- | |
13 | 385-10409921 | GRIP | 50001- | |
14 | 01010-50616 | BOLT | 50001- | |
15 | 01641-20608 | WASHER | 50001- | |
16 | 385-10394331 | ASHTRAY | 50001- | |
17 | 01224-40412 | SCREW | 50001- | |
18 | 385-10405051 | BRACKET | 50001- | |
19 | 01220-40412 | SCREW | 50001- | |
20 | 01601-20410 | WASHER | 50001- | |
21 | 385-10395351 | LIGHTER | 50001- | |
22 | 385-10368251 | SUPPORT,L.H. | 50001- | |
385-10268241 | SUPPORT,R.H. | 50001- | ||
23 | 01010-50616 | BOLT | 50001- | |
24 | 01643-30623 | WASHER | 50001- | |
25 | 385-10310121 | CATCHER,L.H. | 50001- | |
385-10310111 | CATCHER,R.H. | 50001- | ||
26 | 01010-50616 | BOLT | 50001- | |
27 | 01643-30623 | WASHER | 50001- | |
28 | 08037-01008 | GROMMET | 50001- | |
29 | 385-10394451 | ROD,CATCH | 50001- | |
30 | 385-10394791 | KNOB | 50001- | |
31 | 01580-10605 | NUT | 50001- | |
32 | 01641-20608 | WASHER | 50001- | |
33 | 04050-12012 | PIN | 50001- | |
34 | 385-10085262 | STOPPER | 50001- | |
35 | 01220-40625 | SCREW | 50001- | |
36 | 01641-20608 | WASHER | 50001- |
