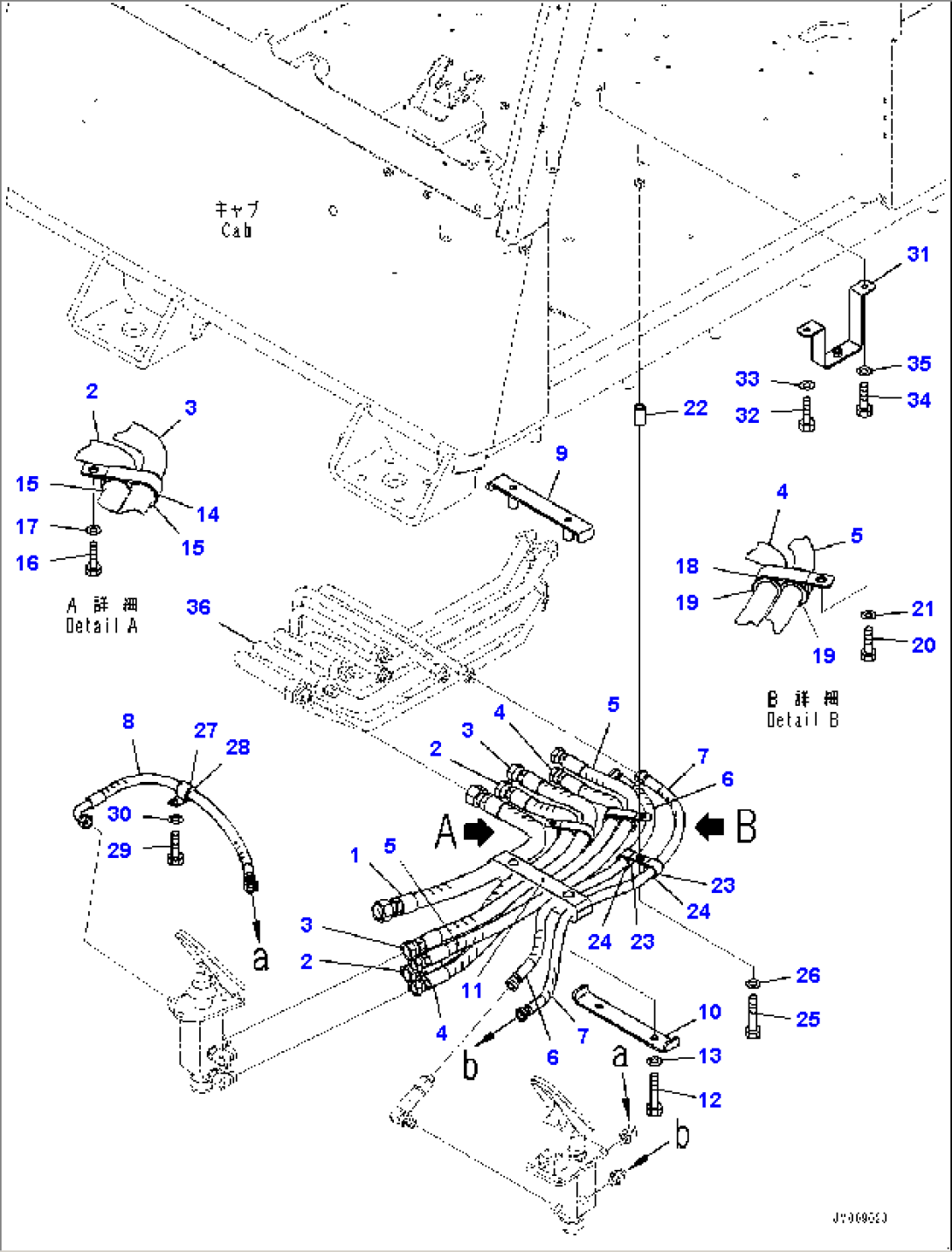

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-43-8L810 | Hose | 50001- | |
| 2 | 566-43-8L710 | Hose | 50001- | |
| 3 | 566-43-8L720 | Hose | 50001- | |
| 4 | 566-43-8L730 | Hose | 50001- | |
| 5 | 566-43-8L740 | Hose | 50001- | |
| 6 | 566-43-8L750 | Hose | 50001- | |
| 7 | 566-43-8L760 | Hose | 50001- | |
| 8 | 02766-004A6 | Hose, Face Seal Type | 50001- | |
| 9 | 561-43-83221 | Plate | 50001- | |
| 10 | 561-43-83211 | Plate | 50001- | |
| 11 | 566-43-83610 | Clamp | 50001- | |
| 12 | 01010-81280 | Bolt | 50001- | |
| 13 | 01643-31232 | Washer | 50001- | |
| 14 | 196-911-3310 | Clip | 50001- | |
| 15 | 07095-20627 | Cushion | 50001- | |
| 16 | 01010-81230 | Bolt | 50001- | |
| 17 | 01643-31232 | Washer | 50001- | |
| 18 | 196-911-3310 | Clip | 50001- | |
| 19 | 07095-20625 | Cushion | 50001- | |
| 20 | 01010-81230 | Bolt | 50001- | |
| 21 | 01643-31232 | Washer | 50001- | |
| 22 | 581-22-12760 | Spacer | 50001- | |
| 23 | 04434-52712 | Clip | 50001- | |
| 24 | 07095-20420 | Cushion | 50001- | |
| 25 | 01010-81275 | Bolt | 50001- | |
| 26 | 01643-31232 | Washer | 50001- | |
| 27 | 04434-52712 | Clip | 50001- | |
| 28 | 07095-20420 | Cushion | 50001- | |
| 29 | 01010-81220 | Bolt | 50001- | |
| 30 | 01643-31232 | Washer | 50001- | |
| 31 | 566-54-8L560 | Bracket | 50001- | |
| 32 | 01010-81030 | Bolt | 50001- | |
| 33 | 01643-31032 | Washer | 50001- | |
| 34 | 01010-81020 | Bolt | 50001- | |
| 35 | 01643-31032 | Washer | 50001- | |
| 36 | (566-43-8L330) | Tube | - |
