| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 561-54-85450 | Bracket | 2848- | |
| 2 | 01010-80616 | Bolt | 2848- | |
| 3 | 01643-30623 | Washer | 2848- | |
| 4 | 561-54-85460 | Bracket | 2848- | |
| 5 | 561-54-85470 | Bracket | 2848- | |
| 6 | 01010-80616 | Bolt | 2848- | |
| 7 | 01643-30623 | Washer | 2848- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm400 2 s/n 2848 up (for kal)
- Operator's compartment and control system
- Cab, dashboard (2/2) (#2848 )
Поиск по каталогу

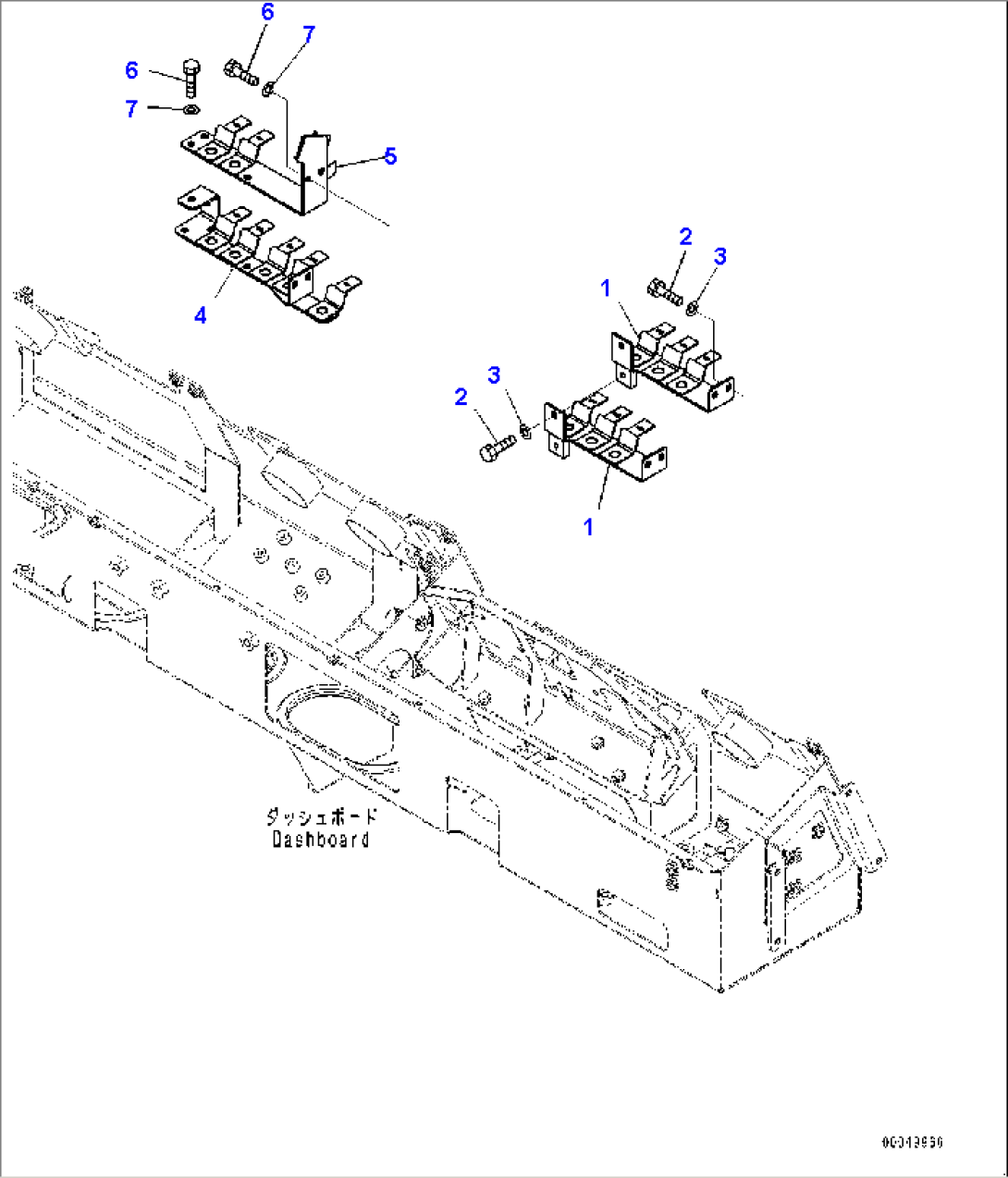

Cab, Dashboard (2/2) (#2848-)
