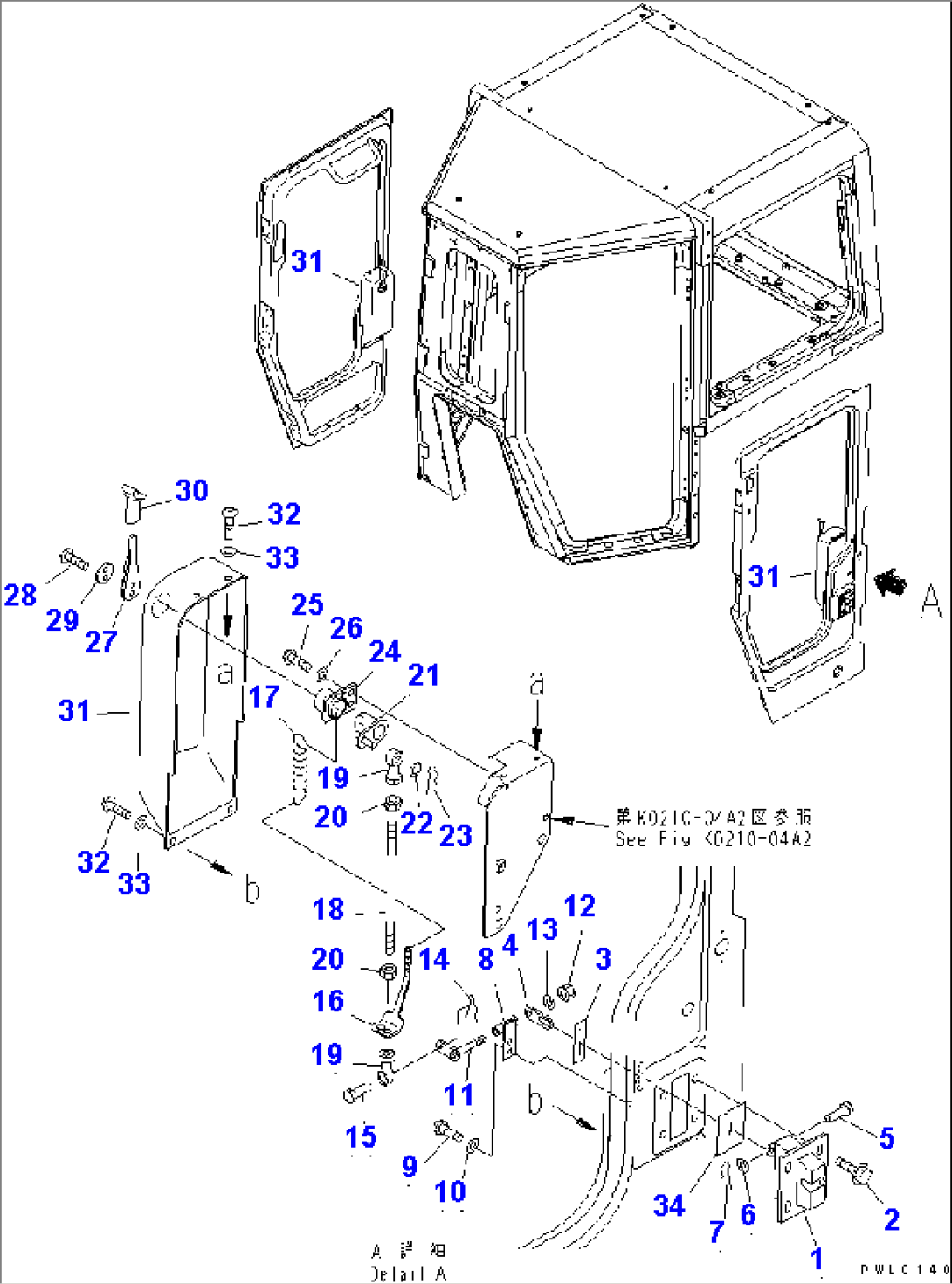

CAB (DOOR AND LOCK) (2/2) (WITH WIDE CAB)(#17501-)

Item	Part No.	Part Name	Qty	Serial No.


		THIS ASSEMBLY CONSISTS OF FALL UNDER PAR TS SHOWN IN FIGS.K0 210-01A2 TO K0210-12 A2.
	198-Z11-0070	.DOOR ASS'Y,STD		17501-
	198-Z11-0080	.DOOR ASS'Y,STD		17501-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-02A2Â¤03A2Â¤ AND 04A2.

		THIS ASSEMBLY CONSISTS OF FALL UNDER PAR TS SHOWN IN FIGS.K0 210-01A6 TO K0210-12 A6.
	198-Z11-0050	.DOOR ASS'Y,(B)		17501-
	198-Z11-0060	.DOOR ASS'Y,(B)		17501-
		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.K0210-02A6Â¤03A2Â¤ AND 04A6.
1	20Y-54-36380	..LOCK		17501-
2	01435-40820	..BOLT		17653-
	01435-30820	..BOLT		17501-17652
3	198-Z11-3490	..SHEET		17501-
4	198-Z11-3480	..PLATE		17501-
5	04205-10520	..PIN		17501-
6	01640-20508	..WASHER		17501-
7	04052-10530	..PIN		17501-
8	198-Z11-3470	..BRACKET		17501-
9	01245-00616	..SCREW		17501-
10	01643-70623	..WASHER		17501-
11	198-Z11-3440	..PLATE		17501-
12	01580-10806	..NUT		17501-
13	01640-20816	..WASHER		17501-
14	04052-10833	..PIN		17501-
15	04205-10825	..PIN		17501-
16	198-Z11-3610	..PLATE		17501-
17	176-06-42170	..SPRING		17501-
18	04245-40820	..ROD		17501-
19	04250-80847	..END		17501-
20	01580-10806	..NUT		17501-
21	198-Z11-3421	..LEVER		17555-
	198-Z11-3420	..PLATE		17501-17554
22	01640-20816	..WASHER		17501-
23	04052-10833	..PIN		17501-
24	198-Z11-3460	..PLATE		17501-
25	01245-00616	..SCREW		17501-
26	01643-70623	..WASHER		17501-
27	198-Z11-3221	..PLATE		17501-
28	01245-00616	..SCREW		17501-
29	198-Z11-3650	..PLATE		17501-
30	14X-911-1540	..KNOB		17501-
31	198-Z11-3322	..COVER,L.H.		17501-
	198-Z11-3332	..COVER,R.H.		17501-
32	01245-00616	..SCREW		17501-
33	01643-70623	..WASHER		17501-
34	14X-911-1780	..SEAL		17501-
