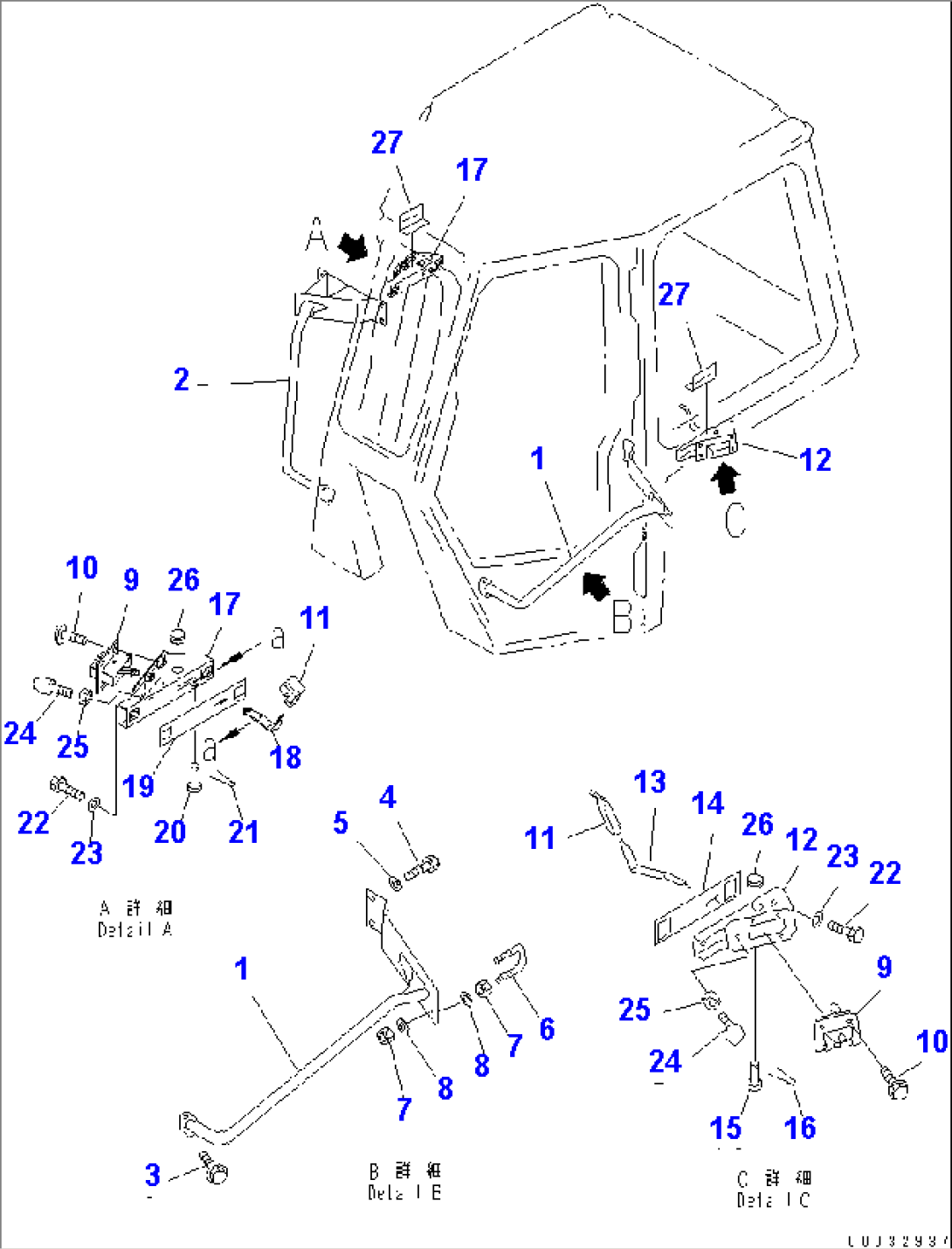

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-1812 | SUPPORT | 65275-66145 | |
| 2 | 17A-911-2510 | SUPPORT | 65275-66145 | |
| 3 | 20Y-54-14360 | BOLT | 65275-66145 | |
| 4 | 01010-81225 | BOLT | 65275-66145 | |
| 5 | 01643-31232 | WASHER | 65275-66145 | |
| 6 | 14X-911-1921 | STRIKER | 65275-66145 | |
| 7 | 01580-11008 | NUT | 65275-66145 | |
| 8 | 01643-31032 | WASHER | 65275-66145 | |
| 9 | 14X-911-1832 | LATCH | 65275- | |
| 10 | 01435-40820 | BOLT | 65275- | |
| 11 | 14X-911-1540 | KNOB | 65275-66145 | |
| 14X-911-1510 | BRACKET ASS'Y | 65275- | ||
| 12 | 14X-911-1911 | BRACKET | 65275- | |
| 13 | 14X-911-1610 | LEVER | 65275- | |
| 14 | 14X-911-1990 | SEAT | 65275- | |
| 15 | 04205-10614 | PIN | 65275- | |
| 16 | 04050-11612 | PIN,COTTER | 65275- | |
| 14X-911-1520 | BRACKET ASS'Y | 65275- | ||
| 17 | 14X-911-1911 | BRACKET | 65275- | |
| 18 | 14X-911-1620 | LEVER | 65275- | |
| 19 | 14X-911-1990 | SEAT | 65275- | |
| 20 | 04205-10614 | PIN | 65275- | |
| 21 | 04050-11612 | PIN,COTTER | 65275- | |
| 22 | 01010-81025 | BOLT | 65275- | |
| 23 | 01643-31032 | WASHER | 65275- | |
| 24 | 130-911-1720 | STOPPER | 65275- | |
| 25 | 01580-11210 | NUT | 65275- | |
| 26 | 09415-01610 | CAP | 65275- | |
| 27 | 14X-911-1932 | SEAL | 65275- |
