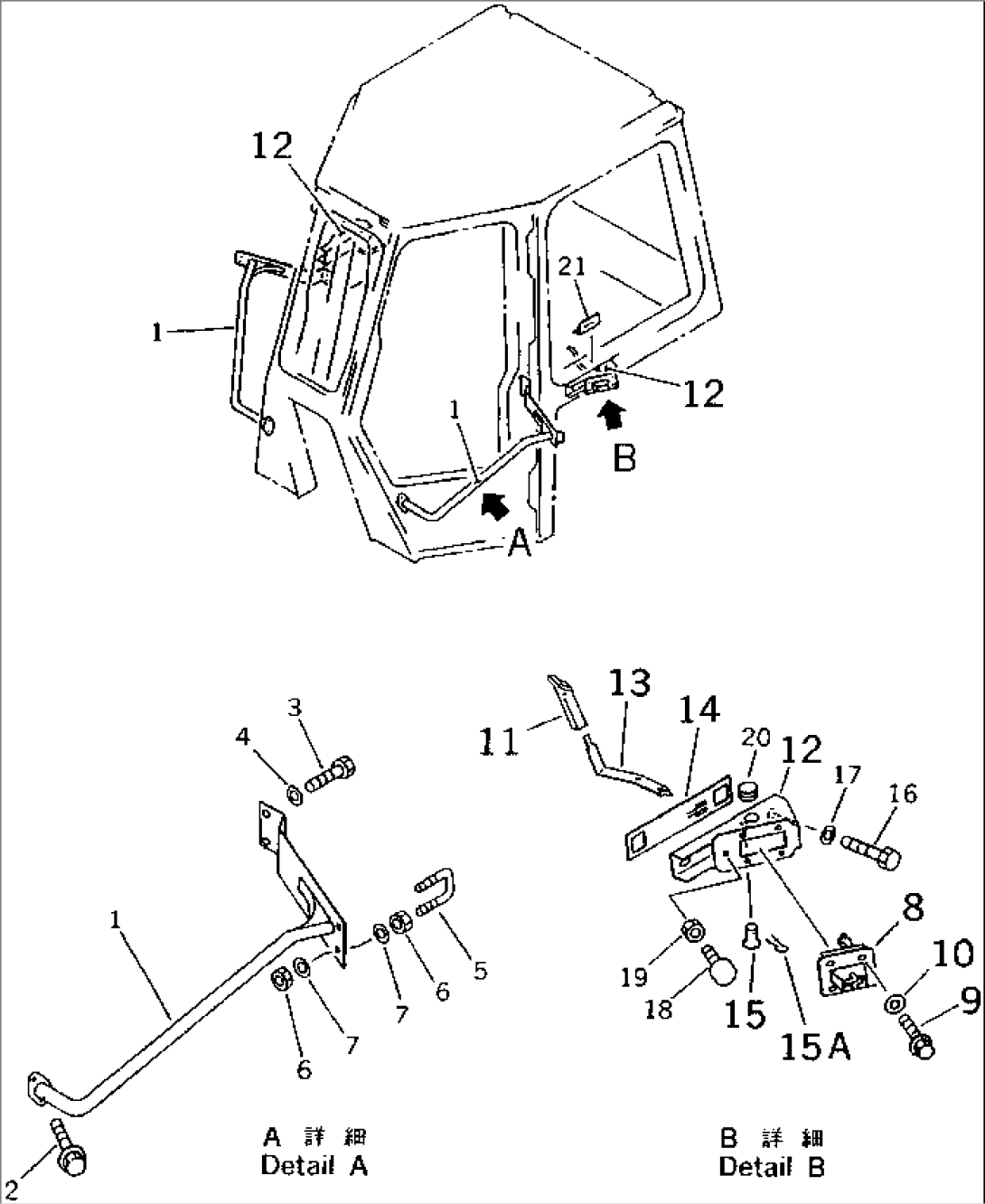

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-1811 | SUPPORT,L.H. | 3001- | |
| 1 | 14X-911-1821 | SUPPORT,R.H. | 3001- | |
| 2 | 20Y-54-14360 | BOLT | 3001- | |
| 3 | 01010-51225 | BOLT | 3001- | |
| 4 | 01643-31232 | WASHER | 3001- | |
| 5 | 14X-911-1921 | STRIKER | 3001- | |
| 6 | 01580-11008 | NUT | 3001- | |
| 7 | 01643-31032 | WASHER | 3001- | |
| 8 | 14X-911-1832 | LATCH | 3001- | |
| 9 | 01435-30820 | BOLT | 3001- | |
| 10 | 01643-30823 | WASHER | 3001- | |
| 11 | 14X-911-1540 | KNOB | 3001- | |
| 14X-911-1510 | BRACKET ASS'Y,L.H. | 3001- | ||
| 14X-911-1520 | BRACKET ASS'Y,R.H. | 3001- | ||
| 12 | 14X-911-1911 | BRACKET | 3001- | |
| 13 | 14X-911-1610 | LEVER,L.H. | 3001- | |
| 13 | 14X-911-1620 | LEVER,R.H. | 3001- | |
| 14 | 14X-911-1990 | SEAT | 3001- | |
| 15 | 04205-10614 | PIN | 3001- | |
| 15A | 04050-11612 | PIN | 3001- | |
| 16 | 01010-51025 | BOLT | 3001- | |
| 17 | 01643-31032 | WASHER | 3001- | |
| 18 | 09453-00002 | STOPPER | 3001- | |
| 19 | 01580-11210 | NUT | 3001- | |
| 20 | 09415-01610 | CAP | 3001- | |
| 21 | 14X-911-1932 | SEAL | 3001- |
