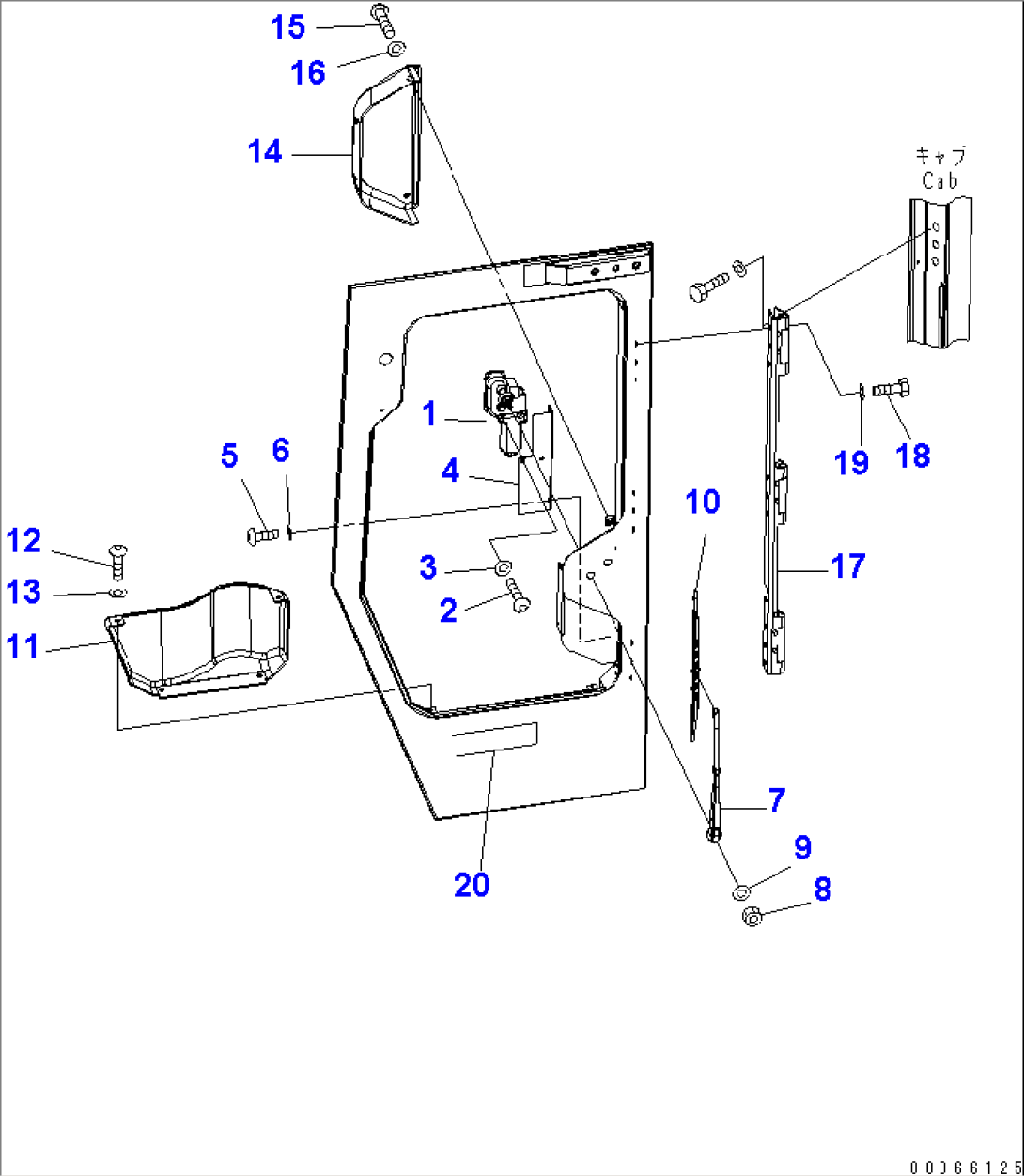

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-Z11-2523 | MOTOR ASS'Y | 11452- | |
| 1 | 17A-Z11-2522 | MOTOR ASS'Y | 11001-11451 | |
| 2 | 01245-00616 | SCREW | 11001- | |
| 3 | 01643-70623 | WASHER | 11001- | |
| 4 | 17A-Z11-3611 | PLATE | 11001- | |
| 5 | 01245-00825 | SCREW | 11001- | |
| 6 | 01643-70823 | WASHER | 11001- | |
| 7 | 17A-Z11-2570 | ARM | 11001- | |
| 8 | 01580-10806 | NUT | 11001- | |
| 9 | 01640-20816 | WASHER | 11001- | |
| 10 | 17A-Z11-2581 | BLADE | 11001- | |
| 11 | 17A-Z11-3631 | 11001- | ||
| 12 | 01245-00616 | SCREW | 11001- | |
| 13 | 17A-Z11-2813 | PLATE | 11001- | |
| 14 | 17A-Z11-3651 | COVER | 11001- | |
| 15 | 01245-00620 | SCREW | 11001- | |
| 16 | 17A-Z11-2812 | PLATE | 11001- | |
| 17 | 17A-Z11-3672 | HINGE | 11254- | |
| 17 | 17A-Z11-3671 | HINGE | 11001-11253 | |
| 18 | 01010-D1030 | BOLT | 11001- | |
| 19 | 01643-71032 | WASHER | 11001- | |
| 20 | 09970-00230 | PLATE,GALEO | 11001-11451 |
