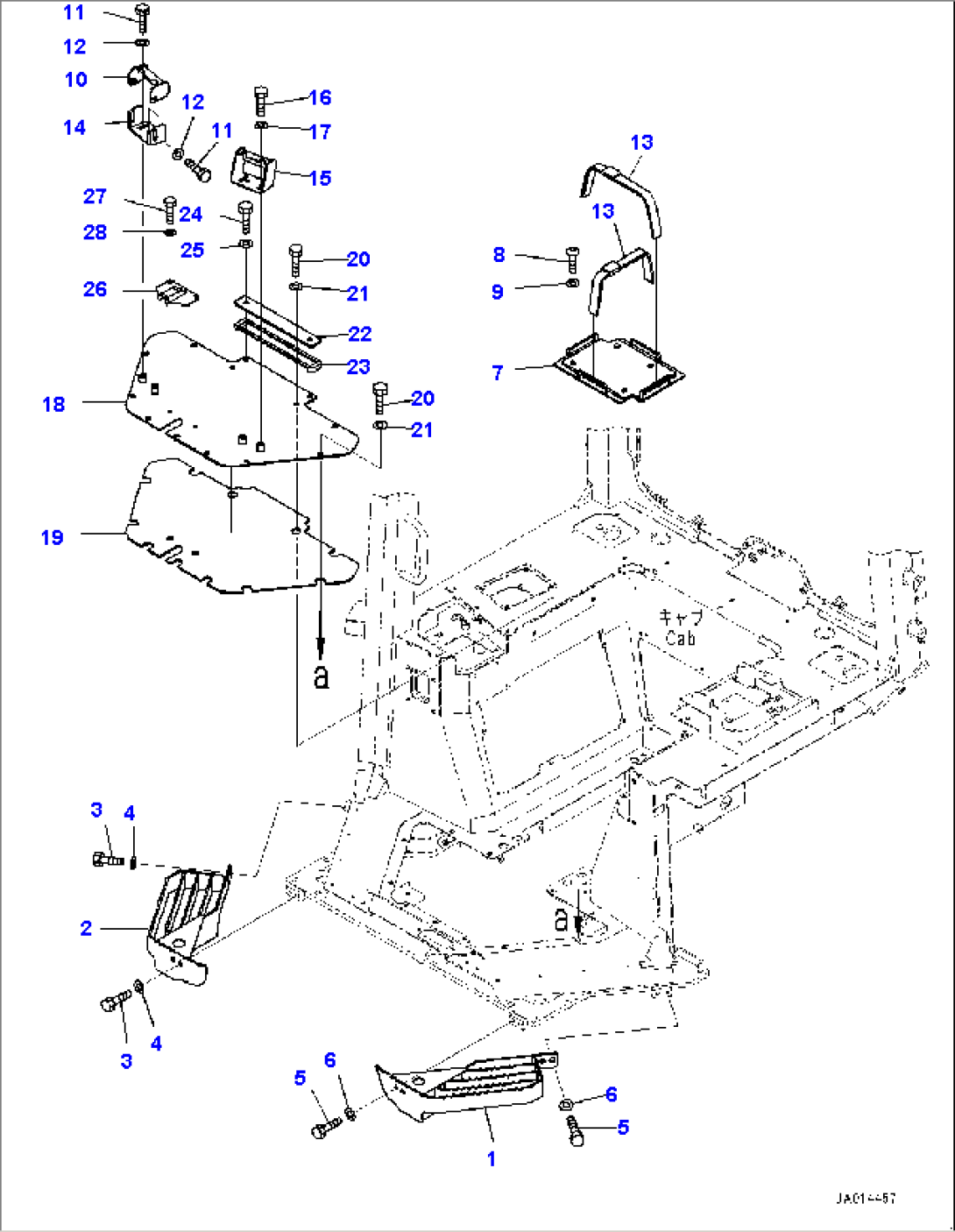

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 12Y-54-27931 | Bracket | 30001-@ | |
| 2 | 12Y-54-27941 | Bracket | 30001-@ | |
| 3 | 01010-D1225 | Bolt | 30617-@ | |
| 4 | 01643-71232 | Washer | 30617-@ | |
| 5 | 01010-D1225 | Bolt | 30617-@ | |
| 6 | 01643-71232 | Washer | 30617-@ | |
| 7 | 12Y-54-28320 | Bracket | 30001-@ | |
| 8 | 01245-00620 | Screw | 30001-@ | |
| 9 | 01643-70623 | Washer | 30001-@ | |
| 10 | 12Y-43-21310 | Plate | 30001-@ | |
| 11 | 01010-D1020 | Bolt | 30001-@ | |
| 12 | 01643-71032 | Washer | 30001-@ | |
| 13 | 423-54-42790 | Band | 30001-@ | |
| 14 | 12Y-43-21321 | Plate | 30001-@ | |
| 15 | 12Y-43-21330 | Bracket | 30001-@ | |
| 16 | 01010-D1020 | Bolt | 30001-@ | |
| 17 | 01643-71032 | Washer | 30001-@ | |
| 18 | 12Y-54-36721 | Cover | 31989-@ | |
| 18 | 12Y-54-26721 | Cover | 30001-31988 | |
| 19 | 12Y-54-26731 | Sheet | 30001-31988 | |
| 20 | 01010-81230 | Bolt | 30001-@ | |
| 21 | 01643-31232 | Washer | 30001-@ | |
| 22 | 17A-54-25560 | Cover | 30001-@ | |
| 23 | 17A-54-25570 | Sheet | 30001-@ | |
| 24 | 01010-81230 | Bolt | 30001-@ | |
| 25 | 01643-31232 | Washer | 30001-@ | |
| 26 | 12Y-06-27771 | Cover | 30001-@ | |
| 27 | 01010-80820 | Bolt | 30001-@ | |
| 28 | 01643-30823 | Washer | 30001-@ |
