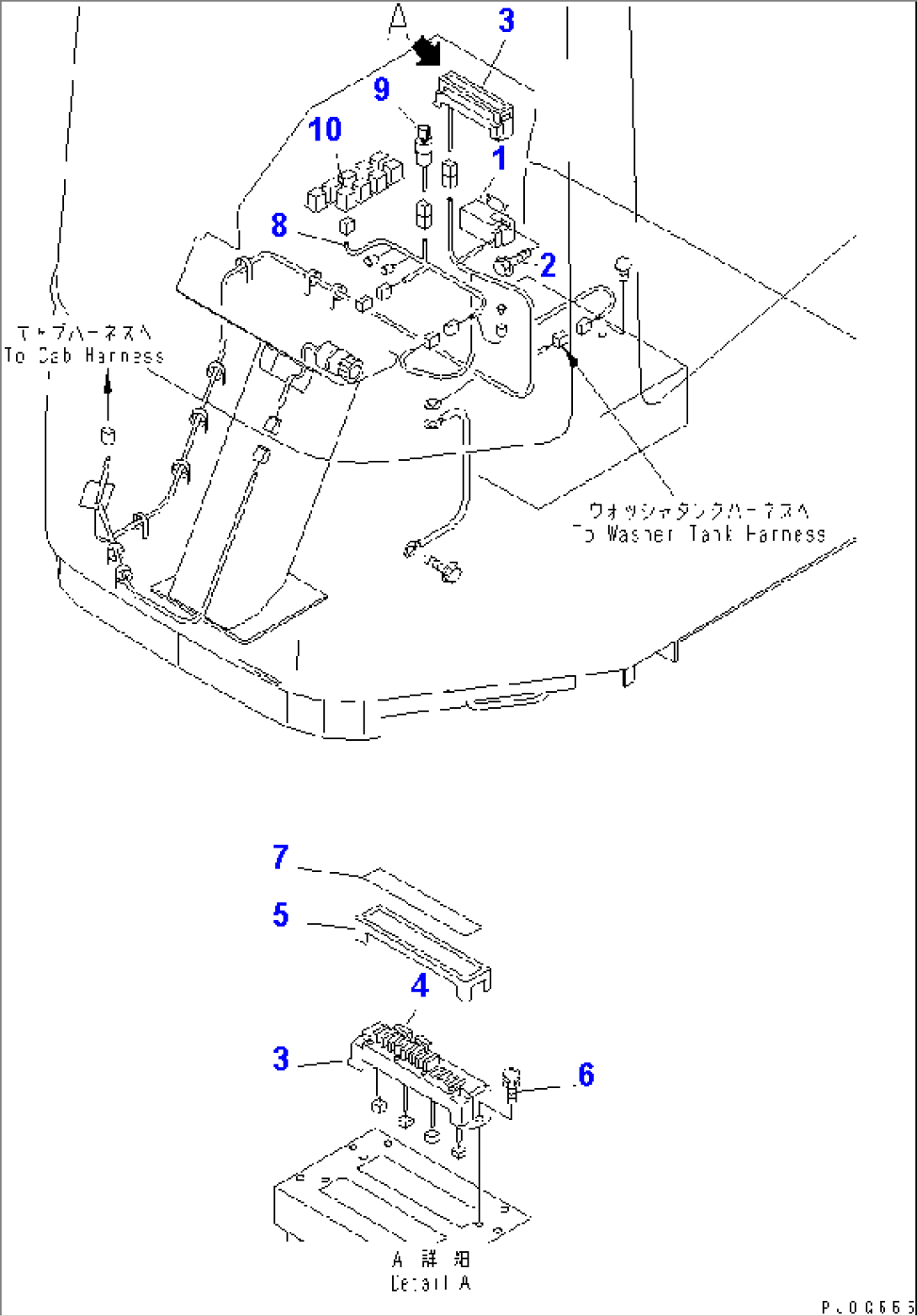

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-26220 | RELAY,WIPER | 11258- | |
| 2 | 01435-00612 | BOLT | 11258- | |
| 3 | 417-06-26111 | FUSE BOX ASS'Y | 11258- | |
| 4 | 283-06-16190 | FUSE¤ 10A | 11258- | |
| 22W-06-13160 | FUSE¤ 20A | 11258- | ||
| 5 | 283-06-16120 | COVER | 11258- | |
| 6 | 01023-70520 | SCREW | 11258- | |
| 7 | 417-93-21130 | PLATE¤ NAME,FUSE | 11258- | |
| 8 | 415-06-26111 | WIRING HARNESS | 11258- | |
| 9 | 416-06-21120 | SWITCH | 11258- | |
| 205-06-71370 | SWITCH | 11258- | ||
| 416-06-21140 | KNOB | 11258- | ||
| 10 | 569-06-61970 | RELAY | 11258- |
