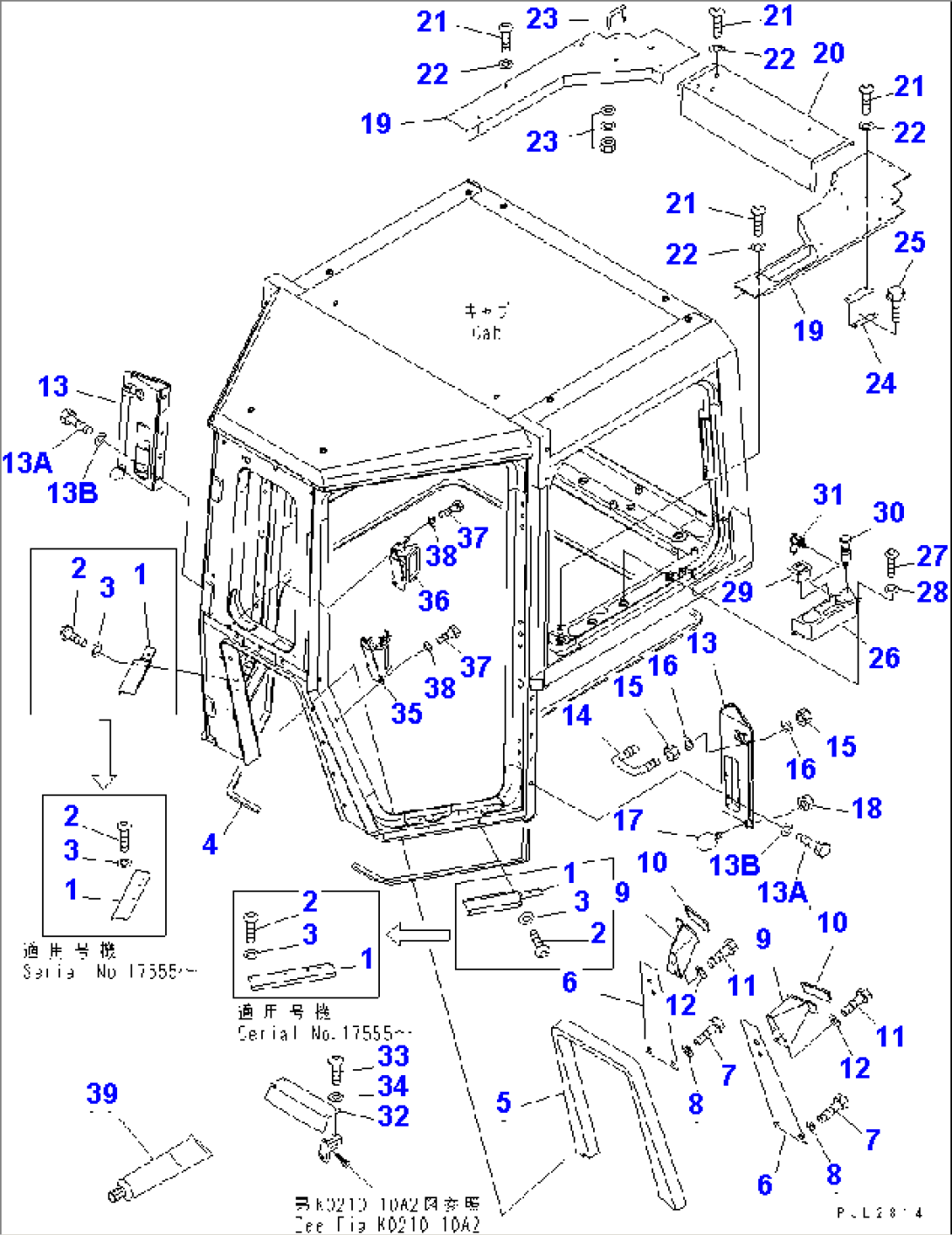

| Item | Part No. | Part Name | Qty | Serial No. |
| 198-Z11-0090 | CAB ASS'Y,(WITH RADIO) | 17501- | ||
| 198-Z11-0100 | CAB ASS'Y,(RADIO LESS) | 17501- | ||
| THIS ASSEMBLY CONSISTS OF FALL UNDER PAR TS SHOWN IN FIGS.K0 210-01A2 TO K0210-12 A2. | ||||
| 1 | 198-Z11-2941 | COVER,L.H. | 17555- | |
| 198-Z11-2940 | PLATE,L.H. | 17501-17554 | ||
| 198-Z11-2951 | COVER,R.H. | 17555- | ||
| 198-Z11-2950 | PLATE,R.H. | 17501-17554 | ||
| 2 | 01245-00616 | SCREW | 17555- | |
| 01245-00616 | SCREW | 17501-17554 | ||
| 3 | 01643-30623 | WASHER | 17555- | |
| 01643-30623 | WASHER | 17501-17554 | ||
| 4 | 14X-911-5911 | SEAL | 17501- | |
| 5 | 198-Z11-3540 | SEAL | 17501- | |
| 6 | 198-Z11-2961 | PLATE | 17555- | |
| 198-Z11-2960 | PLATE | 17501-17554 | ||
| 7 | 01010-D1230 | BOLT | 17501- | |
| 8 | 01643-71232 | WASHER | 17501- | |
| 9 | 14X-911-5711 | BRACKET,L.H. | 17501- | |
| 14X-911-5721 | BRACKET,R.H. | 17501- | ||
| 10 | 203-43-56450 | CAP¤ PEDAL | 17501- | |
| 11 | 01010-D1230 | BOLT | 17501- | |
| 12 | 01643-71232 | WASHER | 17501- | |
| 13 | 198-Z11-3341 | BRACKET,L.H. | 17501- | |
| 198-Z11-3351 | BRACKET,R.H. | 17501- | ||
| 13A | 01010-D1230 | BOLT | 17501- | |
| 13B | 01643-71232 | WASHER | 17501- | |
| 14 | 14X-911-1921 | STRIKER | 17501- | |
| 15 | 01580-11008 | NUT | 17501- | |
| 16 | 01643-31032 | WASHER | 17501- | |
| 17 | 09453-00002 | STOPPER | 17501- | |
| 18 | 01580-11210 | NUT | 17501- | |
| 19 | 198-Z11-2871 | COVER,L.H. | 17501- | |
| 198-Z11-2881 | COVER,R.H. | 17501- | ||
| 20 | 198-Z11-2891 | COVER | 17501- | |
| 21 | 01245-00820 | SCREW | 17501- | |
| 22 | 01643-70823 | WASHER | 17501- | |
| 23 | 198-Z11-2850 | HANDLE | 17501- | |
| 24 | 198-Z11-2860 | BRACKET | 17501- | |
| 25 | 01435-31025 | BOLT | 17501- | |
| 26 | 198-Z11-2611 | BOX | 17501- | |
| 27 | 01245-00820 | SCREW | 17501- | |
| 28 | 01643-70823 | WASHER | 17501- | |
| 29 | 20G-54-13420 | ASHTRAY | 17501- | |
| 30 | 08913-02401 | LIGHTER | 17501- | |
| 31 | 198-Z11-2640 | SOCKET ASS'Y | 17501- | |
| 32 | 195-54-68282 | PLATE | 17555- | |
| 32 | 195-54-68281 | PLATE | 17501- | |
| 33 | 01245-00616 | SCREW | 17501- | |
| 34 | 01643-70623 | WASHER | 17501- | |
| 35 | 198-911-9510 | DAMPER ASS'Y | 17501- | |
| 36 | 198-911-9520 | DAMPER ASS'Y | 17501- | |
| 37 | 01010-D1230 | BOLT | 17501- | |
| 38 | 01643-71232 | WASHER | 17501- | |
| 39 | 198-Z11-3960 | SEAL,(FOR CONSTRUCTION) (NOT SHOWN) | 17501- |
