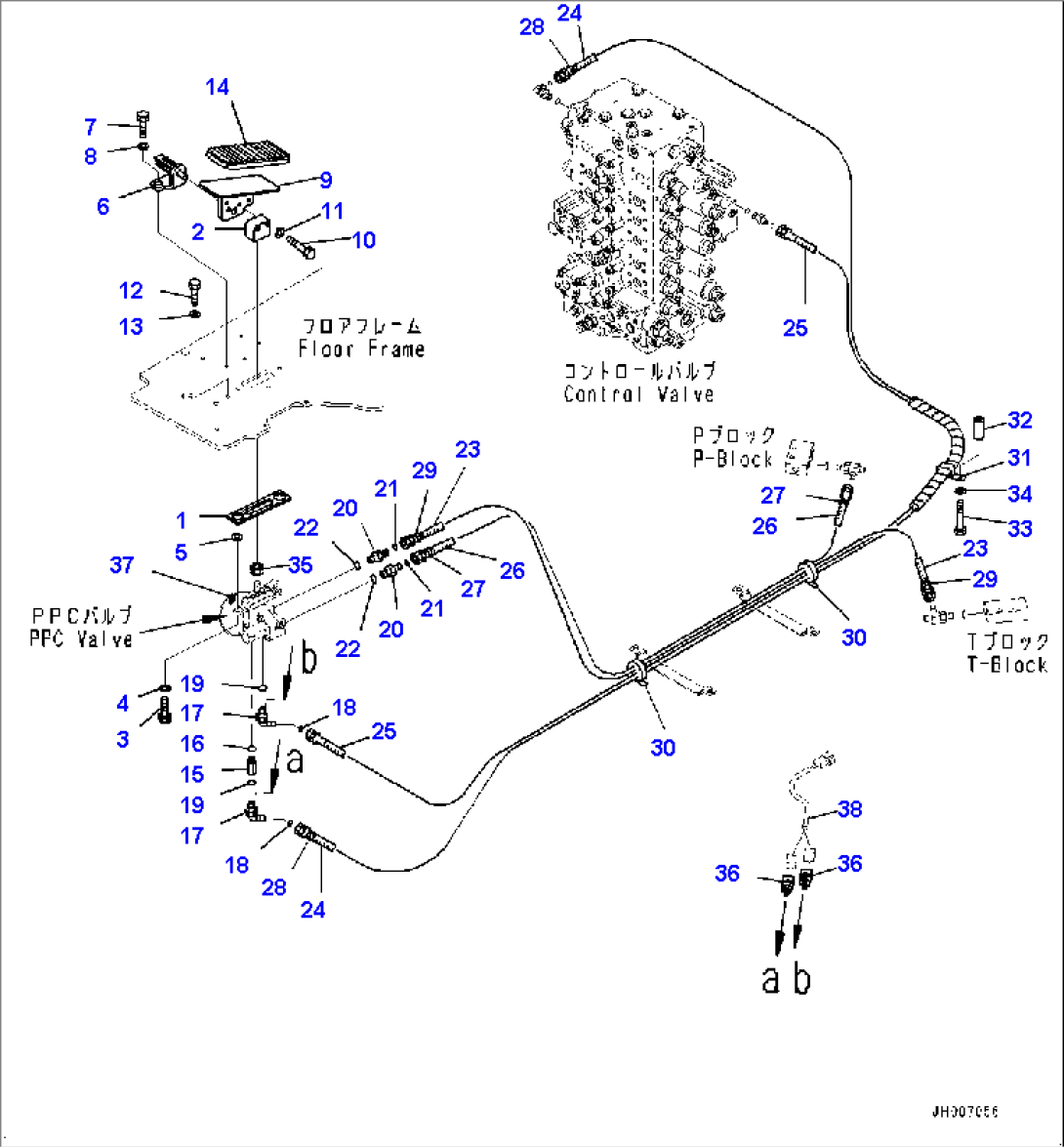

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22U-54-25660 | Seal | 450001- | |
| 2 | 20Y-43-41760 | Seat | 450001- | |
| 3 | 01010-81025 | Bolt | 450001- | |
| 4 | 01643-31032 | Washer | 450001- | |
| 5 | 01643-31032 | Washer | 450001- | |
| 6 | 2A5-62-12350 | Bracket | 450001- | |
| 7 | 01010-81025 | Bolt | 450001- | |
| 8 | 01643-31032 | Washer | 450001- | |
| 9 | 20Y-53-14220 | Pedal | 450001- | |
| 10 | 01010-D1045 | Bolt | 450001- | |
| 11 | 01643-71032 | Washer | 450001- | |
| 12 | 01010-81020 | Bolt | 450001- | |
| 13 | 01643-31032 | Washer | 450001- | |
| 14 | 207-43-81240 | Cap | 450001- | |
| 15 | 20T-910-8660 | Nipple | 450001- | |
| 16 | 07000-12011 | O-ring | 450001- | |
| 17 | 20Y-62-52160 | Elbow | 450001- | |
| 18 | 02896-11008 | O-ring | 450001- | |
| 19 | 07000-12011 | O-ring | 450001- | |
| 20 | 11Y-62-12140 | Nipple | 450001- | |
| 21 | 02896-11008 | O-ring | 450001- | |
| 22 | 07000-12011 | O-ring | 450001- | |
| 23 | 208-62-72480 | Hose | 450001- | |
| 24 | 2A5-62-12320 | Hose | 450001- | |
| 25 | 2A5-62-12330 | Hose | 450001- | |
| 26 | 208-62-72310 | Hose | 450001- | |
| 27 | 20Y-62-22790 | Band, Red | 450001- | |
| 28 | 20Y-62-22810 | Band, Yellow | 450001- | |
| 29 | 20Y-62-22820 | Band, Blue | 450001- | |
| 30 | 08034-20519 | Band | 450001- | |
| 31 | 04435-51210 | Clip | 450001- | |
| 32 | 175-40-22540 | Spacer | 450001- | |
| 33 | 01010-81070 | Bolt | 450001- | |
| 34 | 01643-31032 | Washer | 450001- | |
| 35 | 01583-11408 | Nut | 450001- | |
| 36 | 206-06-61130 | Switch, Pressure | 450001- | |
| 37 | 08034-20519 | Band | 450001- | |
| 38 | (20Y-06-41251) | Wiring Harness | - |
