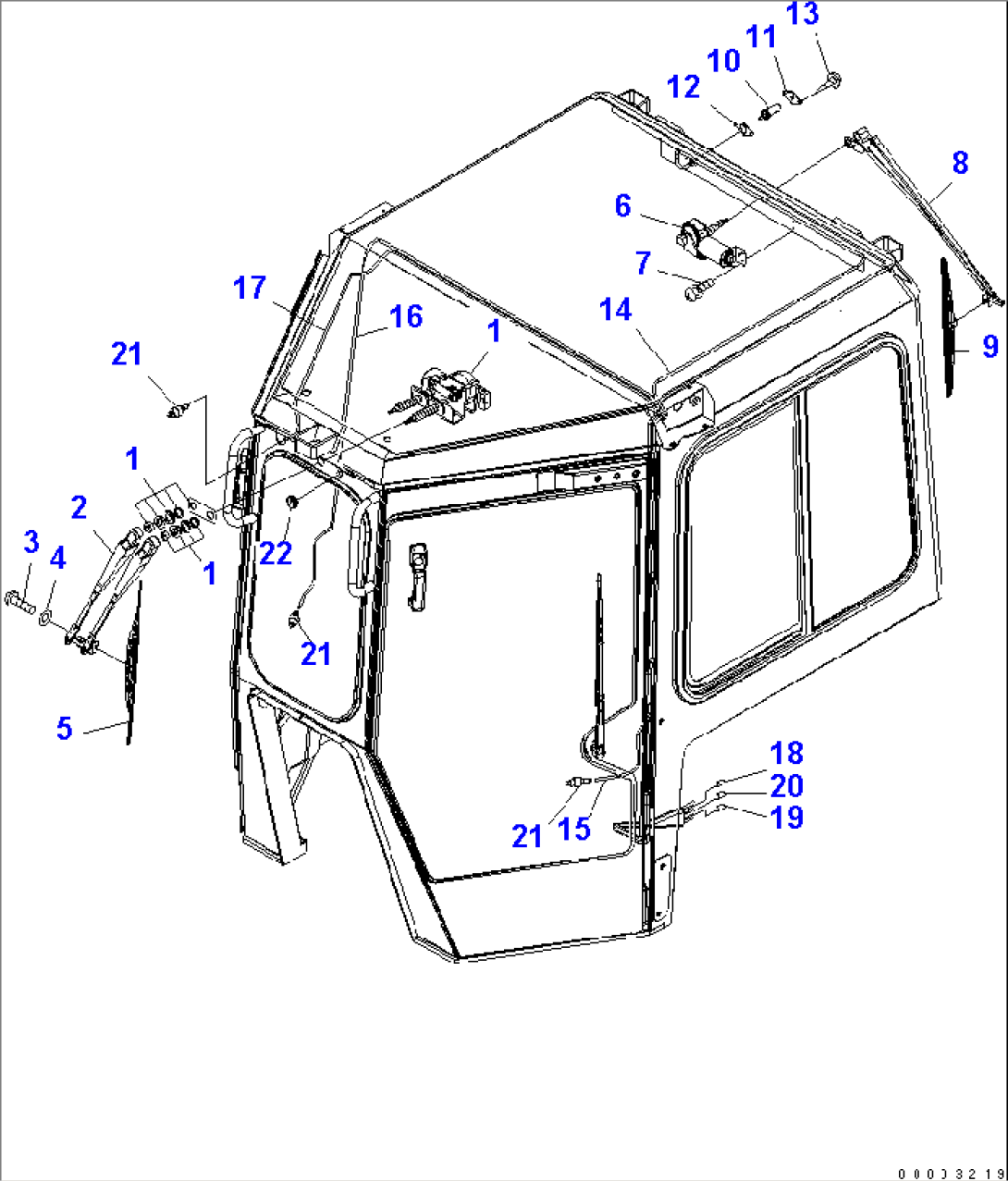

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 17A-Z11-2512 | WIPER MOTOR | 76220- | |
| 1 | \0\17A-Z11-2511 | WIPER MOTOR | 76001-76219 | |
| 2 | 17A-Z11-2530 | WIPER ASS'Y | 76001- | |
| 3 | 01245-00616 | SCREW | 76001- | |
| 4 | 01643-70623 | WASHER | 76001- | |
| 5 | 17A-Z11-2540 | BLADE | 76001- | |
| 6 | 198-Z11-2540 | WIPER MOTOR | 76001- | |
| 7 | 01023-10520 | SCREW | 76001- | |
| 8 | 421-56-21760 | ARM | 76001- | |
| 9 | 421-56-21770 | BLADE | 76001- | |
| 10 | 205-06-61220 | NOZZLE ASS'Y | 76001- | |
| 11 | 14X-911-3560 | BRACKET | 76001- | |
| 12 | 14X-911-3570 | PACKING | 76001- | |
| 13 | 01370-00408 | SCREW | 76001- | |
| 14 | 17A-Z11-2610 | HOSE, 2200MM | 76001- | |
| 15 | 17A-Z11-2620 | HOSE, 500MM | 76001- | |
| 16 | 17A-Z11-2630 | HOSE, 4000MM | 76001- | |
| 17 | 17A-Z11-2640 | HOSE, 3600MM | 76001- | |
| 18 | 14X-911-1130 | TUBE | 76001- | |
| 19 | 14X-911-1140 | TUBE | 76001- | |
| 20 | 14X-911-1150 | TUBE | 76001- | |
| 21 | 17A-Z11-4610 | VALVE | 76352- | |
| 21 | (\2\195-979-8590) | VALVE | (76068-76351) | |
| 21 | 17A-Z11-2650 | JOINT | 76001-76067 | |
| 22 | 17A-Z11-2660 | CAP | 76068- | |
| 22 | 17A-Z11-2660 | CAP | 76001-76067 |
