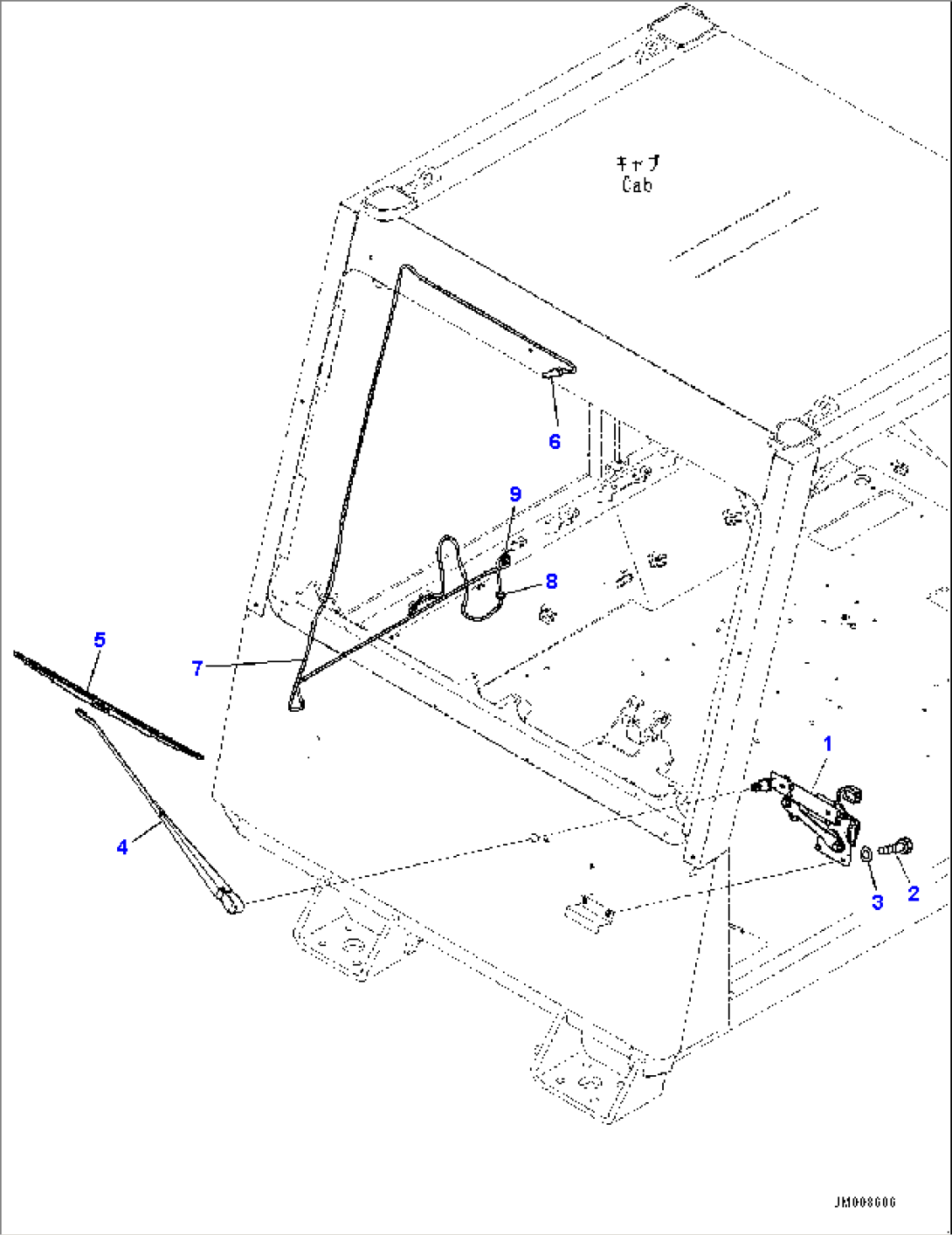

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-13220 | Wiper Motor Assembly | 50001- | |
| 2 | 01010-80620 | Bolt | 50001- | |
| 3 | 01643-30623 | Washer | 50001- | |
| 4 | 569-54-83230 | Arm Assembly | 50001- | |
| 5 | 569-54-83240 | Blade | 50001- | |
| 6 | 22T-55-11630 | Nozzle Assembly | 50001- | |
| 7 | 56D-54-23320 | Hose | 50001- | |
| 8 | 08037-01008 | Grommet | 50001- | |
| 9 | 20Y-54-18980 | Grommet | 50001- |
