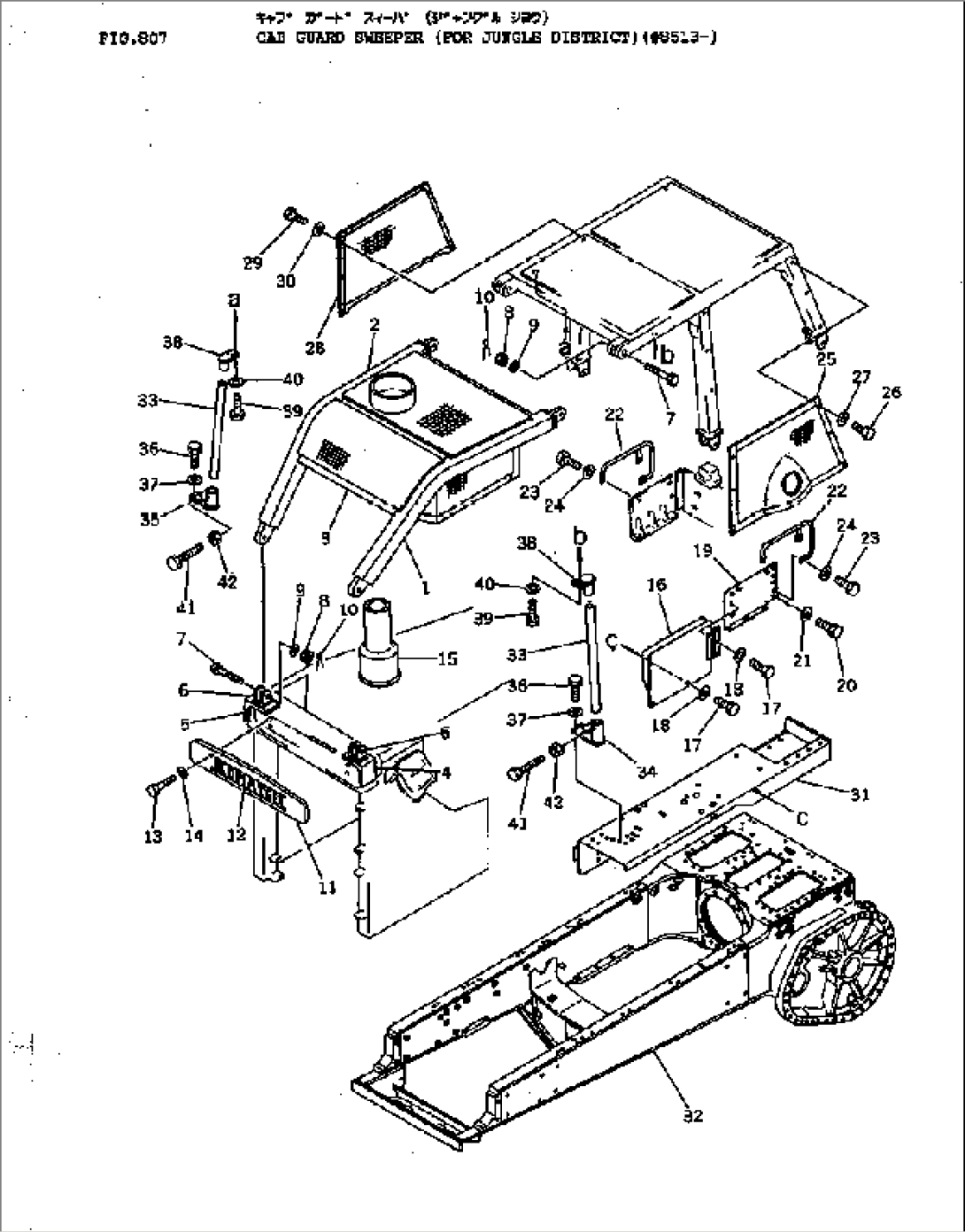

| Item | Part No. | Part Name | Qty | Serial No. |
| 175-902-7361 | FRAME ASS'Y | 8513- | ||
| 1 | 175-902-7140 | FRAME (WELDED) | 8408- | |
| 2 | 175-902-7150 | FRAME (WELDED) | 8408- | |
| 3 | 175-902-7160 | FRAME (WELDED) | 8408- | |
| 175-902-7252 | GUARD ASS'Y | 8513- | ||
| 4 | 175-902-7230 | BRACKET (WELDED) | 8408- | |
| 5 | 175-902-7240 | BRACKET (WELDED) | 8408- | |
| 6 | 175-902-7120 | BRACKET (WELDED) | 8408- | |
| 7 | 01030-33635 | BOLT | 8408- | |
| 8 | 01590-03638 | NUT | 8408- | |
| 9 | 01643-33690 | WASHER | 8408- | |
| 10 | 04050-06065 | PIN | 8408- | |
| 11 | 175-54-25290 | PLATE | 8408- | |
| 12 | 175-54-31230 | MARK | 8408- | |
| 13 | 01010-31025 | BOLT | 8408- | |
| 14 | 01602-01030 | WASHER | 8408- | |
| 15 | (6127-11-5622) | PIPE | 8408- | |
| 16 | 175-902-8160 | COVER | 8513- | |
| 17 | 01010-51635 | BOLT | 8513- | |
| 18 | 01643-31645 | WASHER | 8513- | |
| 19 | 175-902-8261 | GUARD | 8513- | |
| 20 | 01010-82045 | BOLT | 8513- | |
| 21 | 01643-32060 | WASHER | 8513- | |
| 22 | 175-978-1270 | HANDLE | 8513- | |
| 23 | 01010-51230 | BOLT | 8513- | |
| 24 | 01643-31232 | WASHER | 8513- | |
| 25 | 175-902-7341 | COVER | 8513- | |
| 26 | 01010-51635 | BOLT | 8513- | |
| 27 | 01643-31645 | WASHER | 8513- | |
| 28 | 175-902-7351 | COVER | 8513- | |
| 29 | 01010-51635 | BOLT | 8513- | |
| 30 | 01643-31645 | WASHER | 8513- | |
| 31 | 175-902-8241 | FENDER | 8513- | |
| 32 | 175-21-35430 | FRAME | 8513- | |
| 33 | 154-91-21310 | POLE | 8513- | |
| 34 | 175-902-8280 | BRACKET | 8513- | |
| 35 | 175-902-8290 | BRACKET | 8513- | |
| 36 | 01010-51445 | BOLT | 8513- | |
| 37 | 01643-31445 | WASHER | 8513- | |
| 38 | 175-902-8310 | BRACKET | 8513- | |
| 39 | 01010-51230 | BOLT | 8513- | |
| 40 | 01643-31232 | WASHER | 8513- | |
| 41 | 01016-51450 | BOLT | 8513- | |
| 42 | 01580-11411 | NUT | 8513- |
