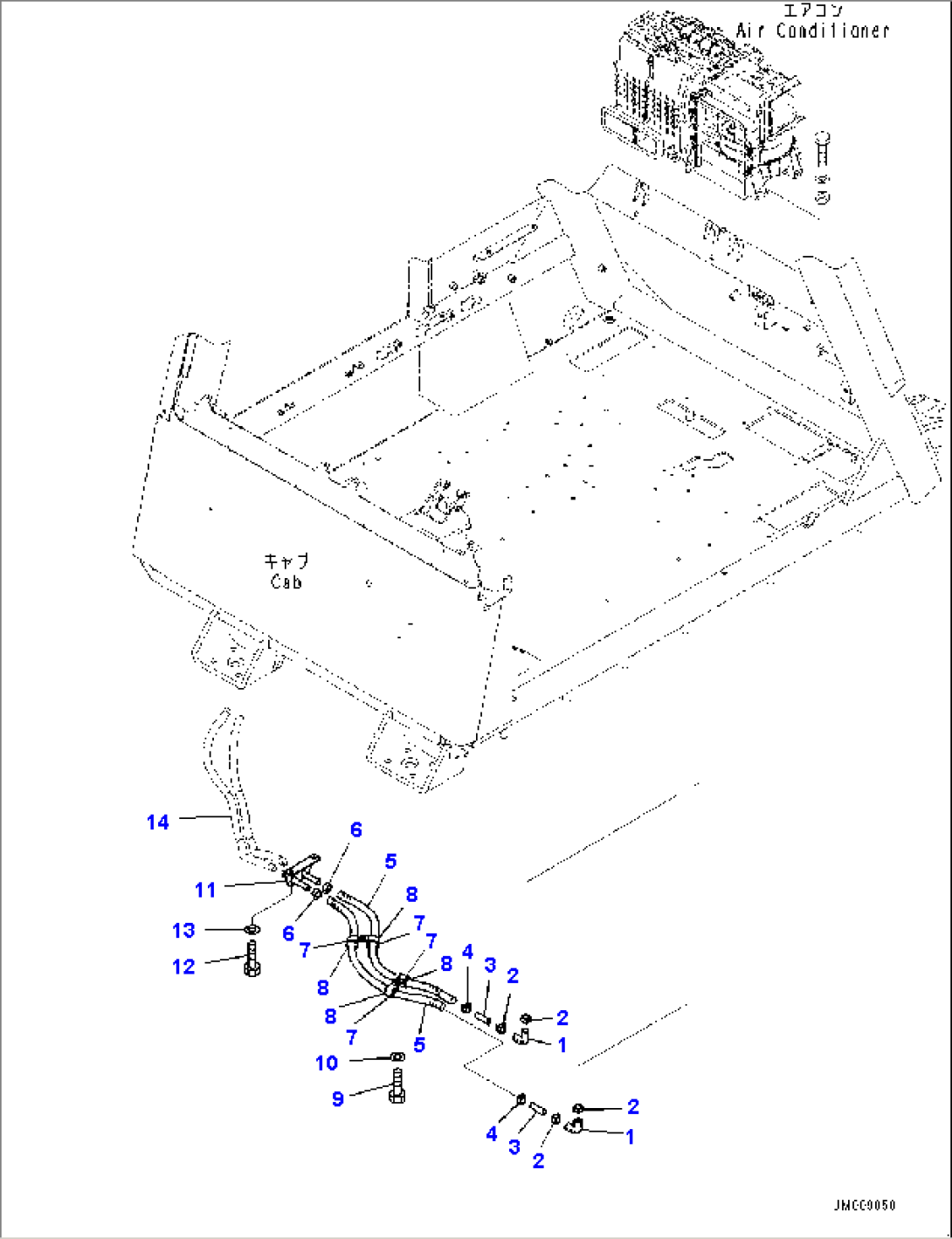

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 09483-30550 | Hose | 50001- | |
| 2 | 09479-02400 | Clip | 50001- | |
| 3 | 09484-00560 | Connector | 50001- | |
| 4 | 09479-02400 | Clip | 50001- | |
| 5 | 09483-10508 | Hose | 50001- | |
| 6 | 09479-02400 | Clip | 50001- | |
| 7 | 04434-53211 | Clip | 50001- | |
| 8 | 07095-40523 | Cushion | 50001- | |
| 9 | 01010-81020 | Bolt | 50001- | |
| 10 | 01643-31032 | Washer | 50001- | |
| 11 | 566-07-8L270 | Bracket | 50001- | |
| 12 | 01010-81020 | Bolt | 50001- | |
| 13 | 01643-31032 | Washer | 50001- | |
| 14 | (09483-10510) | Hose | - |
