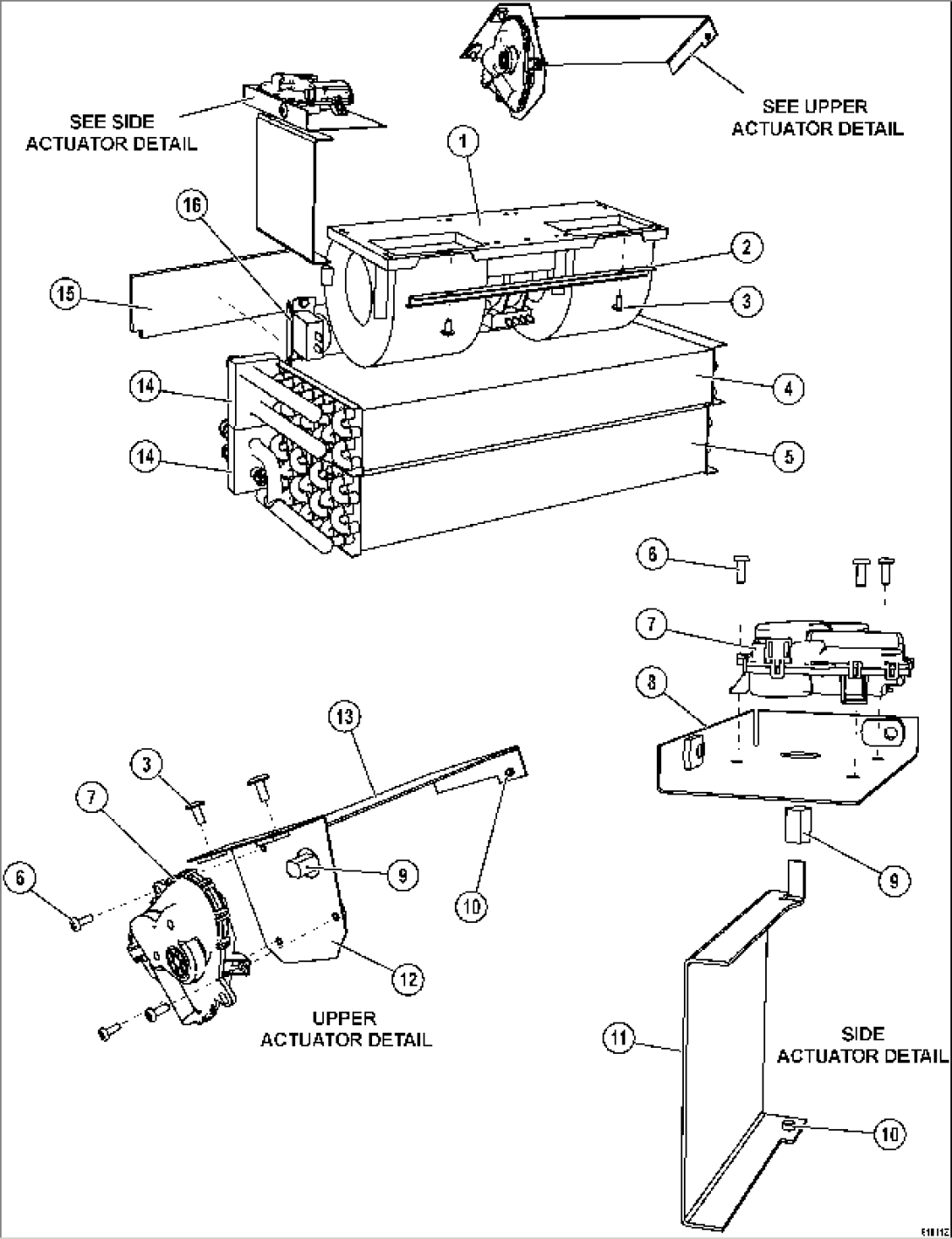

| Item | Part No. | Part Name | Qty | Serial No. |
| (562-54-3ZB21) | Heater Unit Assembly | 80138- | ||
| (58F-07-00030) | Heater Unit | 80138- | ||
| 1 | AHEM0053 | Blower Assembly | 80138- | |
| 2 | AHEM0094 | Blower | 80138- | |
| 3 | AHEM0067 | Screw | 80138- | |
| 4 | AHEM0052 | Heater Core | 80138- | |
| 5 | AHEM0051 | Evaporator | 80138- | |
| 6 | AHEM0083 | Screw | 80138- | |
| 7 | AHEM0060 | Actuator | 80138- | |
| 8 | AHEM0075 | Bracket | 80138- | |
| 9 | AHEM0089 | Drive | 80138- | |
| 10 | AHEM0086 | Pivot | 80138- | |
| 11 | AHEM0091 | Damper, Side | 80138- | |
| 12 | AHEM0073 | Bracket | 80138- | |
| 13 | AHEM0090 | Damper, Upper | 80138- | |
| 14 | AHEM0072 | Cushion | 80138- | |
| 15 | AHEM0071 | Cushion | 80138- | |
| 16 | 58F-98-00050 | Thermostat | 80138- |
