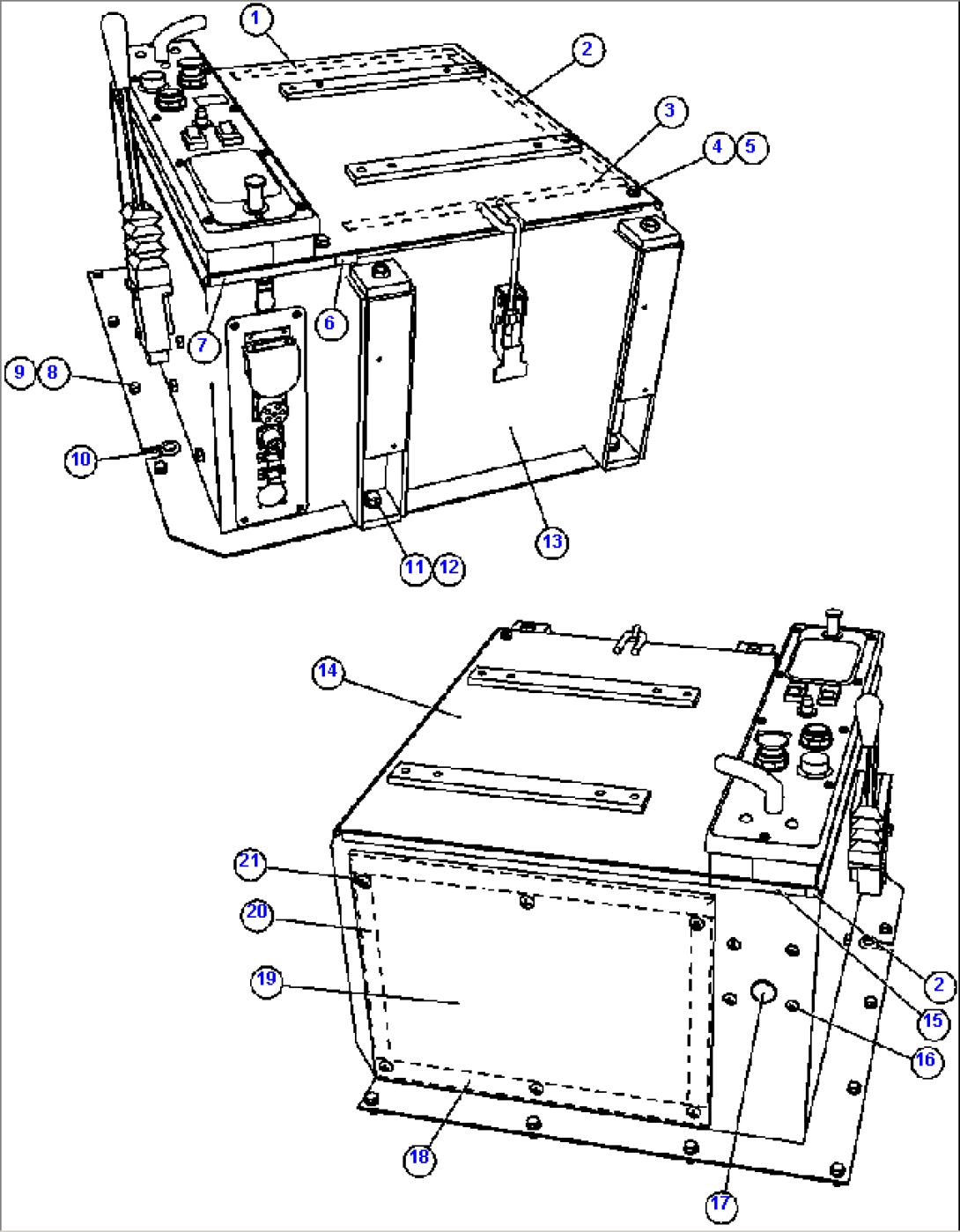

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | SM2224 | SEAL, STRIP | ||
| 2 | SM2222 | SEAL, STRIP | ||
| 3 | SM2827 | SEAL, STRIP | ||
| 4 | MM0595 | CAPSCREW - M8 X 1.25 X 30 | ||
| 5 | MM0470 | LOCKWASHER - M8 | ||
| 6 | SM2463 | SEAL, STRIP | ||
| 7 | SM2826 | SEAL, STRIP | ||
| 8 | MM0593 | CAPSCREW - M8 X 1.25 X 20 | ||
| 9 | MM0470 | LOCKWASHER - M8 | ||
| 10 | TF7982 | GROMMET, RUBBER | ||
| 11 | C1676 | CAPSCREW - 7/16" - 20NF X 1 1/2" | ||
| 12 | TD0795 | LOCKWASHER - 7/16" | ||
| 13 | EJ8296 | BASE, COMPONENTS | ||
| 14 | SM0887 | COVER, COMPONENTS BASE | ||
| 15 | SM2223 | SEAL, STRIP | ||
| 16 | SM0926 | SCREW, PANEL - M6 X 1.00 | ||
| 17 | PB7453 | PLUG | ||
| 18 | SM2220 | STRIP, SEAL | ||
| 19 | SM2174 | COVER, FRONT | ||
| 20 | SM2219 | STRIP, SEAL | ||
| 21 | VF2231 | MACHINE SCREW - #10 - 24NC X 3/8" | ||
| NS|22 | NOTE: NS = NOT SHOWN | |||
| NS|23 | SM2324 | SEALANT |
