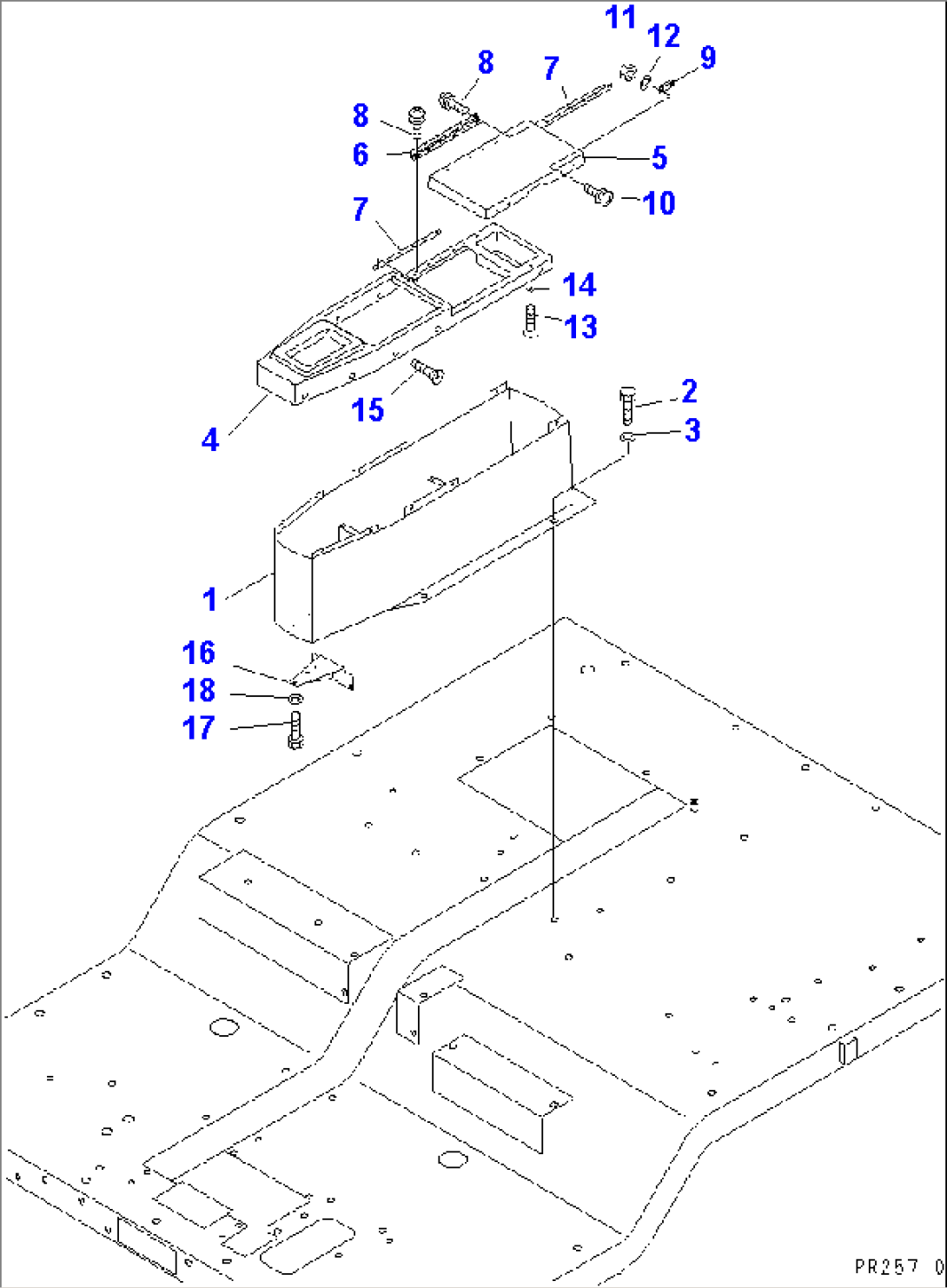

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 566-54-6C210 | BOX | 1001- | |
| 2 | 01010-81225 | BOLT | 1001- | |
| 3 | 01643-31232 | WASHER | 1001- | |
| 569-54-63220 | COVER ASS'Y | 1001- | ||
| 4 | 569-54-63230 | COVER | 1001- | |
| 5 | 569-54-63240 | COVER | 1001- | |
| 6 | 569-54-64150 | HINGE | 1001- | |
| 7 | 569-54-64210 | PLATE | 1001- | |
| 8 | 01023-20308 | SCREW | 1001- | |
| 9 | 569-54-63260 | CATCHER | 1001- | |
| 10 | 01023-20308 | SCREW | 1001- | |
| 11 | 01641-20305 | WASHER | 1001- | |
| 12 | 01580-10302 | NUT | 1001- | |
| 13 | 01224-70308 | SCREW | 1001- | |
| 14 | 569-54-63350 | SEAT | 1055- | |
| 15 | 01224-70620 | SCREW | 1001- | |
| 16 | 566-54-6C290 | BRACKET | 1001- | |
| 17 | 01010-81225 | BOLT | 1001- | |
| 18 | 01643-31232 | WASHER | 1001- |
