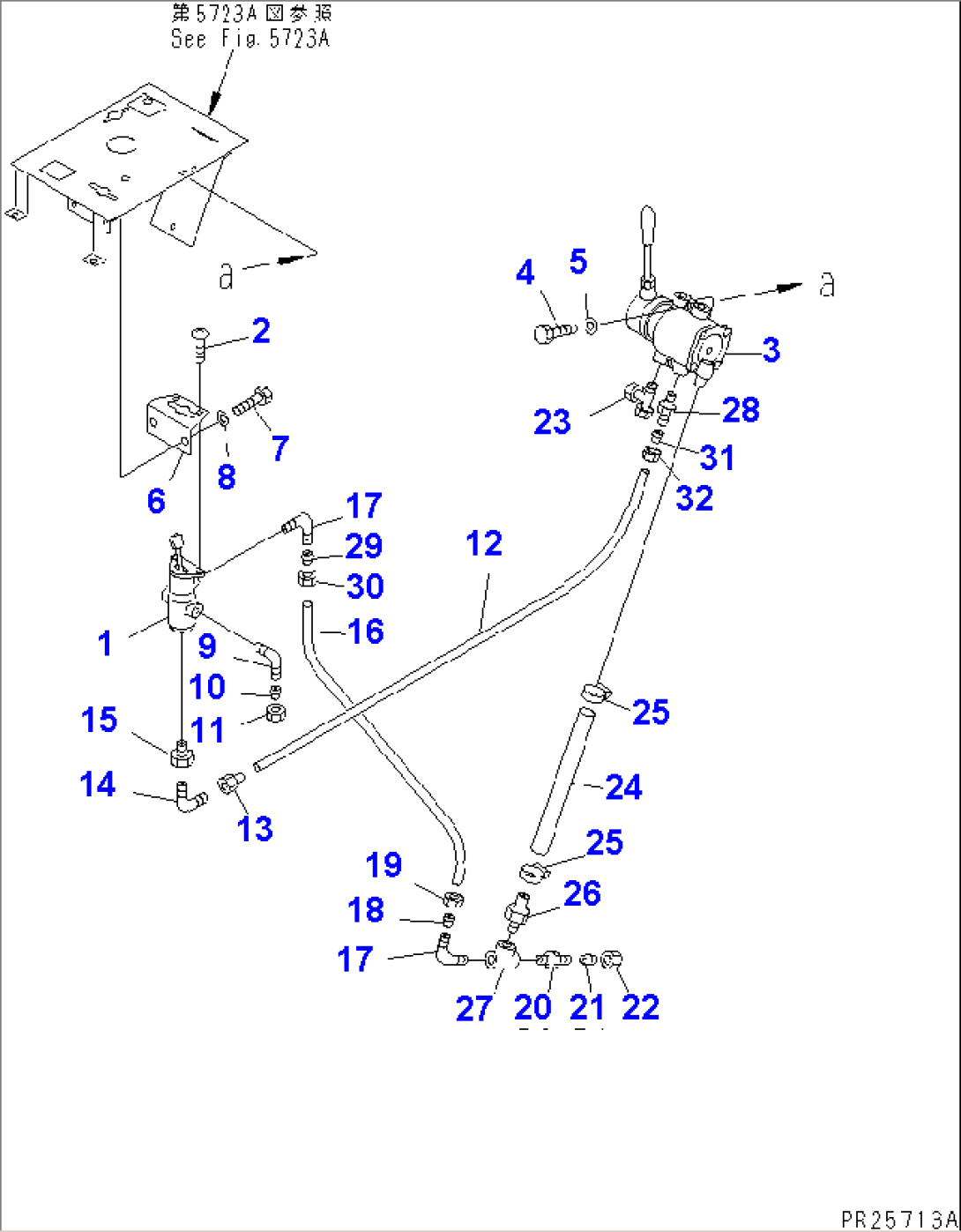

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-35-61110 | VALVE ASS'Y | 1015- | |
| 2 | 01220-40612 | SCREW | 1015- | |
| 3 | 561-87-66102 | VALVE ASS'Y | 1015- | |
| 4 | 01010-80865 | BOLT | 1015- | |
| 5 | 01643-30823 | WASHER | 1015- | |
| 6 | 569-35-62570 | PLATE | 1015- | |
| 7 | 01010-80812 | BOLT | 1015- | |
| 8 | 01643-30823 | WASHER | 1015- | |
| 9 | 07834-00613 | ELBOW | 1015- | |
| 10 | 07831-00612 | SLEEVE | 1015- | |
| 11 | 07832-00614 | NUT | 1015- | |
| 12 | 07822-00602 | TUBE | 1015- | |
| 13 | 281-35-19570 | CONNECTOR | 1015- | |
| 14 | 07323-30100 | ELBOW | 1015- | |
| 15 | 581-96-12120 | BUSHING | 1015- | |
| 16 | 07822-00402 | TUBE | 1015- | |
| 17 | 07834-00410 | ELBOW | 1015- | |
| 18 | 07831-00411 | SLEEVE | 1015- | |
| 19 | 07832-00410 | NUT | 1015- | |
| 20 | 07836-00613 | CONNECTOR | 1015- | |
| 21 | 07831-00612 | SLEEVE | 1015- | |
| 22 | 07832-00614 | NUT | 1015- | |
| 23 | 285-35-12550 | TEE | 1015- | |
| 24 | 07260-20906 | HOSE | 1015- | |
| 25 | 07281-00197 | CLAMP | 1015- | |
| 26 | 569-35-62550 | NIPPLE | 1015- | |
| 27 | 07324-10200 | TEE | 1015- | |
| 28 | 07836-00613 | CONNECTOR | 1015- | |
| 29 | 07831-00411 | SLEEVE | 1015- | |
| 30 | 07832-00410 | NUT | 1015- | |
| 31 | 07831-00612 | SLEEVE | 1015- | |
| 32 | 07832-00614 | NUT | 1015- |
