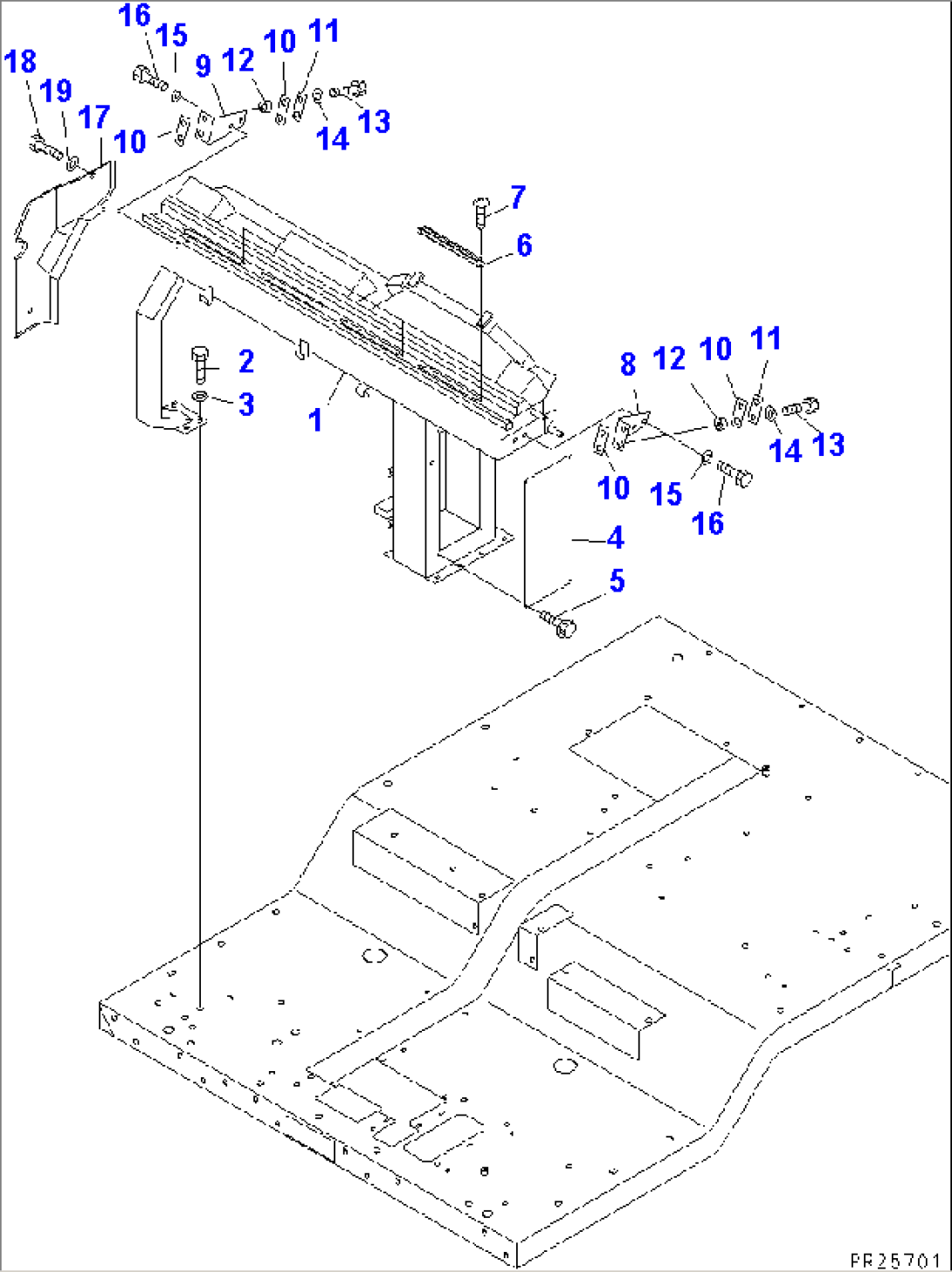

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-63113 | DASHBOARD SUB ASS'Y | 1013- | |
| 2 | 01010-81225 | BOLT | 1013- | |
| 3 | 01643-31232 | WASHER | 1013- | |
| 4 | 561-54-63231 | COVER | 1013- | |
| 5 | 01435-00612 | BOLT | 1013- | |
| 6 | 09487-30220 | NOZZLE | 1001- | |
| 7 | 01225-70412 | SCREW | 1001- | |
| 8 | 569-54-63711 | BRACKET | 1001- | |
| 9 | 569-54-63721 | BRACKET | 1001- | |
| 10 | 569-54-63470 | SEAT | 1001- | |
| 11 | 569-54-63480 | PLATE | 1001- | |
| 12 | 569-54-63490 | SPACER | 1001- | |
| 13 | 01010-81035 | BOLT | 1001- | |
| 14 | 01643-31032 | WASHER | 1001- | |
| 15 | 01643-31032 | WASHER | 1001- | |
| 16 | 01010-81025 | BOLT | 1001- | |
| 17 | 566-54-6C670 | COVER | 1013- | |
| 18 | 01010-81020 | BOLT | 1013- | |
| 19 | 01643-31032 | WASHER | 1013- |
