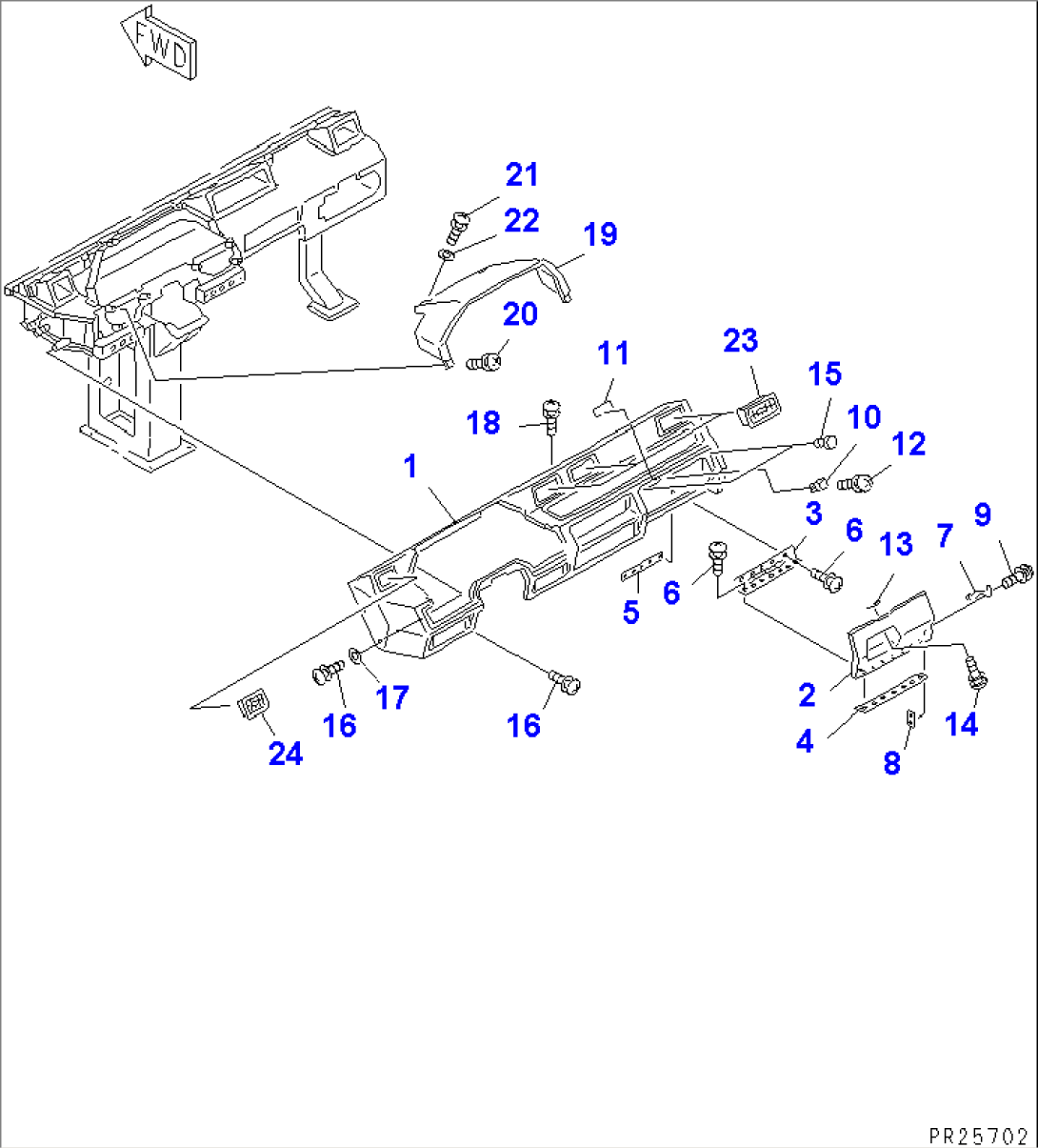

| Item | Part No. | Part Name | Qty | Serial No. |
| 569-54-65130 | COVER ASS'Y | 1013- | ||
| 1 | 569-54-63140 | COVER | 1013- | |
| 2 | 569-54-65160 | COVER | 1013- | |
| 3 | 569-54-64160 | HINGE | 1013- | |
| 4 | 569-54-64220 | PLATE | 1013- | |
| 5 | 569-54-64290 | SEAT | 1013- | |
| 6 | 01023-20308 | SCREW | 1013- | |
| 7 | 569-54-63630 | STAY | 1013- | |
| 8 | 569-54-63590 | PLATE | 1013- | |
| 9 | 01023-20608 | SCREW | 1013- | |
| 10 | 569-54-63650 | CATCHER | 1013- | |
| 11 | 569-54-63580 | SEAT | 1013- | |
| 12 | 01023-20308 | SCREW | 1013- | |
| 13 | 569-54-64311 | PLATE | 1013- | |
| 14 | 01023-20408 | SCREW | 1013- | |
| 15 | 569-54-63610 | CUSHION | 1013- | |
| 16 | 01023-20612 | SCREW | 1013- | |
| 17 | 01642-40608 | WASHER | 1013- | |
| 18 | 01023-20616 | SCREW | 1013- | |
| 19 | 569-54-63150 | HOOD | 1013- | |
| 20 | 01023-20616 | SCREW | 1013- | |
| 21 | 01023-20625 | SCREW | 1013- | |
| 22 | 01642-40608 | WASHER | 1013- | |
| 23 | 569-54-63180 | LOUVER,L | 1013- | |
| 24 | 569-54-63190 | LOUVER,S | 1013- |
