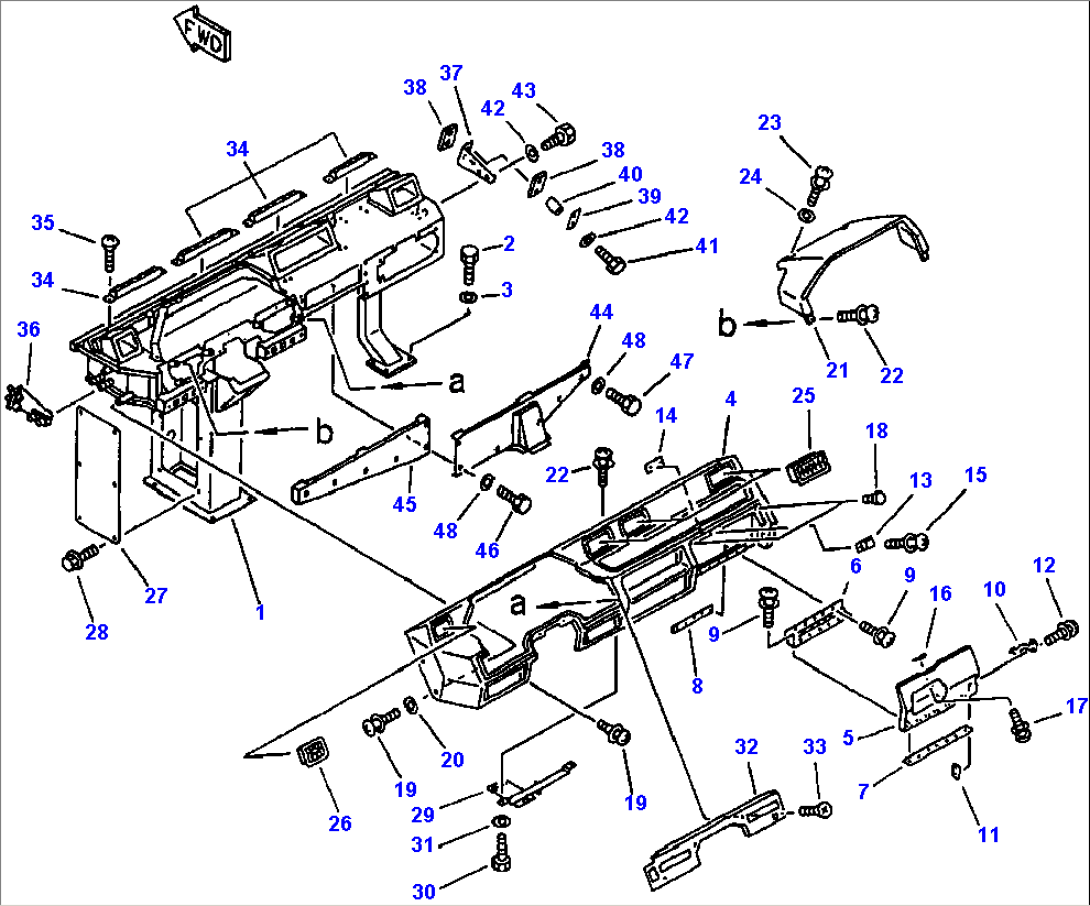

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-63112 | DASHBOARD ASSEMBLY | ||
| 2 | 01010-81225 | CAPSCREW | ||
| 3 | 01643-31232 | WASHER | ||
| 4 | 569-54-63140 | COVER, DASH (1)/(2) | ||
| 5 | 569-54-65160 | COVER, GLOVE BOX (WITHOUT PAYLOAD METER) (1) | ||
| 5 | 569-54-63160 | COVER, GLOVE BOX (WITH PAYLOAD METER) (2) | ||
| 6 | 569-54-64160 | HINGE (1)/(2) | ||
| 7 | 569-54-64220 | PLATE (1)/(2) | ||
| 8 | 569-54-64290 | SEAT (1)/(2) | ||
| 9 | 01023-20308 | SCREW (1)/(2) | ||
| 10 | 569-54-63630 | STAY (1)/(2) | ||
| 11 | 569-54-63590 | PLATE (1)/(2) | ||
| 12 | 01023-20608 | SCREW (1)/(2) | ||
| 13 | 569-54-63650 | CATCHER (1)/(2) | ||
| 14 | 569-54-63580 | SEAT (1)/(2) | ||
| 15 | 01023-20308 | SCREW (1)/(2) | ||
| 16 | 569-54-64311 | PLATE (1)/(2) | ||
| 17 | 01023-20408 | SCREW (1)/(2) | ||
| 18 | 569-54-63610 | CUSHION (1)/(2) | ||
| 19 | 01023-20612 | SCREW | ||
| 20 | 01642-40608 | WASHER | ||
| 21 | 569-54-63150 | HOOD | ||
| 22 | 01023-20616 | SCREW | ||
| 23 | 01023-20625 | SCREW | ||
| 24 | 01642-40608 | WASHER | ||
| 25 | 569-54-63180 | LOUVER | ||
| 26 | 569-54-63190 | LOUVER | ||
| 27 | 561-54-63231 | COVER | ||
| 28 | 01435-00612 | CAPSCREW | ||
| 29 | 569-54-63981 | SUPPORT | ||
| 30 | 01010-80816 | CAPSCREW | ||
| 31 | 01643-30823 | WASHER | ||
| 32 | 569-54-65681 | PLATE | ||
| 33 | 01224-70616 | SCREW | ||
| 34 | 09487-30220 | NOZZLE | ||
| 35 | 01225-70412 | SCREW | ||
| 36 | 569-54-63711 | BRACKET - L.H. | ||
| 37 | 569-54-63721 | BRACKET - R.H. | ||
| 38 | 569-54-63470 | SEAT | ||
| 39 | 569-54-63480 | PLATE | ||
| 40 | 569-54-63490 | SPACER | ||
| 41 | 01010-81035 | CAPSCREW | ||
| 42 | 01643-31032 | WASHER | ||
| 43 | 01010-81025 | CAPSCREW | ||
| 44 | 569-54-65170 | DUCT | ||
| 45 | 569-54-63891 | DUCT | ||
| 46 | 01010-80840 | CAPSCREW | ||
| 47 | 01010-80816 | CAPSCREW | ||
| 48 | 01643-30823 | WASHER | ||
| NS|50 | NOTE: (1) INCLUDED IN 569-54-65130 DASH COVER | |||
| NS|51 | ASSEMBLY (WITHOUT PAYLOAD METER). | |||
| NS|52 | (2) INCLUDED IN 569-54-63130 DASH COVER | |||
| NS|53 | ASSEMBLY (WITH PAYLOAD METER). |
