| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-54-64661 | TOE BOARD | 6001- | |
| 1 | 569-54-64630 | BOARD | 5001-5999 | |
| 2 | 01010-81020 | BOLT | 5001- | |
| 3 | 01643-31032 | WASHER | 5001- | |
| 4 | 569-54-64640 | COVER | 5680- | |
| 5 | 01010-81020 | BOLT | 5680- | |
| 6 | 01643-31032 | WASHER | 5680- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd325 6 s/n 5001 up
- Guard
- Cab interior (toe board) (r.h.) (1/3) (with out air conditioner)(#5680 )
Поиск по каталогу

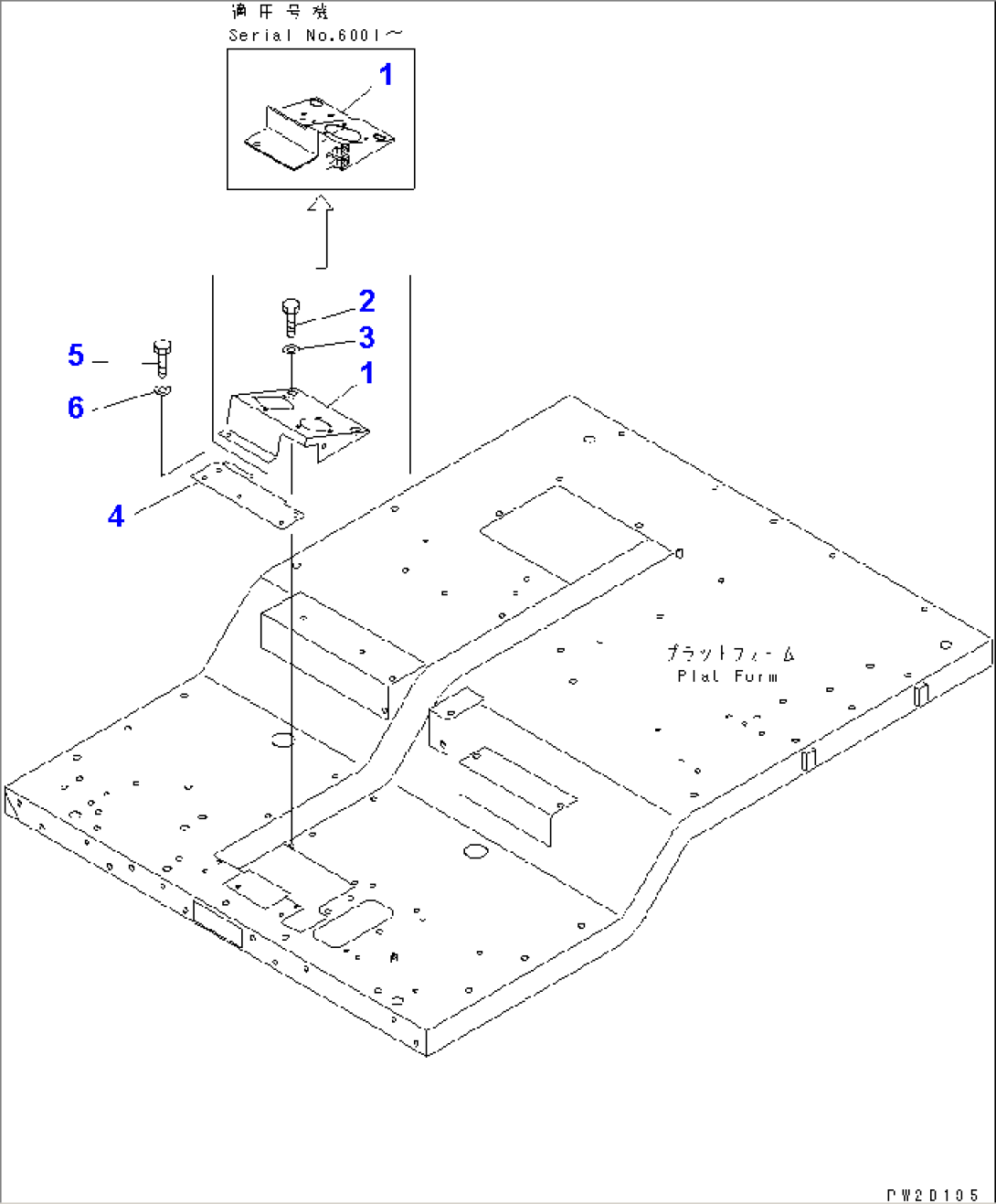

CAB INTERIOR (TOE BOARD) (R.H.) (1/3) (WITH OUT AIR CONDITIONER)(#5680-)
