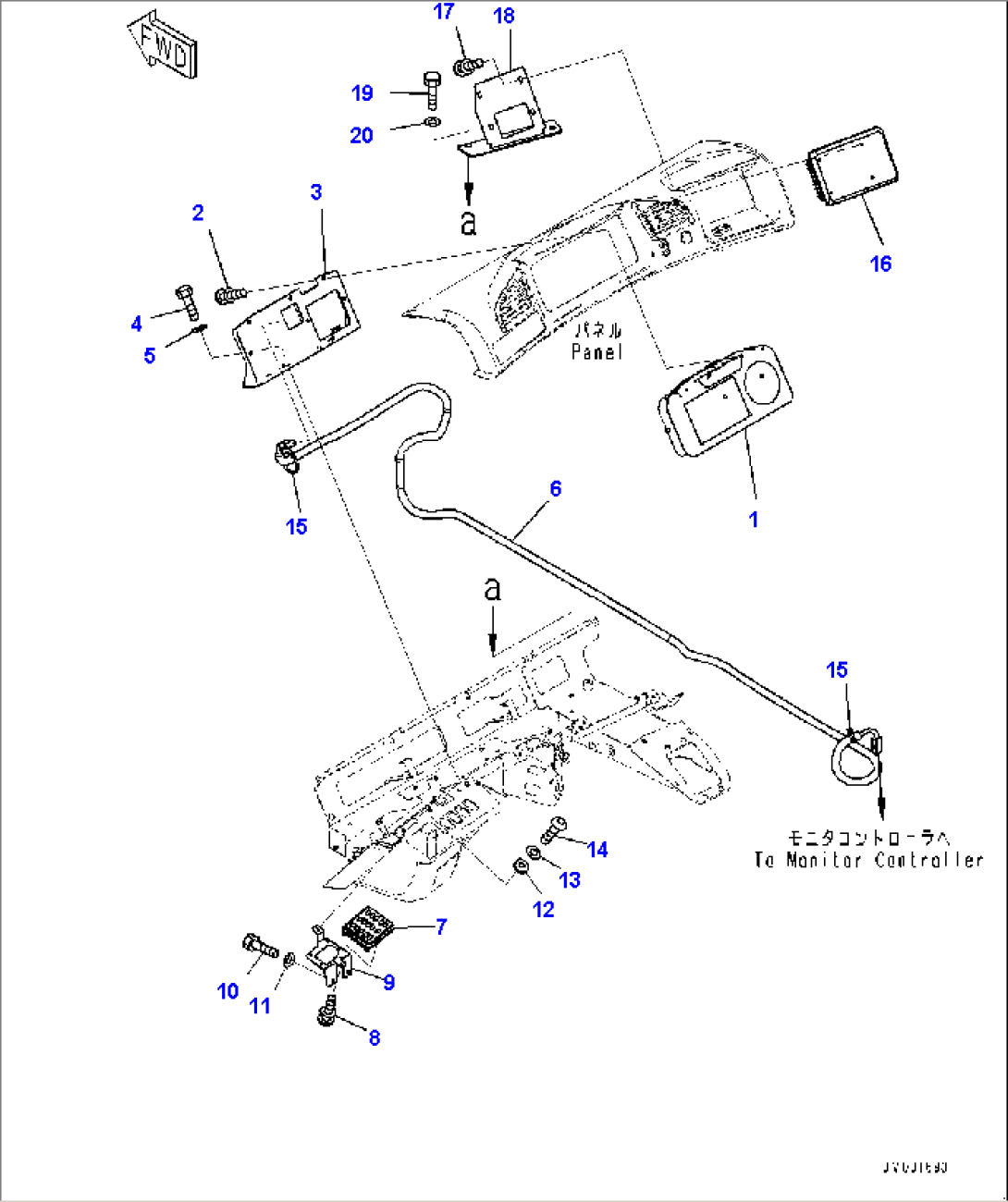

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7831-47-5000 | Monitor | 5001- | |
| 2 | 01023-70614 | Screw | 5001- | |
| 3 | 56D-54-35550 | Bracket | 5001- | |
| 4 | 01010-80616 | Bolt | 5001- | |
| 5 | 01643-30623 | Washer | 5001- | |
| 6 | 7831-47-8710 | Wiring Harness | 5001- | |
| 7 | 7831-47-7000 | Panel Assembly | 5001- | |
| 8 | 01023-70412 | Screw | 5001- | |
| 9 | 56D-06-36190 | Bracket | 5001- | |
| 10 | 01010-80616 | Bolt | 5001- | |
| 11 | 01643-30623 | Washer | 5001- | |
| 12 | 20Y-43-41290 | Collar | 5001- | |
| 13 | 01643-70623 | Washer | 5001- | |
| 14 | 01245-00616 | Screw | 5001- | |
| 15 | 08034-20823 | Band | 5001- | |
| 16 | 7831-47-6001 | Monitor, Rearview | 5108- | |
| 16 | 7831-47-6000 | Monitor, Rearview | 5001-5107 | |
| 17 | 01023-70614 | Screw | 5001- | |
| 18 | 56D-06-33420 | Bracket | 5001- | |
| 19 | 01010-80616 | Bolt | 5001- | |
| 20 | 01643-30623 | Washer | 5001- |
