| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 702-16-02290 | Lever Assembly | 22001- | |
| 2 | 01252-60512 | Bolt | 22001- | |
| 3 | 702-16-59330 | Boot | 22001- | |
| 4 | 702-16-62730 | Cover | 22001- | |
| 5 | 702-16-62740 | O-ring | 22001- | |
| 6 | 702-16-61270 | Tube | 22001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D85ex 18 s/n 22001 up
- Operator's compartment and control system
- Cab, pccs (palm command control system) lever (#22001 )
Поиск по каталогу

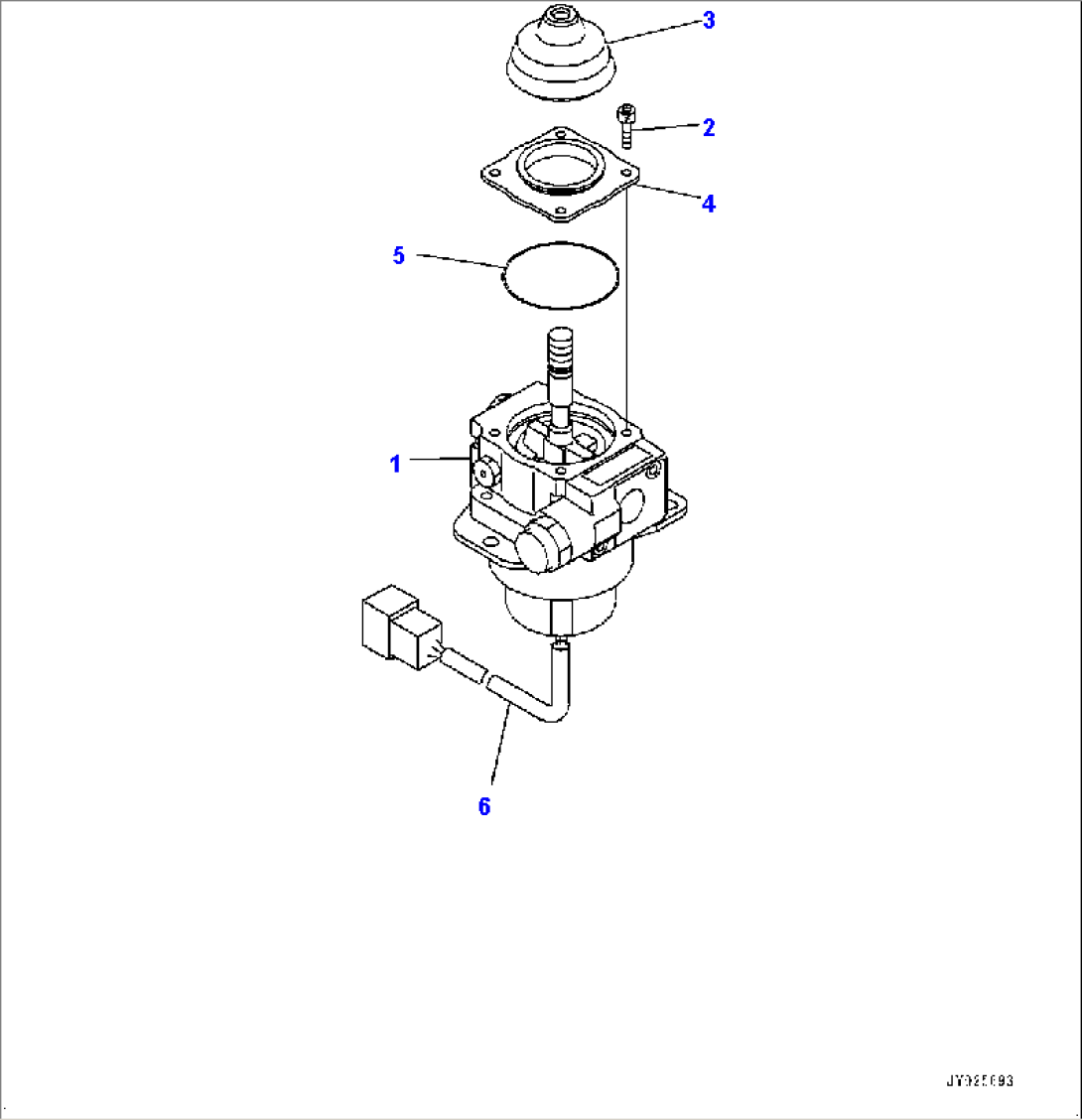

Cab, PCCS (Palm Command Control System) Lever (#22001-)
