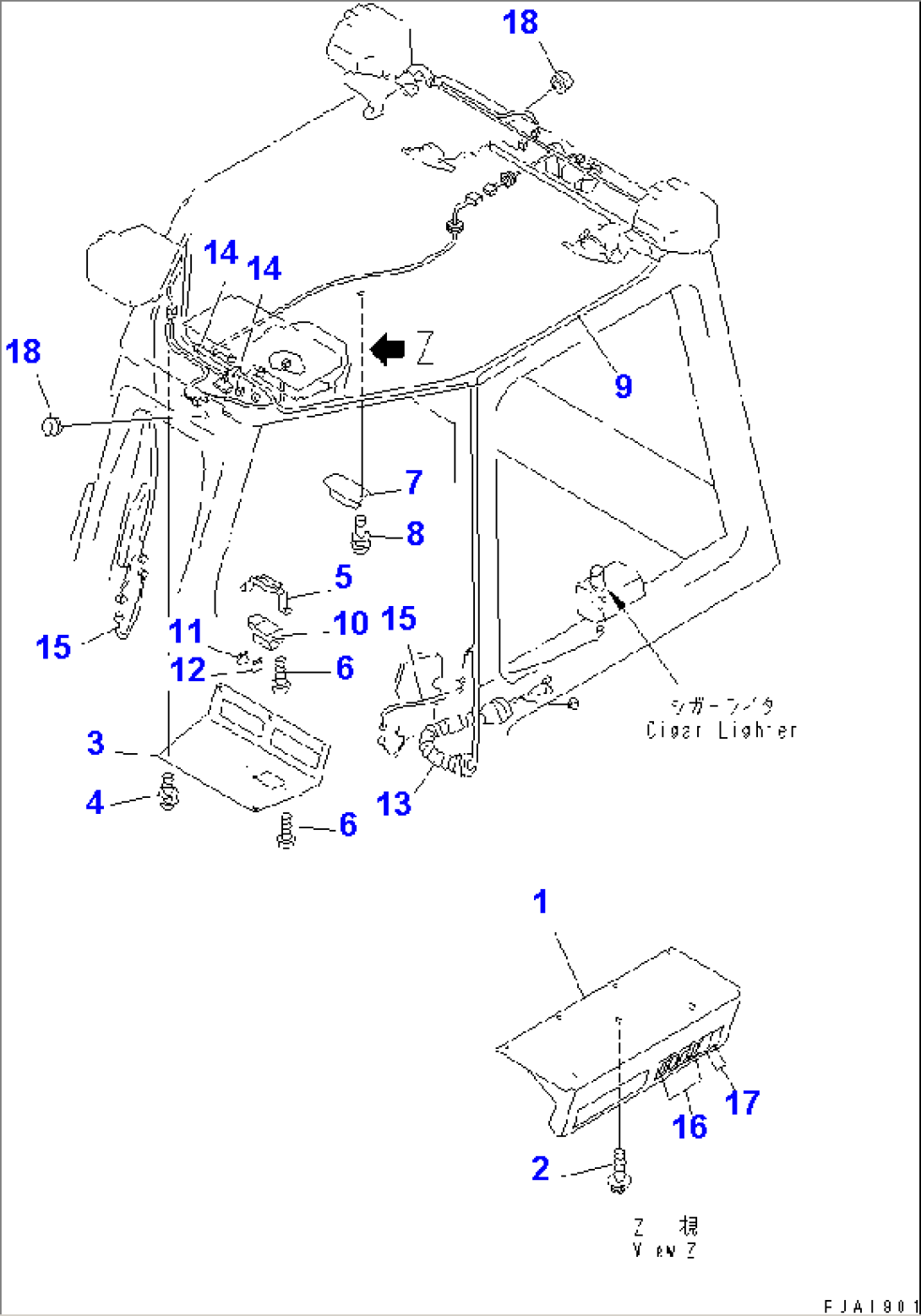

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 14X-911-4251 | BRACKET | 3001- | |
| 2 | 01435-01020 | BOLT | 3001- | |
| 3 | 14X-911-4121 | PANEL | 3001- | |
| 4 | 01023-20620 | SCREW | 3001- | |
| 5 | 14X-911-4141 | BRACKET | 3001- | |
| 6 | 01220-70516 | SCREW | 3001- | |
| 7 | 08141-02400 | LAMP | 3001- | |
| 7 | 08116-02410 | BULB, 10W | 3001- | |
| 8 | 01023-10420 | SCREW | 3001- | |
| 9 | 14X-911-4511 | WIRING HARNESS | 3001- | |
| 10 | 205-06-71480 | FUSE BOX | 3001- | |
| 11 | 283-06-16190 | FUSE, 10A | 3001- | |
| 12 | 22W-06-13160 | FUSE, 20A | 3001- | |
| 13 | 14X-911-4541 | BOOT | 3001- | |
| 14 | 14X-911-4551 | CLIP | 3001- | |
| 15 | 14X-911-4521 | WIRING HARNESS | 3001- | |
| 16 | 20T-06-71410 | SWITCH | 3001- | |
| 17 | 14X-911-4280 | COVER | 3001- | |
| 18 | 09415-01008 | CAP | 3001- |
