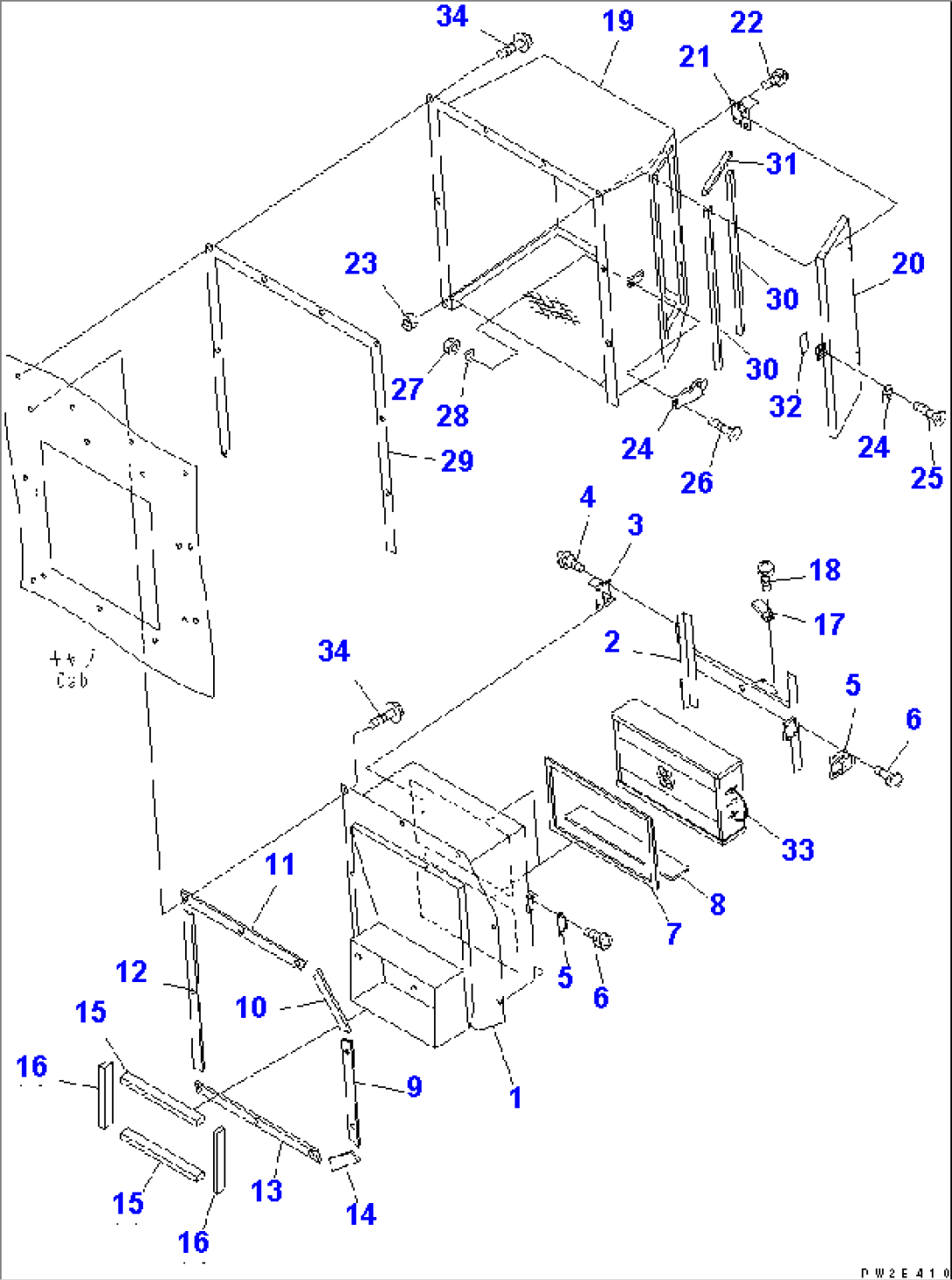

| Item | Part No. | Part Name | Qty | Serial No. |
| 56B-07-12501 | DUCT ASS'Y | 1001- | ||
| 1 | 56B-07-12511 | DUCT | 1001- | |
| 2 | 56B-07-12521 | BRACKET | 1001- | |
| 3 | 569-54-63250 | HINGE | 1001- | |
| 4 | 01023-10306 | SCREW | 1001- | |
| 5 | 569-54-63530 | CATCH | 1001- | |
| 6 | 01023-10306 | SCREW | 1001- | |
| 7 | 56B-07-12661 | SHEET | 1001- | |
| 8 | 418-07-23350 | SHEET | 1001- | |
| 9 | 56B-07-12571 | SEAL | 1001- | |
| 10 | 56B-07-12581 | SEAL | 1001- | |
| 11 | 56B-07-12591 | SEAL | 1001- | |
| 12 | 56B-07-12611 | SEAL | 1001- | |
| 13 | 56B-07-12621 | SEAL | 1001- | |
| 14 | 56B-07-12631 | SEAL | 1001- | |
| 15 | 567-07-71C10 | URETHANE | 1001- | |
| 16 | 567-07-71C20 | URETHANE | 1001- | |
| 17 | 569-54-63260 | CATCHER | 1001- | |
| 18 | 01023-10306 | SCREW | 1001- | |
| 56B-07-12601 | COVER ASS'Y | 1001- | ||
| 19 | 56B-07-12531 | COVER | 1001- | |
| 20 | 56B-07-12671 | COVER | 1001- | |
| 21 | 56B-07-12540 | HINGE | 1001- | |
| 22 | 01023-10310 | SCREW | 1001- | |
| 23 | 01580-60302 | NUT | 1001- | |
| 24 | 56B-07-12550 | CATCH | 1001- | |
| 25 | 01236-40306 | SCREW | 1001- | |
| 26 | 01236-40312 | SCREW | 1001- | |
| 27 | 01580-60302 | NUT | 1001- | |
| 28 | 01640-20305 | WASHER | 1001- | |
| 29 | 56B-07-12561 | RUBBER | 1001- | |
| 30 | 56B-07-12640 | SEAL | 1001- | |
| 31 | 56B-07-12650 | SEAL | 1001- | |
| 32 | 421-09-21420 | SHEET | 1001- | |
| 33 | 209-979-6260 | FILTER | 1001- | |
| 34 | 01435-00816 | BOLT | 1001- |
