| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-54-16701 | BAR | 7001- | |
| 2 | 01435-01020 | BOLT | 7001- | |
| 3 | 08210-01801 | SPIRAL TUBE | 7001- | |
| 4 | 08034-00823 | BAND | 7001- | |
| 5 | 56B-54-16780 | BRACKET | 7001- | |
| 6 | 01010-81230 | BOLT | 7001- | |
| 7 | 01643-31232 | WASHER | 7001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hm350 2r s/n 7001 7029 (w/o egr)
- Operator's compartment and control system
- Cab tilt cylinder and related parts (cylinder less spec.)(#7001 )
Поиск по каталогу

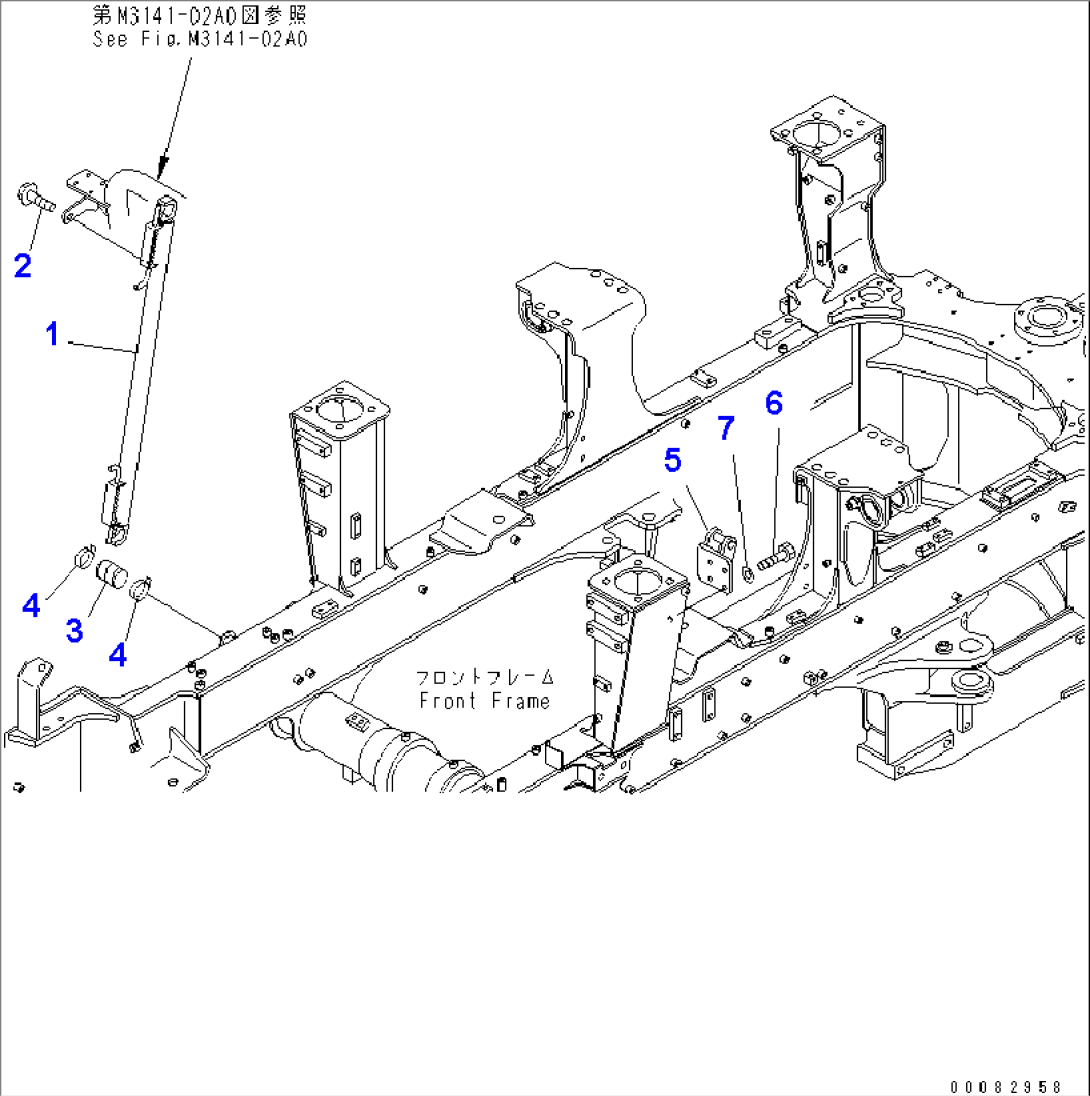

CAB TILT CYLINDER AND RELATED PARTS (CYLINDER LESS SPEC.)(#7001-)
