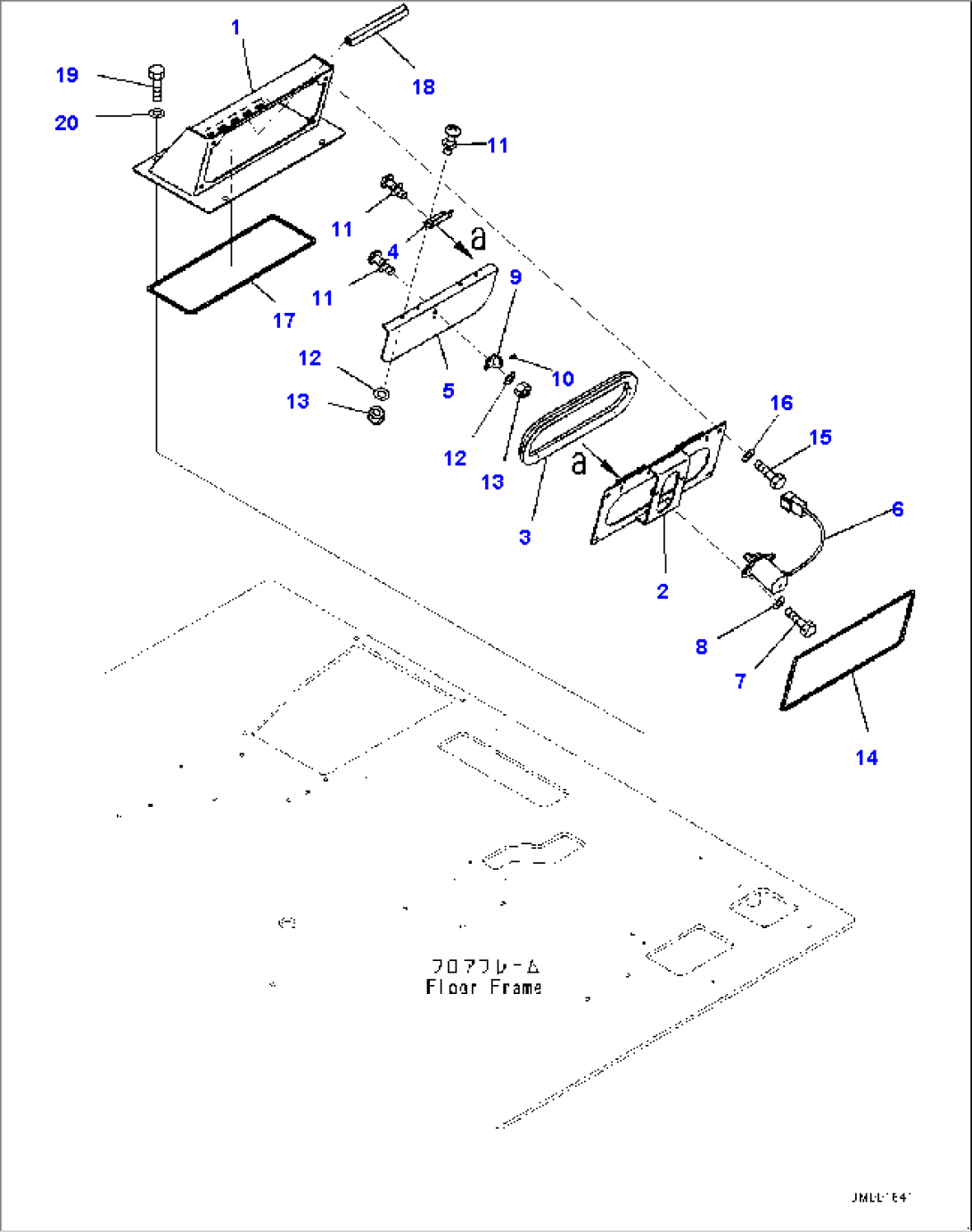

| Item | Part No. | Part Name | Qty | Serial No. |
| 56D-54-34500 | Ventilator Assembly | 5001- | ||
| 1 | 56D-54-34510 | Cover Assembly | 5001- | |
| 2 | 56D-54-34520 | Bracket | 5001- | |
| 3 | 56D-54-34610 | Seal | 5001- | |
| 4 | 569-54-8B100 | Hinge | 5001- | |
| 5 | 56D-54-34530 | Plate | 5001- | |
| 6 | 56D-54-36410 | Solenoid Assembly | 5001- | |
| 7 | 01010-80616 | Bolt | 5001- | |
| 8 | 01643-30623 | Washer | 5001- | |
| 9 | 56D-54-34540 | Bracket | 5001- | |
| 10 | 04025-00312 | Pin, Spring | 5001- | |
| 11 | 01023-10410 | Screw | 5001- | |
| 12 | 01640-20408 | Washer | 5001- | |
| 13 | 01580-60403 | Nut | 5001- | |
| 14 | 56D-54-34560 | Sheet | 5001- | |
| 15 | 01010-80616 | Bolt | 5001- | |
| 16 | 01643-30623 | Washer | 5001- | |
| 17 | 56D-54-34570 | Sheet | 5001- | |
| 18 | 56D-54-34620 | Seal | 5001- | |
| 19 | 01010-80816 | Bolt | 5001- | |
| 20 | 01643-30823 | Washer | 5001- |
